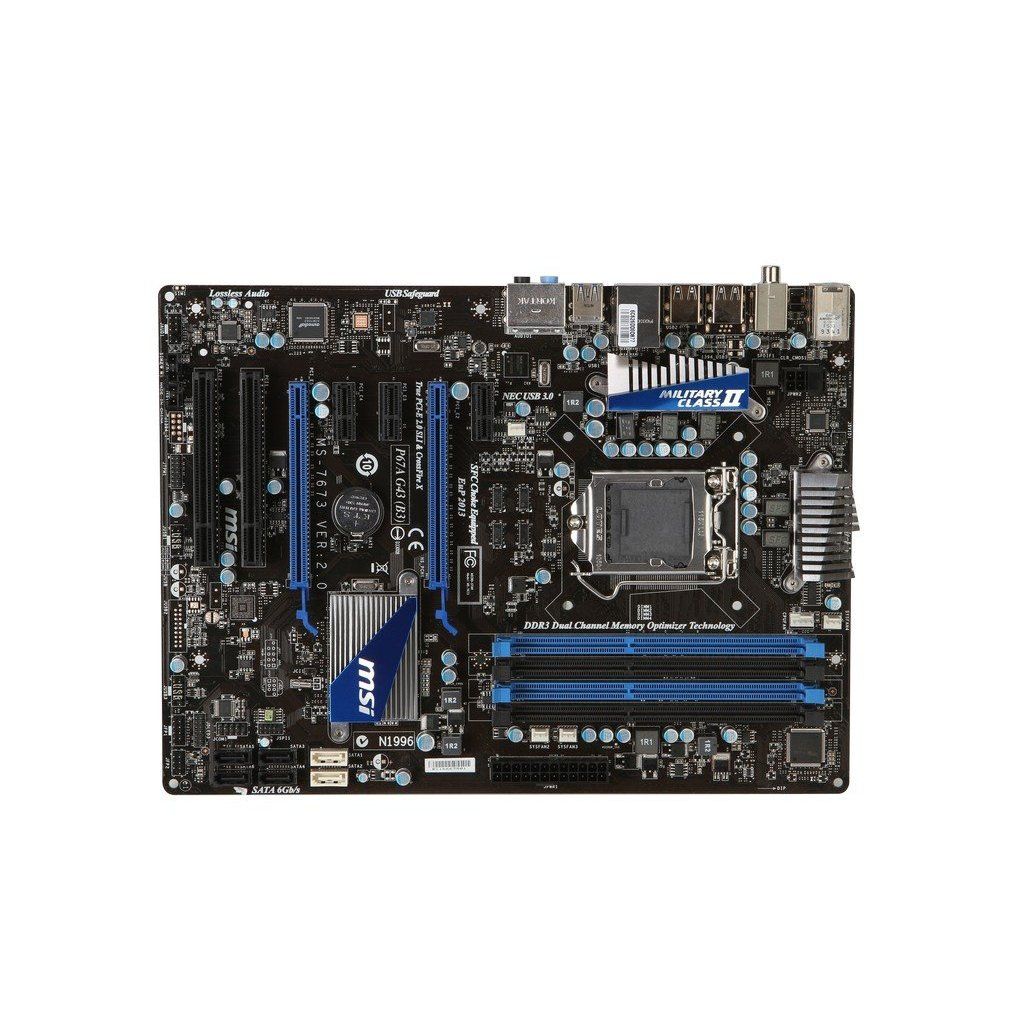

MSI P67A-G43(B3) motherboard Intel® P67 LGA 1155 (Socket H2) ATX
Brand: MSI · SKU: P67A-G43(B3) · MPN: P67A-G43(B3) · Category: Components
MSI P67A-G43(B3), Intel, LGA 1155 (Socket H2), Intel® Core™ i5, Intel® Core™ i7, 32 GB, Dual-channel, 1.5 V. MSI P67A-G43(B3) motherboard Intel® P67 LGA 1155 (Socket H2) ATX (part number P67A-G43(B3)) is an enterprise components product available from Server Tech Central. Key specifications include depth 305 mm, width 225 mm, pci slots 2, audio chip Realtek ALC892, raid levels 0, 1, 5, 10, component for PC, microphone in Yes, tpm connector Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 305 mm |
|---|---|
| Width | 225 mm |
| PCI slots | 2 |
| Audio chip | Realtek ALC892 |
| RAID levels | 0, 1, 5, 10 |
| Component for | PC |
| Microphone in | Yes |
| TPM connector | Yes |
| LAN controller | Realtek RTL8111E |
| Memory voltage | 1.5 V |
| CD/AUX audio in | Yes |
| Memory channels | Dual-channel |
| S/PDIF out port | Yes |
| Drivers included | Yes |
| Processor socket | LGA 1155 (Socket H2) |
| CPU fan connector | Yes |
| Headphone outputs | 5 |
| Power source type | ATX |
| ECC сompatibility | Non-ECC |
| USB 2.0 connectors | 2 |
| Motherboard chipset | Intel® P67 |
| PS/2 ports quantity | 1 |
| PCI Express x1 slots | 3 |
| S/PDIF out connector | Yes |
| Warranty | 3-Year Warranty |
| Dimensions | 225 mm x 305 mm |
Product Description
Military Class II Concept The perfect trinity of quality, stability and efficiency all exist at one mainboard to meet end user expectations. The MSI Military Class II series products provide the long lifespan, unparalleled quality, extreme performance and ultimate efficiency. SFC SFC(Super Ferrite Choke).The super Ferrite Chokes use a Ferrite core that is Super-Permeable. Compare with traditional choke, the Super Ferrite Chokes run at a 35 degree Celsius lower temperature. The lower working temperature will enhance mainboard stability. Solid CAP - 10 years long lifespan For providing the highest quality products, we built-in Solid CAP in the entire Military Class series. This not only makes bursting capacitors a non-issue but also ensures a dramatically extended lifetime and ultra-low ESR. OC Genie II Just press the OC Genie button or enable OC Genie II function in BIOS menu, the CPU performance (P67 series) or the 3D performance of iGPU (H67/H61 series) will be highly improved. Whether users want to watch a high bit-rate HD movie or go online gaming, both can be enjoyed with image performance that is smoother and lag-free! Features - Exclusive OC Genie detect hardware configuration - Intelligently auto set clock/voltage of CPU and memory or iGPU - Increase overall system performance in 1 second B3 Stepping Ready To fix Intel’s 6 Series chipset design error, the SATA problems in its 6 Series chipset, MSI implements the latest Intel B3 Stepping 6 Series chipset on its P67/H67 mainboards for fixing SATA problems in the Intel Series 6 chipsets. Consumers can now identify the latest MSI P67/H67 mainboards equipped with the Intel B3 Stepping chipset with the MSI B3 Stepping Ready logo. This provides a more confident way to identify your next-generation P67/H67 mainboard. Click BIOS - Universal Extensible Firmware Interface - User-friendly mouse-controlled BIOS menu - Pre-OS Applications(HDD Backup, Game, Memory test) - 15 languages support THX TruStudio PRO THX is a trade mark of a high-end audio/visual reproduction standard for movies, home theaters, computer speakers and other audio devices. THX Certified Audio products are designed to let users experience movies & videos as live show. The true sound effect can make high definition video more powerful. Features - A high-fidelity sound reproduction standard - Accurately reproduce the fullest audio experience of movie, music and game soundtracks SATA 6Gb/s SATA 6Gb/s provides double the bandwidth of traditional SATA 3Gb/s, and increases the data transfer rate between your mainboard and internal storage devices, such as 7200RPM HDDs, 10000RPM HDDs and SSDs. It’s also the current trend for upcoming high-speed internal storage devices to to break the existing bottleneck of a PC’s performance. Features - 2X Faster Than SATA 3Gb/s - Up to 6Gb/s Data Transfer Bandwidth - Unleash True Performance of New HDDs/SSDs M-Flash Compared to common mainboard which need extra BIOS chips, MSI’s M-Flash has a double advantage which doesn’t need extra components and secondly, all your BIOS data will be saved in the USB drive. The stored data does not only have backup and upgrade function, moreover it can also be seen as a portable BIOS chip which is actually able to boot up your PC. Features - Backup/Restore Your BIOS to/from Any USB Flash Disk - Avoid Unnecessary Repair Due to Accident Failures During The Upgrading Process - Earn more BIOS Lifespan by Reducing Unnecessary Rewriting Process APS (Active Phase Switching) Active Phase Switching, APS, technology is an intelligent design that helps to save energy on MSI’s mainboards. The underlying idea is to switch off the power supply as soon as no electricity is needed, and when the system needs more resources again, APS will automatically adjust electricity supply accordingly. APS will automatically detect your processor’s loading at any given time and save energy accordingly. This is only possible by means of a very advanced power controlling technology. Other than software-based solutions, APS technology stands out from MSI's own research. The specially developed IC chip can operate automatically depending on the demands of the power supply, which is to reduce the total power usage. USB 3.0 Compared to the 480Mbps provided by traditional USB 2.0, the all-new USB 3.0's 5Gb/s offers 10 times the transfer bandwidth, so transferring a Blu-ray movie takes less than one minute. MSI also has implemented a front panel USB 3.0 port, making the use of an external USB 3.0 device even more convenient. Features - 10X Faster Than USB 2.0 - Up to 5Gb/s Data Transfer Bandwidth - Boost Transfer Rate Between Your PC and External Storage Devices Winki 3 Winki 3 is a free Linux-based O/S which is based on the Linux core. With an ultra-fast booting speed and a multi-language interface, the built-in Winki 3 provides an easy-to-use internet environment that includes the most popular functions such as internet surfing, web mail, instant messaging, pictur
Key Features
MSI P67A-G43(B3). Processor manufacturer: Intel, Processor socket: LGA 1155 (Socket H2), Compatible processor series: Intel® Core™ i5, Intel® Core™ i7. Maximum internal memory: 32 GB, Memory channels: Dual-channel, Memory voltage: 1.5 V. RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111E. Component for: PC, Motherboard form factor: ATX, Motherboard chipset: Intel® P67
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MSI P67A-G43(B3) motherboard Intel® P67 LGA 1155 (Socket H2) ATX (P67A-G43(B3)) is 100% genuine MSI hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MSI P67A-G43(B3) motherboard Intel® P67 LGA 1155 (Socket H2) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MSI P67A-G43(B3) motherboard Intel® P67 LGA 1155 (Socket H2) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the P67A-G43(B3).
