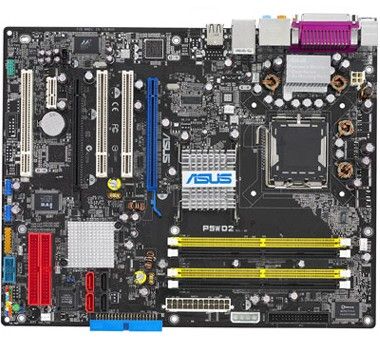

ASUS P5WD2 AiLife Series Motherboard LGA 775 (Socket T) ATX

Specifications

Product Description

Intel LGA775 Pentium 4 CPU This motherboard supports the latest Pentium 4 CPU from Intel in LGA775 package. With 1066/ 800/ 533MHz FSB, Hyper-Threading Technology and core-speeds up to 3.8GHz and beyond, Intel's LGA775 Pentium 4 is one of the fastest desktop processors to date. Dual-Core CPU Enjoy the extraordinary CPU power from the latest dual-core CPU. The advanced processing technology contains two physical CPU cores with individually dedicated L2 caches to satisfy the rising demand for more powerful processing capability. Intel 955X chipset The Intel 955X is the latest chipset designed to support maximum 8GB dual-channel DDR2 667/533 architecture, 1066/800 FSB (front-side-bus), PCI Express x16 graphics and dual-core CPU. Easily build an entertainment PC or create a multimedia environment with its exceptionally high bandwidth. Together with the 4 Serial ATA ports enabled through the SATA 3Gb/s RAID controller integrated in the ICH7R Southbridge, the Intel 955X satisfies multi-task processing and data security. Intel® MPT (Intel® Memory Pipeline Technology) The Intel® Memory Pipeline Technology (Intel MPT) delivers additional system-level performance by optimizing memory access between CPU and system memory, and allows increased performance at standard operating specifications. Native DDR2 800 Support To attain top performance, ASUS engineers successfully unleashed the true potential of DDR2 memory. Native DDR2 800 maximizes system performance by eliminating the bottleneck when overclocking both the CPU and memory, providing great performance for 3D graphics and other memory demanding applications. Universal PCI-E Slot The Universal PCI Express technology offers utilization flexibility of the Southbridge PCI Express interface. It enables users to plug in an additional PCI Express graphics card to set up a dual graphics card platform on a single motherboard. ASUS' own smart quick switch further detects how users installed their PCI Express devices, and intelligently reroutes the PCI Express lanes for optimized bandwidth allocation. ASUS Hyper Path3 Data transfers within the system are made possible by various mechanisms that synchronize the sending and receiving of commends among components. Unfortunately, these mechanisms cause data transfer delays known as latency time. This unique feature significantly shortens latency time during data transfers, allowing users to experience the real power of their computers. Fanless Design Cooling fans, though a popular thermal solution, also come with noise and malfunction likelihood. ASUS Motherboard's fanless concept is specifically created to provide a cool environment without all the baggage. ASUS has devoted special efforts to address the thermal issues across the motherboard, and most notably the areas that reside the CPU, power, Northbridge and Southbridge. The heat sinks and strategic board layout are tailor made to dissipate heat in the most efficient manner. With the addition of Stack Cool 2, users can even overclock without a noisy, bulky fan. AI NOS™ Inject "nitrous oxide" into your CPU! The patented AI NOS™ (Non-delay Overclocking System) technology intelligently detects system load and automatically boosts performance for the most demanding tasks. Unlike other dynamic overclocking techniques, AI NOS™ reacts much faster to satisfy your unending need for speeds PEG Link This latest technology, PEG (PCI Express Graphics) Link Mode, is a unique feature that enables users to boost graphics card performance for superior video quality. PEG Link allows users to raise GPU and VGA memory throughput via the motherboard BIOS the same way system bus and memory bus are tweaked. PEG Link Mode enables powerful video performance on DX8 and DX9 applications. ASUS engineers carefully fine-tuned the parameters for every single PCI-Express card to provide system stability during high-speed graphics operation. ASUS CPU Lock Free The P5WD2 now offers the CPU Lock Free feature, which allows you to adjust CPU multiplier to 14x. The reduction of multiplier value provides more flexibility for increasing external FSB frequency to raise memory bus bandwidth. CPU Lock Free boosts overall system performance by making synchronous modification possible. Enjoy better performance at the same CPU operation speed and improve your system without pushing the CPU to the limit. Serial ATA 3Gb/s The motherboard supports the next-generation hard drives based on the Serial ATA (SATA) 3Gb/s storage specification, delivering enhanced scalability and doubling the bus bandwidth for high-speed data retrieval and saves. PCI Express Architecture PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better than AGP 8X in applications such as 3D gaming. PCI Express x1 also outperforms PCI interface with its exceptional high bandwidth up to 500MB/s. The high speed PCI Exp

Key Features

ASUS P5WD2 AiLife Series Motherboard. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T), Compatible processor series: Intel® Pentium® D. Maximum internal memory: 8 GB. RAID levels: 0, 1, 10. Networking features: Marvell 88E8001 Gigabit LAN Controller. Motherboard form factor: ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC882
