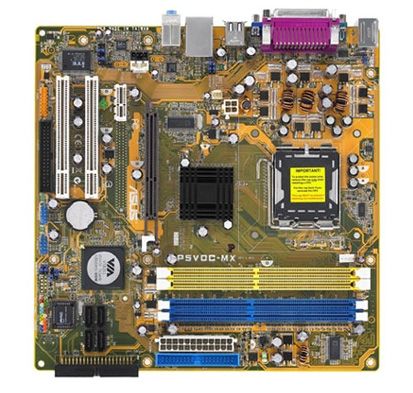

ASUS P5VDC-MX LGA775 Pentium D/Pentium 4/Celeron VIA P4M800 Pro LGA 775 (Socket T) micro ATX
Brand: ASUS · SKU: P5VDC-MX/C · MPN: P5VDC-MX/C · Category: Components
ASUS P5VDC-MX LGA775 Pentium D/Pentium 4/Celeron, Intel, LGA 775 (Socket T), 64 MB, UniChrome Pro, Realtek RTL8201CL, 10/100Mb Ethernet. ASUS P5VDC-MX LGA775 Pentium D/Pentium 4/Celeron VIA P4M800 Pro LGA 775 (Socket T) micro ATX (part number P5VDC-MX/C) is an enterprise components product available from Server Tech Central. Key specifications include depth 245 mm, width 245 mm, audio chip Realtek ALC653, graphics card UniChrome Pro, microphone in Yes, lan controller Realtek RTL8201CL, cd/aux audio in Yes, expansion slots 1 x AGP8X/4X (1.5V) 1 x PCI Express x1 2 x PCI, PCI 2.2. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 245 mm |
|---|---|
| Width | 245 mm |
| Audio chip | Realtek ALC653 |
| Graphics card | UniChrome Pro |
| Microphone in | Yes |
| LAN controller | Realtek RTL8201CL |
| CD/AUX audio in | Yes |
| Expansion slots | 1 x AGP8X/4X (1.5V) 1 x PCI Express x1 2 x PCI, PCI 2.2 |
| Bundled software | ASUS PC Probe ASUS LiveUpdate Utility Anti-virus |
| Processor socket | LGA 775 (Socket T) |
| Power source type | ATX |
| USB 2.0 connectors | 2 |
| GAME/MIDI connector | Yes |
| Motherboard chipset | VIA P4M800 Pro |
| Networking features | 10/100Mb Ethernet |
| PS/2 ports quantity | 2 |
| S/PDIF out connector | Yes |
| Audio output channels | 6.1 channels |
| Serial ports quantity | 1 |
| Number of memory slots | 4 |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 4 |
| Motherboard form factor | micro ATX |
| Parallel ports quantity | 1 |
| Warranty | 3-Year Warranty |
| Dimensions | 245 mm x 245 mm |
Product Description
With the VIA P4M800 PRO chipset, the ASUS P5VDC-MX supports DDR and DDR2 memory, and Intel' s dual-core CPU for fast multi-tasking. Combined with the VT8251 Southbridge that provides four Serial ATA II ports with various RAID options and PCI Express interface, this motherboard is an excellent foundation for a powerful desktop. LGA775 Intel® Core™2 Processor Ready This motherboard supports the latest Intel® Core™2 processors in LGA775 package. With new Intel® Core™ microarchitecture technology and 1066 / 800 MHz FSB, Intel® Core™2 processor is one of the most powerful and energy efficient CPU in the world. Only PCB R2.0(or later version) supports Intel® Core™2 processor Supports Intel® Dual/Single-Core 65nm Processors This motherboard support IntelR 65nm PentiumR D/ IntelR PentiumR 4/ CeleronR processors. ASUS motherboard is the ideal solution to enhance the performance of new generation processors. VIA P4M800 PRO chipset With the VIA P4M800 PRO chipset, the ASUS P5VDC-MX supports DDR and DDR2 memory, and Intel' s dual-core CPU for fast multi-tasking. Combined with the VT8251 Southbridge that provides four Serial ATA II ports with various RAID options and PCI Express interface, this motherboard is an excellent foundation for a powerful desktop. Powerful Integrated Graphics The P5VDC-MX delivers powerful integrated 2D and 3D graphics performance for functionality and value. DDR & DDR2 Combo design This motherboard supports 2 DDR and 2 DDR2 DIMM slots to provide ultimate flexibility for system upgrade. Serial ATA 3Gb/s The P5VDC-MX supports the next-generation hard drives based on the Serial ATA (SATA) 3Gb/s storage specification, delivering enhanced scalability and doubling the bus bandwidth for high-speed data retrieval and saves. RAID function The VIA VT8251 south bridge enables users to build Maximum 4 SATA I/II hard disk as a RAID0, 1, 0+1, 5 and JBOD array. And the graphical user interface provides an easy way to configure and manage disk drives or disk arrays connected. PCI Express Architecture PCI Express is the latest I/O interconnect technology that will replace the existing PCI interface. PCI Express x1 also outperforms PCI interface with its exceptional high bandwidth up to 500MB/s. The high speed PCI Express interface creates new usages on desktop PCs e.g., Gigabit LAN, 1394b, and high-speed RAID systems. 10/100 Mbps LAN Supports Easy connectivity to your network or broadband connection with onboard LAN port, lets you take gaming online without buying expensive additional LAN cards. ASUS Q-Fan Technology ASUS Q-Fan technology intelligently adjusts fan speeds according to system loading to ensure quiet, cool and efficient operation. Max. 8 USB 2.0 ports supports USB 2.0 is the latest connectivity standard for next generation components and peripherals. Backwards compatible with current USB 1.1 peripherals, USB 2.0 delivers transfer speeds up to 40 times faster at 480Mb/s, for easy connectivity and ultra-fast data transfers. ASUS CrashFree BIOS2 The CrashFree BIOS2 feature now includes the BIOS auto-recovery function in a support CD. Users can reboot their system through the support CD when a bootable disk is not available, and go through the simple BIOS auto-recovery process. ASUS motherboards now enable users to enjoy this protection feature without the need to pay for an optional ROM.
Key Features
ASUS P5VDC-MX LGA775 Pentium D/Pentium 4/Celeron. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T). Maximum graphics card memory: 64 MB, Graphics card: UniChrome Pro. LAN controller: Realtek RTL8201CL, Networking features: 10/100Mb Ethernet. Motherboard form factor: micro ATX, Motherboard chipset: VIA P4M800 Pro, Audio output channels: 6.1 channels. Width: 245 mm, Depth: 245 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P5VDC-MX LGA775 Pentium D/Pentium 4/Celeron VIA P4M800 Pro LGA 775 (Socket T) micro ATX (P5VDC-MX/C) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P5VDC-MX LGA775 Pentium D/Pentium 4/Celeron VIA P4M800 Pro LGA 775 (Socket T) micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P5VDC-MX LGA775 Pentium D/Pentium 4/Celeron VIA P4M800 Pro LGA 775 (Socket T) micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the P5VDC-MX/C.
