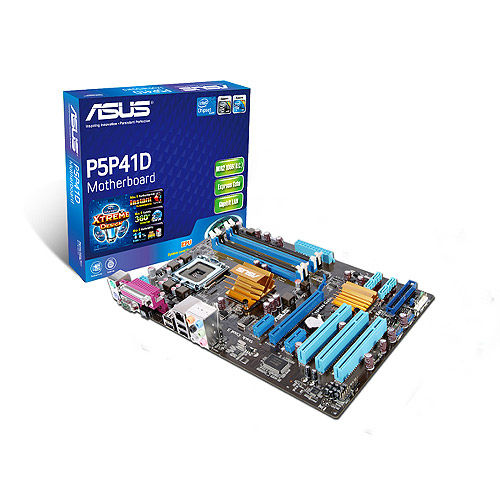

ASUS P5P41D motherboard LGA 775 (Socket T) ATX
Brand: ASUS · SKU: P5P41D · MPN: P5P41D · Category: Components
ASUS P5P41D, Intel, LGA 775 (Socket T), Intel® Celeron®, Intel® Celeron® Dual-Core, Intel® Pentium® Dual-Core, 8 GB, Non-ECC, ATX. ASUS P5P41D motherboard LGA 775 (Socket T) ATX (part number P5P41D) is an enterprise components product available from Server Tech Central. Key specifications include depth 208 mm, width 305 mm, pci slots 3, audio chip Realtek ALC887, certification RoHS, microphone in Yes, s/pdif in port Yes, bios memory size 64 Mbit. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 208 mm |
|---|---|
| Width | 305 mm |
| PCI slots | 3 |
| Audio chip | Realtek ALC887 |
| Certification | RoHS |
| Microphone in | Yes |
| S/PDIF in port | Yes |
| BIOS memory size | 64 Mbit |
| Drivers included | Yes |
| Processor socket | LGA 775 (Socket T) |
| Special features | CrashFree BIOS 3 AI NET2 Q-Fan EZ Flash 2 MyLogo 2 Turbo Key Express Gate EPU 4 Engine |
| CPU fan connector | Yes |
| Headphone outputs | 8 |
| Power source type | ATX |
| COM ports quantity | 1 |
| ECC сompatibility | Non-ECC |
| USB 2.0 connectors | 2 |
| PS/2 ports quantity | 2 |
| PCI Express x1 slots | 2 |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 1 |
| Number of memory slots | 4 |
| Processor manufacturer | Intel |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 208 mm |
Product Description
Intel® Core™2 Extreme / Core™2 Quad / Core™2 Duo CPU support This motherboard supports Intel® LGA775 Core™ 2 Extreme / Core2 Quad/ Core2 Duo processors, which are excellent for multitasking, multimedia, and enthusiastic gamers with 1333/ 1066/ 800 MHz FSB. This motherboard also supports Intel® CPUs in the 45nm manufacturing process. Intel® G41 Chipset The Intel® G41 Express Chipset is designed to support dual-channel DDR2 1066 (overclocking)/800/667 architecture, 1333/1066/800 Front Side Bus (FSB), PCIe 1.1, and mutli-core CPUs. It especially includes Intel® Fast memory bandwidth and reduces the latency of the memory accesses. DDR2 1066 (O.C.)/800/667 support This motherboard supports DDR2 memory that features data transfer rates of 1066 (O.C.)/ 800/ 667 MHz providing great performance for 3D graphics and other memory-demanding applications. Gigabit LAN solution The onboard LAN controller is a highly integrated Gb LAN controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems. High Definition Audio The onboard 8-channel ALC887 High Definition Audio CODEC enables high-quality audio that automatically detects peripherals plugged into the audio I/O jacks. ALC887 also supports the Windows® Vista Premium OS. Serial ATA 3Gb/s technology This motherboard supports hard drives based on the Serial ATA (SATA) 3Gb/s storage specifications, delivering enhanced scalability and doubling the bus bandwidth for high-speed data saving and retrieval. ASUS EPU The ASUS EPU (Energy Processing Unit) provides total system power management by detecting current PC loadings and intelligently moderating power in real-time. It automatically provides the most appropriate power usage to save power and money. Turbo Key ASUS Turbo Key allows you to turn the PC power button into an overclocking button. After you easy setup, Turbo Key boosts performances without interrupting ongoing work or games, simply through pressing the button. Express Gate Express Gate is a unique OS built into the motherboard. Five seconds after bootup, you can instantly surf the Internet without entering the Windows OS. - ASUS Express Gate supports file uploading from SATA HDDs, ODDs, and USB drives. It supports file downloading to USB devices only; - The actrual boot time is subject to hardware configuration and product models. EZ Flash 2 ASUS EZ Flash 2 is a utility that allows you to update the BIOS without using an OS-based utility. ASUS CrashFree BIOS 3 ASUS CrashFree BIOS 3 is an auto-recovery tool that allows you to restore a corrupted BIOS file using the bundled support DVD or USB disk that contains the latest BIOS file. ASUS AI NET2 ASUS AI NET2 remotely detects the cable connection immediately after turning on the system, and any faulty cable connections are reported back up to 100 meters at 1 meter accuracy. ASUS Q-Fan ASUS Q-Fan technology intelligently and automatically adjusts CPU fan speeds according to system load and temperature, enabling users to work in a distraction-free environment with minimal noise. MyLogo 2 This feature allows you to convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen. C.P.R. (CPU Parameter Recall) The BIOS C.P.R. feature automatically restores the CPU default settings when the system hangs due to overclocking failure. C.P.R. eliminates the need to open the system chassis and clear the RTC data. Simply shut down and reboot the system, and the BIOS automatically restores the CPU parameters to their default settings. GreenASUS The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers´ health while minimizing the impact on the environment.
Key Features
ASUS P5P41D. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T), Compatible processor series: Intel® Celeron®, Intel® Celeron® Dual-Core, Intel® Pentium® Dual-Core. Maximum internal memory: 8 GB, ECC сompatibility: Non-ECC. Motherboard form factor: ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC887. BIOS memory size: 64 Mbit. Width: 305 mm, Depth: 208 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P5P41D motherboard LGA 775 (Socket T) ATX (P5P41D) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P5P41D motherboard LGA 775 (Socket T) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P5P41D motherboard LGA 775 (Socket T) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the P5P41D.
