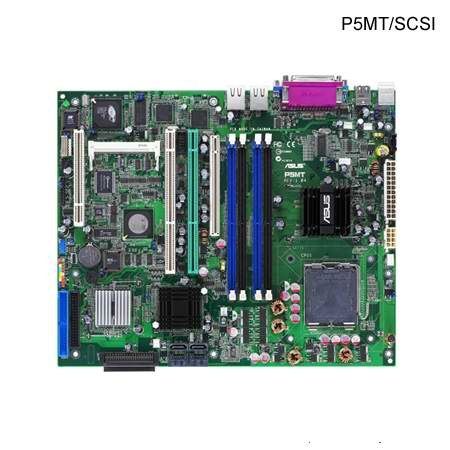

ASUS P5MT-S motherboard Intel® E7230 LGA 775 (Socket T) ATX
Brand: ASUS · SKU: P5MT-S · MPN: P5MT-S · Category: Components
ASUS P5MT-S, Intel, LGA 775 (Socket T), 800 MHz, 8 GB, 0, 1, 0+1, 8 MB. ASUS P5MT-S motherboard Intel® E7230 LGA 775 (Socket T) ATX (part number P5MT-S) is an enterprise components product available from Server Tech Central. Key specifications include depth 248.9 mm, width 304.8 mm, i/o ports 1 x MiniPCI Socket 1 x PCI-E [x16 ], raid levels 0, 1, 0+1, microphone in No, cd/aux audio in No, s/pdif out port No, processor socket LGA 775 (Socket T). Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 248.9 mm |
|---|---|
| Width | 304.8 mm |
| I/O ports | 1 x MiniPCI Socket 1 x PCI-E [x16 ] |
| RAID levels | 0, 1, 0+1 |
| Microphone in | No |
| CD/AUX audio in | No |
| Expansion slots | -1 x PCI-E x16 slot (x8 link) -2 x PCI-X 64 bit 100/66 MHz -1 x PCI 33MHz/32 bits/5V Mini-PCI Socket for ASMB2 Card |
| S/PDIF out port | No |
| Processor socket | LGA 775 (Socket T) |
| CPU fan connector | Yes |
| EZ plug connector | No |
| Power source type | ATX |
| USB 2.0 connectors | 2 |
| GAME/MIDI connector | No |
| Graphics controller | ATI RAGE-XL PCI Display |
| Motherboard chipset | Intel® E7230 |
| Networking features | 2 x Broadcom BCM5721 Gb PCI-E LAN |
| PS/2 ports quantity | 1 |
| S/PDIF out connector | No |
| eSATA ports quantity | 3 |
| Serial ports quantity | 2 |
| Manageability features | ASWM 2.0 |
| Number of memory slots | 4 |
| Processor manufacturer | Intel |
| Warranty | 3-Year Warranty |
| Dimensions | 304.8 mm x 248.9 mm |
Product Description
Immediate CPU Performance scale up Support Intel Pentium D dual core Process Leading-edge speed for performance with ECC memory Protection Support DDR2 533 / 667 ECC Un-buffered memory Complete RAID support for ICH SATA port & discrete SCSI / SATA controller 4 SATA 3Gb/s ports from ICH7R support RAID 0, 1, 0+11 Ultra320 SCSI port supports Adaptec® AIC-7901integrated RAID 0, 1, 0+1, optional ZCR Superb network performance and reliability with server connectivity Dual PCI-E Gb LAN interface with server features IPMI2.0 ready with online & offline management capability Optional Mini-PCI ASMB 2 cardSupport SOL, 128bit MD5 authentic encryption, FRU data management, remote power on/off & reset, remote BIOS reflash/modifyGUI-based ARC console as ASMB2 centralized management interfaceASMB2 provide online web-based interface for server management
Key Features
ASUS P5MT-S. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T), Processor system buses supported: 800 MHz. Maximum internal memory: 8 GB. RAID levels: 0, 1, 0+1. Maximum graphics card memory: 8 MB. Networking features: 2 x Broadcom BCM5721 Gb PCI-E LAN
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P5MT-S motherboard Intel® E7230 LGA 775 (Socket T) ATX (P5MT-S) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P5MT-S motherboard Intel® E7230 LGA 775 (Socket T) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P5MT-S motherboard Intel® E7230 LGA 775 (Socket T) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the P5MT-S.
