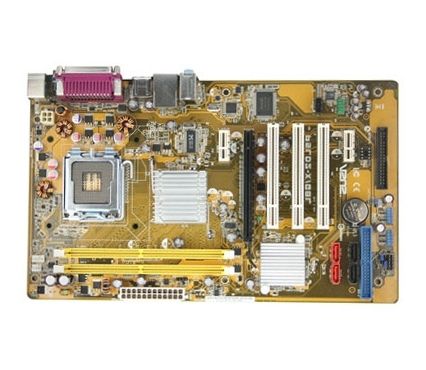

ASUS P5LD2-X/GBL motherboard LGA 775 (Socket T) ATX
Brand: ASUS · SKU: P5LD2-X/GBL · MPN: P5LD2-X/GBL · Category: Components
ASUS P5LD2-X/GBL, Intel, LGA 775 (Socket T), 4 GB, Non-ECC, ATX, 5.1 channels. ASUS P5LD2-X/GBL motherboard LGA 775 (Socket T) ATX (part number P5LD2-X/GBL) is an enterprise components product available from Server Tech Central. Key specifications include depth 183 mm, width 305 mm, audio chip Realtek ALC662, cd/aux audio in Yes, expansion slots 1 x PCIe x16 2 x PCIe x1 3 x PCI, s/pdif out port Yes, bios memory size 64 Mbit, processor socket LGA 775 (Socket T). Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 183 mm |
|---|---|
| Width | 305 mm |
| Audio chip | Realtek ALC662 |
| CD/AUX audio in | Yes |
| Expansion slots | 1 x PCIe x16 2 x PCIe x1 3 x PCI |
| S/PDIF out port | Yes |
| BIOS memory size | 64 Mbit |
| Processor socket | LGA 775 (Socket T) |
| CPU fan connector | Yes |
| Power source type | ATX |
| COM ports quantity | 1 |
| ECC сompatibility | Non-ECC |
| USB 2.0 connectors | 4 |
| PS/2 ports quantity | 2 |
| Audio output channels | 5.1 channels |
| Number of memory slots | 2 |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 4 |
| Maximum internal memory | 4 GB |
| Motherboard form factor | ATX |
| Parallel ports quantity | 1 |
| Number of SATA connectors | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Chassis intrusion connector | Yes |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 183 mm |
Product Description
LGA775 Intel® Core™2 Processor This motherboard supports the latest Intel® Core™2 processors in LGA775 package. With new Intel® Core™ microarchitecture technology and 1333(O.C.)1066 / 800 / 533 MHz FSB, Intel® Core™2 processor is one of the most powerful and energy efficient CPU in the world. 64-bit CPU support 64-bit computing, the next generation technology to replace the current 32-bit architecture, delivers advanced system performance, faster memory access and increased productivity. This motherboard provides excellent compatibility and flexibility by suppor. Dual channel DDR2 667 Dual-channel DDR technology doubles the bandwidth of your system memory and hence boost the system performance to out perform any memory existing solutions in the market. System bottlenecks are eliminated with balanced architecture and peak bandwidths up to 10.6GB/s. PCI Express Architecture PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 2 times higher than that of AGP 8X interface, PCI Express x8 bus performs much better in applications such as 3D gaming. Serial ATA 3Gb/s This motherboard supports next-generation SATA hard drives based on the new SATA 3Gb/s storage specification. High Definition Audio Enjoy high-quality sound system on your PC! The onboard 6-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality audio output, jack-detect feature automatically. S/PDIF-out on Back I/O Port This motherboard provides convenient connectivity to external home theater audio systems via an optical or coaxial S/PDIF-out (SONY-PHILIPS Digital Interface) jack. It allows to transfer digital audio without converting to analog format and keeps the best signal quality. ASUS Q-Fan ASUS Q-Fan technology intelligently adjusts CPU fan speeds according to system loading to ensure quiet, cool and efficient operation. Gigabit LAN The on-board LAN controller is a highly integrated GbLAN controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems. Max. 8 USB 2.0 ports USB 2.0 is the latest connectivity standard for next generation components and peripherals. Backwards compatible with current USB 1.1 peripherals, USB 2.0 delivers transfer speeds up to 40 times faster at 480Mb/s, for easy connectivity and ultra-fast data. ASUS CrashFree BIOS3 The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip. ASUS EZ Flash 2 EZ Flash 2 is a user-friendly BIOS update utility. Simply launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility. ASUS MyLogo 2 Turn your favorite photos into 256-color boot logos to personalize your system.
Key Features
ASUS P5LD2-X/GBL. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T). Maximum internal memory: 4 GB, ECC сompatibility: Non-ECC. Motherboard form factor: ATX, Audio output channels: 5.1 channels, Audio chip: Realtek ALC662. BIOS memory size: 64 Mbit. Width: 305 mm, Depth: 183 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P5LD2-X/GBL motherboard LGA 775 (Socket T) ATX (P5LD2-X/GBL) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P5LD2-X/GBL motherboard LGA 775 (Socket T) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P5LD2-X/GBL motherboard LGA 775 (Socket T) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the P5LD2-X/GBL.
