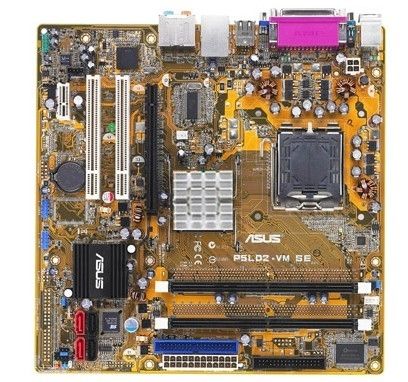

ASUS P5LD2-VM SE motherboard LGA 775 (Socket T) ATX
Brand: ASUS · SKU: P5LD2-VM SE · MPN: P5LD2-VM SE · Category: Components
ASUS P5LD2-VM SE, Intel, LGA 775 (Socket T), 2 GB, GMA 950, Gigabit Ethernet, ATX. ASUS P5LD2-VM SE motherboard LGA 775 (Socket T) ATX (part number P5LD2-VM SE) is an enterprise components product available from Server Tech Central. Key specifications include depth 245 mm, width 245 mm, audio chip Realtek ALC882, graphics card GMA 950, cd/aux audio in Yes, expansion slots 1x PCI-E x16 1x PCI-E x1 2x PCI 2.2, bios memory size 32 Mbit, bundled software Drivers ASUS PC Probe II ASUS Update Anti-Virus software. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 245 mm |
|---|---|
| Width | 245 mm |
| Audio chip | Realtek ALC882 |
| Graphics card | GMA 950 |
| CD/AUX audio in | Yes |
| Expansion slots | 1x PCI-E x16 1x PCI-E x1 2x PCI 2.2 |
| BIOS memory size | 32 Mbit |
| Bundled software | Drivers ASUS PC Probe II ASUS Update Anti-Virus software |
| Processor socket | LGA 775 (Socket T) |
| Special features | ASUS CrashFree BIOS 2 ASUS C.P.R. ASUS Q-Fan ASUS EZ Flash ASUS MyLogo |
| CPU fan connector | Yes |
| Power source type | ATX |
| USB 2.0 connectors | 2 |
| Networking features | Gigabit Ethernet |
| PS/2 ports quantity | 2 |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| Serial ports quantity | 1 |
| Manageability features | WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE |
| Number of memory slots | 2 |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 4 |
| Maximum internal memory | 2 GB |
| Motherboard form factor | ATX |
| Warranty | 3-Year Warranty |
| Dimensions | 245 mm x 245 mm |
Product Description
The Best Intel All in One Solution with Dual Core CPU Support Enjoy the performance of Intel® Core™2 processor with P5LD2-VM SE! This motherbard supports Microsoft® DirectX 9 intergrated graphics, PCI-Express VGA when you're ready for upgrade, furthermore, SATA II, DDR2 memory support, and even Intel® Gigabit LAN! Intel 945G chipset The Intel 945G graphics memory controller hub(GMCH) and the ICH7 I/O controller hub provide the vital interfaces for the motherboard. The GMCH features the Intel Graphics Media Accelerator 950, an integrated graphics engine for enhanced 3D, 2D, and video capabilities. The GMCH provides the interface for processor in the 775-land package with 533/800/1066MHz FSB, dual channel DDR2 at speeds of up to 667MHz, and PCI Express x16 graphics card. LGA775 Intel® Core™2 Processor Ready This motherboard supports the latest Intel® Core™2 processors in LGA775 package. With new Intel® Core™ microarchitecture technology and 1066 / 800 MHz FSB, Intel® Core™2 processor is one of the most powerful and energy efficient CPU in the world. Supports Intel® Dual/Single-Core 65nm Processors This motherboard support Intel® 65nm Pentium® D/ Intel® Pentium® 4/ Celeron® processors. ASUS motherboard is the ideal solution to enhance the performance of new generation processors. PCI Express Architecture PCI Express is the latest I/O interconnect technology that will replace the existing PCI interface. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better than AGP 8X in applications such as 3D gaming. PCI Express x1 also outperforms PCI interface with its exceptional high bandwidth up to 500MB/s. Intel Graphics Media Accelerator 950 The new Intel Graphics engine has new capabilities that provide a significant increase in graphics performance. DirectX 9.0 hardware acceleration, 333MHz core clock, and up to 224MB of video memory all together provide a full-value, high performance graphic Intel Gb LAN The on-board LAN controller is a highly integrated Intel GbLAN controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems. - High-performing, PCI Express-based 10/100/1000 Ethernet connection - Simple installation and maintenance with Intel® SingleDriver technology and support DMiX Dual-Channel DDR2 667 Dual-channel DDR technology doubles the bandwidth of your system memory and hence boost the system performance to out perform any memory existing solutions in the market. System bottlenecks are eliminated with balanced architecture and peak bandwidths up to 10.6GB/s. SATA 3Gb/s Serial ATA II is the next generation ATA specification that provides scalable performance foroday and tomorrow. With up to 300MB/s data transfer rate, Serial ATA II is faster than current Parallel ATA, while providing 100% software compatibility. Max. 8 USB 2.0 ports supports USB 2.0 is the latest connectivity standard for next generation components and peripherals. Backwards compatible with current USB 1.1 peripherals, USB 2.0 delivers transfer speeds up to 40 times faster at 480Mb/s, for easy connectivity and ultra-fast data transfers. ASUS CrashFree BIOS2 The CrashFree BIOS2 feature now includes the BIOS auto-recovery function in a support CD. Users can reboot their system through the support CD when a bootable disk is not available, and go through the simple BIOS auto-recovery process. ASUS motherboards now enable users to enjoy this protection feature without the need to pay for an optional ROM. C.P.R.(CPU Parameter Recall) When the system hangs due to overclocking failure, there is no need to open the case to clear CMOS data. Just simply restart the system, the BIOS would show the previous setting and then users can amend the CPU setting again. ASUS EZ Flash With ASUS EZ Flash, you can update BIOS directly from the BIOS setup menu. No more DOS-based flash utility and bootable diskette required. Q-Fan Constant, high-pitched noise generated from heatsink fans are a thing of the past thanks to ASUS Q-Fan. The ASUS P5LD2-VM SE with Q-Fan technology intelligently adjusts fan speeds according to system loading to ensure quiet, cool and efficient operation.
Key Features
ASUS P5LD2-VM SE. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T). Maximum internal memory: 2 GB. Graphics card: GMA 950. Networking features: Gigabit Ethernet. Motherboard form factor: ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC882
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P5LD2-VM SE motherboard LGA 775 (Socket T) ATX (P5LD2-VM SE) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P5LD2-VM SE motherboard LGA 775 (Socket T) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P5LD2-VM SE motherboard LGA 775 (Socket T) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the P5LD2-VM SE.
