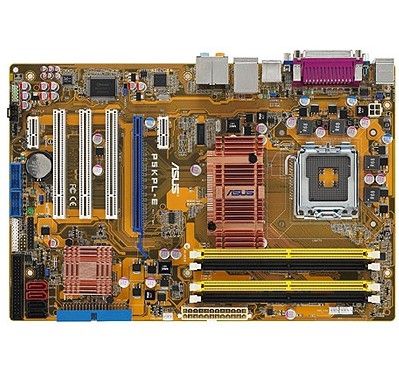

ASUS P5KPL-E motherboard LGA 775 (Socket T) ATX
Brand: ASUS · SKU: P5KPL-E · MPN: P5KPL-E · Category: Components
ASUS P5KPL-E, Intel, LGA 775 (Socket T), 4 GB, Non-ECC, GMA 3100, Gigabit Ethernet. ASUS P5KPL-E motherboard LGA 775 (Socket T) ATX (part number P5KPL-E) is an enterprise components product available from Server Tech Central. Key specifications include depth 203 mm, width 305 mm, audio chip Realtek ALC883, graphics card GMA 3100, tpm connector Yes, cd/aux audio in Yes, expansion slots 1 x PCI Express x16 2 x PCI Express x1 3 x PCI 2.2, bios memory size 64 Mbit. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 203 mm |
|---|---|
| Width | 305 mm |
| Audio chip | Realtek ALC883 |
| Graphics card | GMA 3100 |
| TPM connector | Yes |
| CD/AUX audio in | Yes |
| Expansion slots | 1 x PCI Express x16 2 x PCI Express x1 3 x PCI 2.2 |
| BIOS memory size | 64 Mbit |
| Bundled software | Y |
| Processor socket | LGA 775 (Socket T) |
| CPU fan connector | Yes |
| Power source type | ATX |
| COM ports quantity | 1 |
| ECC сompatibility | Non-ECC |
| USB 2.0 connectors | 2 |
| Networking features | Gigabit Ethernet |
| PS/2 ports quantity | 2 |
| Power fan connector | Yes |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| Manageability features | WOL @ PME, WOR @ PME, PXE |
| Number of memory slots | 4 |
| Processor manufacturer | Intel |
| Maximum internal memory | 4 GB |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 203 mm |
Product Description
LGA775 Intel® Core™2 and Quad-core Processor Ready This motherboard supports the latest Intel® Core™2 processors in LGA775 package. It also can support Intel® next generation 45nm Multi-Core CPU. With new Intel® Core™ microarchitecture technology and 1333/1066/800 MHz FSB, Intel® Core™2 processor is one of the most powerful and energy efficient CPU in the world. Dual channel DDR2 800 (O.C. DDR2-1066) DDR2 800 memory provides great performance for 3D graphics and other memory demanding applications on next generation memory technology. PCI Express Architecture PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 2 times higher than that of AGP 8X interface, PCI Express x8 bus performs much better in applications such as 3D gaming. Uses 100% All High-quality Conductive Polymer Capacitors This motherboard uses all high-quality conductive polymer capacitors onboard for durability, improved lifespan, and enhanced thermal capacity. Serial ATA 3Gb/s This motherboard supports next-generation SATA hard drives based on the new SATA 3Gb/s storage specification. High Definition Audio Enjoy high-quality sound system on your PC! The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality audio output, jack-detect feature automatically. S/PDIF-out technology This motherboard provides convenient connectivity to external home theater audio systems via an optical or coaxial S/PDIF-out (SONY-PHILIPS Digital Interface) onboard connector. It allows to transfer digital audio without converting to analog format and keeps the best signal quality. Max. 8 USB 2.0 ports supports USB 2.0 is the latest connectivity standard for next generation components and peripherals. Backwards compatible with current USB 1.1 peripherals, USB 2.0 delivers transfer speeds up to 40 times faster at 480Mb/s, for easy connectivity and ultra-fast data. ASUS Q-Fan ASUS Q-Fan technology intelligently adjusts CPU fan speeds according to system loading to ensure quiet, cool and efficient operation. GreenASUS The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers´ health while minimizing the impact on the environment.
Key Features
ASUS P5KPL-E. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T). Maximum internal memory: 4 GB, ECC сompatibility: Non-ECC. Graphics card: GMA 3100. Networking features: Gigabit Ethernet. Motherboard form factor: ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC883
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P5KPL-E motherboard LGA 775 (Socket T) ATX (P5KPL-E) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P5KPL-E motherboard LGA 775 (Socket T) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P5KPL-E motherboard LGA 775 (Socket T) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the P5KPL-E.
