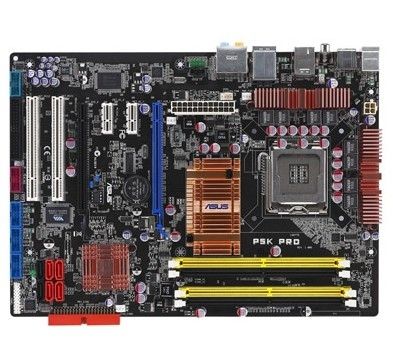

ASUS P5K PRO motherboard LGA 775 (Socket T) ATX
Brand: ASUS · SKU: P5K PRO · MPN: P5K PRO · Category: Components
ASUS P5K PRO, Intel, LGA 775 (Socket T), 8 GB, Non-ECC, Gigabit Ethernet, ATX. ASUS P5K PRO motherboard LGA 775 (Socket T) ATX (part number P5K PRO) is an enterprise components product available from Server Tech Central. Key specifications include depth 218 mm, width 305 mm, audio chip Realtek ALC883, cd/aux audio in Yes, expansion slots 2 x PCIe x16 2 x PCIe x1 2 x PCI, s/pdif out port Yes, bios memory size 64 Mbit, processor socket LGA 775 (Socket T). Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 218 mm |
|---|---|
| Width | 305 mm |
| Audio chip | Realtek ALC883 |
| CD/AUX audio in | Yes |
| Expansion slots | 2 x PCIe x16 2 x PCIe x1 2 x PCI |
| S/PDIF out port | Yes |
| BIOS memory size | 64 Mbit |
| Processor socket | LGA 775 (Socket T) |
| CPU fan connector | Yes |
| Power source type | ATX |
| ECC сompatibility | Non-ECC |
| USB 2.0 connectors | 3 |
| Networking features | Gigabit Ethernet |
| PS/2 ports quantity | 2 |
| Power fan connector | Yes |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| Manageability features | WfM 2.0, DMI 2.0, WOL @ PME, WOR @ PME, PXE |
| Number of memory slots | 4 |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 6 |
| Maximum internal memory | 8 GB |
| Motherboard form factor | ATX |
| Number of SATA connectors | 6 |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 218 mm |
Product Description
LGA775 Intel® Core™2 Processor Ready This motherboard supports the latest Intel® Core™2 processors in LGA775 package. It also can support Intel® next generation 45nm Multi-Core CPU. With new Intel® Core™ microarchitecture technology and 1333 / 1066 / 800 MHz FSB, Intel® Core™2 processor is one of the most powerful and energy efficient CPU in the world. Intel® P35 Chipset The Intel® P35 Express Chipset is the latest chipset designed to support the next generation 45nm CPU; and up to 8GB of dual-channel DDR3 1066/800 MHz and DDR2 800/667 MHz memory architecture. It also supports 1333/1066/800 FSB (Front Side Bus), PCI Express x16 graphics and multi-core CPUs. ASUS Super Memspeed Technology Surpass the Limit with Easy Overclocking Choices ASUS´s Super Memspeed Technology keeps you one step ahead by breaking through current FSB and DRAM ratio proportions with full support of native DDR2 1066. With support for future memory trends, your purchase investment is protected; and it is the best stage for overclocking options when compared to other technologies that run at reduced frequencies of DDR2 800 or require overclocking to reach DDR2 1066. It is also the only technology that allows overclocking to be more convenient and smart - providing better compatibility and the ability to overclock up to 1370MHz - an enhancement of up to 71% - granting great performance for 3D graphics and other memory demanding applications. ASUS EPU The ASUS EPU utilizes innovative technology to digitally monitor and tune the CPU power supply with improved VR responses in heavy or light loadings. It automatically provides power for higher performance or improve efficiency by 7% when the PC is running low intensity applications. Working together with AI Gear 3, this can help you attain the best possible power efficiency and energy savings up to 58.6% to help save the environment. ATI CrossFire Technology ATI´s CrossFire boosts image quality along with rendering speed, eliminating the need to scale down screen resolutions to get the high image quality you want. CrossFire ignites with the higher antialiasing, anisotropic filtering, shading, and texture settings you desire. Adjust your display configurations, experiment with your advanced 3D settings, and check the effect with a real-time 3D-rendered preview within ATI´s Catalyst™ Control Center to rule your CrossFire system. Q-Fan 2 Adjusts both CPU fan and chassis fan speeds according to system loading. ASUS Q-Fan2 technology intelligently adjusts both CPU fan and chassis fan speeds according to system loading to ensure quiet, cool and efficient operation. IEEE 1394a interface IEEE 1394a interface provides high speed digital interface for audio/video appliances such as digital television, digital video camcorders, storage peripherals & other PC portable devices. High Definition Audio Enjoy high-end sound system on your PC! The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer. MyLogo3 The ASUS MyLogo3 is the new feature present in the motherboard that allows you to personalize and add style to your system with customizable and animated boot logos. S/PDIF-out on Back I/O Port This motherboard provides convenient connectivity to external home theater audio systems via an coaxial S/PDIF-out (SONY-PHILIPS Digital Interface) jack. It allows digital audio transfer without converting to analog format and keeps the best signal quality. Uses 100% All High-quality Conductive Polymer Capacitors! This motherboard uses all high-quality conductive polymer capacitors onboard for durability, improved lifespan, and enhanced thermal capacity. GreenASUS The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers´ health while minimizing the impact on the environment.
Key Features
ASUS P5K PRO. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T). Maximum internal memory: 8 GB, ECC сompatibility: Non-ECC. Networking features: Gigabit Ethernet. Motherboard form factor: ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC883. BIOS memory size: 64 Mbit
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P5K PRO motherboard LGA 775 (Socket T) ATX (P5K PRO) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P5K PRO motherboard LGA 775 (Socket T) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P5K PRO motherboard LGA 775 (Socket T) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the P5K PRO.
