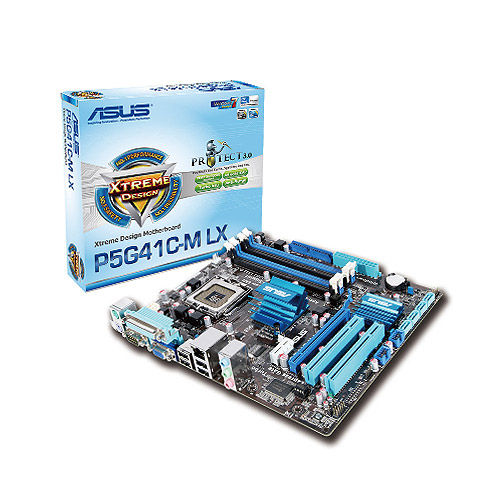

ASUS P5G41C-M LX motherboard LGA 775 (Socket T) micro ATX
Brand: ASUS · SKU: P5G41C-M LX · MPN: P5G41C-M LX · Category: Components
ASUS P5G41C-M LX, Intel, LGA 775 (Socket T), 8 GB, Non-ECC, 1024 MB, GMA X4500. ASUS P5G41C-M LX motherboard LGA 775 (Socket T) micro ATX (part number P5G41C-M LX) is an enterprise components product available from Server Tech Central. Key specifications include depth 216 mm, width 244 mm, audio chip VIA VT1708S, acpi version 2.0, graphics card GMA X4500, microphone in Yes, bios memory size 64 Mbit, bundled software ASUS PC Probe II ASUS Update. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 216 mm |
|---|---|
| Width | 244 mm |
| Audio chip | VIA VT1708S |
| ACPI version | 2.0 |
| Graphics card | GMA X4500 |
| Microphone in | Yes |
| BIOS memory size | 64 Mbit |
| Bundled software | ASUS PC Probe II ASUS Update |
| Drivers included | Yes |
| Processor socket | LGA 775 (Socket T) |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| COM ports quantity | 1 |
| ECC сompatibility | Non-ECC |
| USB 2.0 connectors | 4 |
| Networking features | PCIe Gb LAN |
| PS/2 ports quantity | 2 |
| PCI Express x1 slots | 1 |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 1 |
| Number of memory slots | 2 |
| Processor manufacturer | Intel |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 216 mm |
Product Description
Intel® Core™2 Extreme / Core™2 Quad / Core™2 Duo CPU support This motherboard supports Intel® LGA775 Core™ 2 Extreme / Core™ 2 Quad/ Core™ 2 Duo processors, which are excellent for multitasking, multimedia, and enthusiastic gamers with 1333/1066/800 MHz FSB. This motherboard also supports Intel® CPUs in the 45nm manufacturing process. LGA775 Intel® 45nm Processor Ready This motherboard supports the latest Intel 45nm CPU which introduces new micro-architecture features for greater performance at a given frequency, up to 50% larger L2 caches, and expanded power management capabilities for new levels of energy efficiency. Dual channel DDR3 1333(O.C.) / DDR2 1066(O.C.) support The motherboard supports DDR3 1333/1066/800 MHz or DDR2 memory 1066/800/667 MHz to meet the higher bandwidth requirements of the latest operation system, 3D graphics, multimedia, and Internet applications. The dual-channel DDR3/DDR2 architecture doubles the bandwidth of your system memory to boost system performance, eliminating bottlenecks with peak bandwidths of up to 19.2 GB/s. Intel® G41 Chipset The Intel® G41 Express Chipset is designed to support dual-channel DDR2 1066 (overclocking)/800/667 architecture, 1333/1066/800 Front Side Bus (FSB), PCIe 1.1, and mutli-core CPUs. It especially includes Intel® Fast memory bandwidth and reduces the latency of the memory accesses. High Definition Audio Enjoy high-end sound system on your PC! The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer. Gigabit LAN The on-board LAN controller is a highly integrated GbLAN controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems.
Key Features
ASUS P5G41C-M LX. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T). Maximum internal memory: 8 GB, ECC сompatibility: Non-ECC. Maximum graphics card memory: 1024 MB, Graphics card: GMA X4500. Networking features: PCIe Gb LAN. Motherboard form factor: micro ATX, Audio output channels: 7.1 channels, Audio chip: VIA VT1708S
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P5G41C-M LX motherboard LGA 775 (Socket T) micro ATX (P5G41C-M LX) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P5G41C-M LX motherboard LGA 775 (Socket T) micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P5G41C-M LX motherboard LGA 775 (Socket T) micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the P5G41C-M LX.
