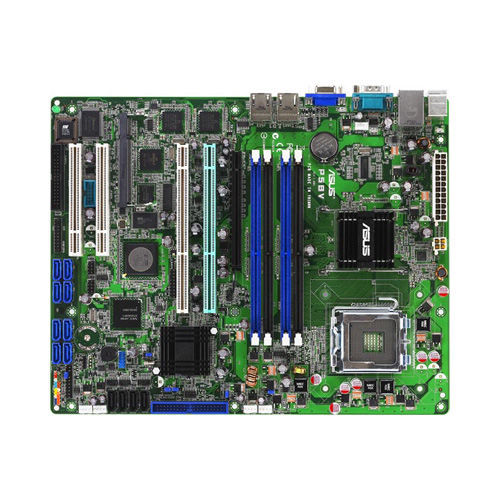

ASUS P5BV/SAS motherboard Intel® 3200 LGA 775 (Socket T) ATX
Brand: ASUS · SKU: P5BV/SAS · MPN: P5BV/SAS · Category: Components
ASUS P5BV/SAS, Intel, LGA 775 (Socket T), 2, 4, DDR2-SDRAM, 8 GB, ECC & Non-ECC. ASUS P5BV/SAS motherboard Intel® 3200 LGA 775 (Socket T) ATX (part number P5BV/SAS) is an enterprise components product available from Server Tech Central. Key specifications include pci slots 2, pci-x slots 2, raid levels 0, 1, 5, 10, 50, ethernet lan Yes, lan controller Broadcom BCM5721, processor socket LGA 775 (Socket T), ecc сompatibility ECC & Non-ECC, usb 2.0 connectors 1. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| PCI slots | 2 |
|---|---|
| PCI-X slots | 2 |
| RAID levels | 0, 1, 5, 10, 50 |
| Ethernet LAN | Yes |
| LAN controller | Broadcom BCM5721 |
| Processor socket | LGA 775 (Socket T) |
| ECC сompatibility | ECC & Non-ECC |
| USB 2.0 connectors | 1 |
| Motherboard chipset | Intel® 3200 |
| PS/2 ports quantity | 1 |
| Power fan connector | Yes |
| Number of DIMM slots | 4 |
| PCI Express x16 slots | 1 |
| Serial ports quantity | 1 |
| Processor manufacturer | Intel |
| Supported memory types | DDR2-SDRAM |
| USB 2.0 ports quantity | 4 |
| Ethernet interface type | Gigabit Ethernet |
| Maximum internal memory | 8 GB |
| Motherboard form factor | ATX |
| Number of SATA connectors | 4 |
| Storage temperature (T-T) | -40 - 70 °C |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Warranty | 3-Year Warranty |
Product Description
45nm Ready Server Board with High Storage Capacity & Expandability ASUS new platform sever board – the P5BV/SAS supports the 45nm Multi-Core Intel® Xeon® processor at FSB1333MHz based on the Intel® 3200 MCH, features up to 8GB DDR2 800/667 memory capacity and various expansion choices. All New 1P Platform with Latest Technology Single Quad-Core/Dual-Core Intel® Xeon® 3200/3000 Series Processors support Upgradeable to next-generation 45nm Intel® Xeon® processors FSB 1333MHz support Up to 8GB DDR2 800/667 Unbuffered, ECC /Non ECC memory capacity Fast and Reliable Network Connections Two professional Gigabit LAN provides higher transferring bandwidth High communication efficiency - even if an error occurs to one port, the networking connection will not be affected in any way High Storage Capacity and Data Protection Expandable with 4 SATA2 HDDs 4-port SATA support RAID 0, 1, 10, 5 (for Windows) 8-port SAS from LSI®1068 support RAID 0, 1, 1E (ZCR) Optional LSI® ZCR (Zero-Channel-RAID) PCI-X card is upgradeable to support hardware RAID 0, 1, 10, 5, 50 Flexible Expansion Choices Support one PCI-Ex16 (x8 link) slot for higher bandwidth Protect users’ investment by supporting two PCI 32 bit/33Mhz and two PCI-X slots for legacy device
Key Features
ASUS P5BV/SAS. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T), Processor number of cores supported: 2, 4. Supported memory types: DDR2-SDRAM, Maximum internal memory: 8 GB, ECC сompatibility: ECC & Non-ECC. Supported storage drive interfaces: SATA, SATA II, RAID levels: 0, 1, 5, 10, 50. Ethernet interface type: Gigabit Ethernet, LAN controller: Broadcom BCM5721. Motherboard form factor: ATX, Motherboard chipset: Intel® 3200
