ASUS P5BV motherboard Intel® 3200 LGA 775 (Socket T) ATX
Brand: ASUS · SKU: P5BV · MPN: P5BV · Category: Components
ASUS P5BV, Intel, LGA 775 (Socket T), 2, 4, DDR2-SDRAM, 8 GB, ECC & Non-ECC. ASUS P5BV motherboard Intel® 3200 LGA 775 (Socket T) ATX (part number P5BV) is an enterprise components product available from Server Tech Central. Key specifications include pci slots 2, pci-x slots 2, raid levels 0, 1, 5, 10, ethernet lan Yes, lan controller Broadcom BCM5721, processor socket LGA 775 (Socket T), ecc сompatibility ECC & Non-ECC, usb 2.0 connectors 1. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| PCI slots | 2 |
|---|---|
| PCI-X slots | 2 |
| RAID levels | 0, 1, 5, 10 |
| Ethernet LAN | Yes |
| LAN controller | Broadcom BCM5721 |
| Processor socket | LGA 775 (Socket T) |
| ECC сompatibility | ECC & Non-ECC |
| USB 2.0 connectors | 1 |
| Motherboard chipset | Intel® 3200 |
| PS/2 ports quantity | 1 |
| Number of DIMM slots | 4 |
| PCI Express x16 slots | 1 |
| Serial ports quantity | 1 |
| Processor manufacturer | Intel |
| Supported memory types | DDR2-SDRAM |
| USB 2.0 ports quantity | 4 |
| Ethernet interface type | Gigabit Ethernet |
| Maximum internal memory | 8 GB |
| Motherboard form factor | ATX |
| Number of SATA connectors | 4 |
| Storage temperature (T-T) | -40 - 70 °C |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Chassis intrusion connector | Yes |
| Warranty | 3-Year Warranty |
Product Description

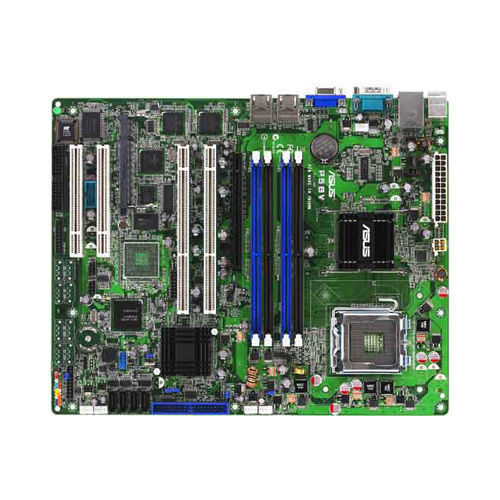

45nm Ready Serverboard with Rich Expansion capability ASUS new platform sever board – the P5BV supports the latest 45nm Multi-Core Intel® Xeon® processor at FSB1333MHz based on the Intel® 3200 MCH and Intel® ICH7R chipset, features up to 8GB DDR2 800/667 memory capacity and PCI-E expansion slots support. All New 1P Platform with Latest Technology - Single Quad-Core/Dual-Core Intel® Xeon® 3200/3000 Series Processors Support. - Upgradeable to next-generation 45nm Intel® Xeon® processors FSB 1333MHz support. - Up to 8GB DDR2 800/667 Unbuffered ECC/non-ECC memory capacity. Professional Network Connections - Dual-LAN features a "teaming" function and provides higher transferring bandwidth. - High communication efficiency- even if an error occurs to one port, the networking connection will not be affected in any way. High Storage Capacity and Data Protection 4-port SATA support RAID 1, 10, 5 (for Windows ) and embedded LSI MegaRAID driver support RAID 1 & 10 for Linux OS. Flexible Expansion Choices - Support one PCI-Ex16 (x8 link) slot for higher bandwidth. - Protect users´ investment by supporting two PCI 32 bit/33Mhz and two PCI-X slots for legacy device.
Key Features
ASUS P5BV. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T), Processor number of cores supported: 2, 4. Supported memory types: DDR2-SDRAM, Maximum internal memory: 8 GB, ECC сompatibility: ECC & Non-ECC. Supported storage drive interfaces: SATA, SATA II, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet, LAN controller: Broadcom BCM5721. Motherboard form factor: ATX, Motherboard chipset: Intel® 3200
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P5BV motherboard Intel® 3200 LGA 775 (Socket T) ATX (P5BV) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P5BV motherboard Intel® 3200 LGA 775 (Socket T) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P5BV motherboard Intel® 3200 LGA 775 (Socket T) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the P5BV.
