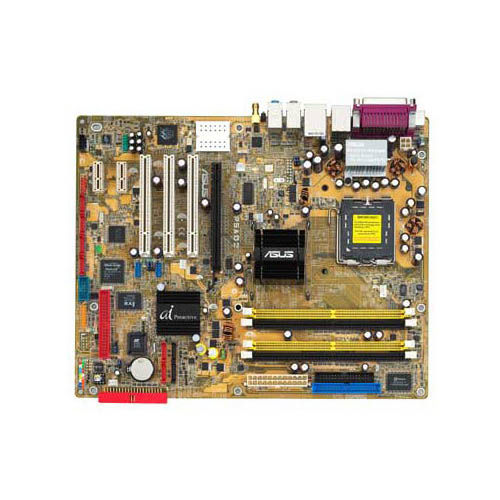

ASUS P5AD2 Deluxe Intel® 925X Express LGA 775 (Socket T) ATX

Specifications

Product Description

Enhance your system without lifting a finger The P5AD2 Deluxe is one of the most comprehensive ASUS AI Proactive series motherboards. Featuring onboard wireless LAN, triple RAID systems, gigabit Ethernet LAN, 1394a, and the most advanced PC technologies from the Intel 925X chipsets, the P5AD2 Deluxe is the best choice to build a server at home. With its unsurpassed performance, the P5AD2 Deluxe also works perfectly as a high-end gaming machine or a task-intensive workstation. Intel EM64T Intel EM64T (Intel Extended Memory 64 Technology) allows processors to run newly written 64-bit code and to access larger amounts of memory, which delivers exceptional graphic performance and higher data processing speed. Digital media applications can take advantage of Intel EM64T in high quality video and audio processing as well as 3D rendering. Intel EIST Intel EIST (Enhanced Intel SpeedStep technology) automatically adjusts Intel 64-bit processor voltage and core frequency according to system performance demand, establishing a self-managed, lower-power consumption, less heat and quieter environment. Combined Intel EIST and ASUS Q-fan technology (adjusts fan speeds according to system loading), this motherboard provides excellently quiet, cool and efficient platform for Intel lovers. Intel LGA775 Pentium 4 CPU This motherboard supports the latest Pentium 4 CPU from Intel in LGA775 package. With 800MHz FSB, 1 MB L2 cache, Hyper-Threading Technology and core-speeds up to 3.6GHz and beyond, Intel's LGA775 Pentium 4 is one of the fastest desktop processors to date. Intel 925X chipset The Intel 925X Express chipset is a new breed of Intel's state-of-the-art desktop chipsets. It supports the latest PC technologies such as LGA775 Pentium 4 CPU, dual-channel DDR2 memory architecture, and PCI Express x16 graphics card interface. Its PAT (performance acceleration technology) function boosts the system performance without sacrificing any system stability. Companioned with the ICH6R Southbridge chip to provide integrated 4-port SATA RAID controller, PCI Express x1 interfaces and 8 high-speed USB 2.0 ports, the Intel 925X chipset is the best solution for high-end desktop system. Dual-Channel DDR2 533 DDR2 is the next generation memory technology to replace the current DDR. With initial speeds from 400 and 533MHz, DDR2 memory provides bandwidth up to 4.3GB/s. Doubled by the dual-channel architecture, the widest memory bus bandwidth 8.6GB/s is achieved on this motherboard. Intel PAT The Intel Performance Acceleration Technology (Intel PAT) delivers additional system-level performance by optimizing memory access between CPU and system memory, and allows increased performance at standard operating specifications. PCI Express Architecture PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better than AGP 8X in applications such as 3D gaming. PCI Express x1 also outperforms PCI interface with its exceptional high bandwidth up to 500MB/s. The high speed PCI Express interface creates new usages on desktop PCs e.g., Gigabit LAN, 1394b, and high-speed RAID systems. High Definition Audio Enjoy high-end sound system on your PC! The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer. The Dolby Digital Live technology from Dolby Lab encodes the multi-channel audio source into AC-3 bit-stream and outputs it to S/PDIF port in real time. IEEE 1394 IEEE 1394 interface provides high speed digital interface for audio / video appliances such as digital television, digital video camcorders, storage peripherals & other PC portable devices. Serial ATA & IDE RAID The onboard Silicon Image Sil3114R and ITE 8212F RAID controllers plus the Intel ICH6R southbridge provide the best solution to your RAID requirements on different storage standards. The Intel ICH6R supports RAID 0, 1 and Intel Matrix RAID Technology on 4 Serial ATA ports. The Silicon Image Sil3114R controller offers four additional SATA interfaces and allows RAID 0, 1, 10, JBOD, and a RAID software patch to support RAID 5. For IDE hard disk drives, the ITE 8212F controller provides RAID 0, 1 , 0+1 functionality for two ATA133 channels. ASUS Q-Fan2 ASUS Q-Fan2 technology intelligently adjusts both CPU fan and chassis fan speeds according to system loading to ensure quiet, cool and efficient operation. S/PDIF-out on Back I/O Port This motherboard provides convenient connectivity to external home theater audio systems via an optical or coaxial S/PDIF-out (SONY-PHILIPS Digital Interface) jack. It allows

Key Features

ASUS P5AD2 Deluxe. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T), Compatible processor series: Intel® Celeron®, Intel® Pentium® 4. Supported memory types: DDR2-SDRAM, Maximum internal memory: 4 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA, SATA II, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
