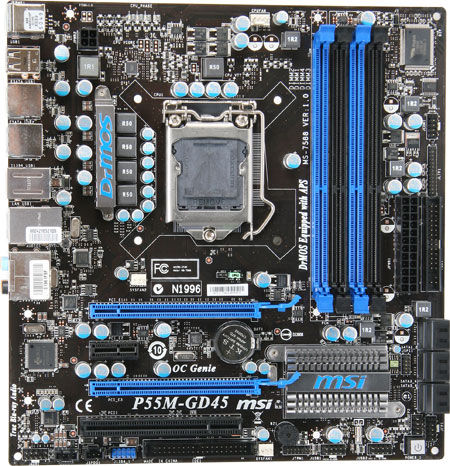

MSI P55M-GD45 motherboard LGA 1156 (Socket H) micro ATX
Brand: MSI · SKU: P55M-GD45 · MPN: P55M-GD45 · Category: Components
MSI P55M-GD45, Intel, LGA 1156 (Socket H), 16 GB, 0, 1, Realtek RTL8111DL, Fast Ethernet. MSI P55M-GD45 motherboard LGA 1156 (Socket H) micro ATX (part number P55M-GD45) is an enterprise components product available from Server Tech Central. Key specifications include depth 234 mm, width 244 mm, pci slots 1, raid levels 0, 1, audio output Realtek ALC889 / ALC888S, microphone in Yes, tpm connector Yes, lan controller Realtek RTL8111DL. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 234 mm |
|---|---|
| Width | 244 mm |
| PCI slots | 1 |
| RAID levels | 0, 1 |
| Audio output | Realtek ALC889 / ALC888S |
| Microphone in | Yes |
| TPM connector | Yes |
| LAN controller | Realtek RTL8111DL |
| CD/AUX audio in | Yes |
| Processor socket | LGA 1156 (Socket H) |
| CPU fan connector | Yes |
| Headphone outputs | 6 |
| Power source type | ATX |
| USB 2.0 connectors | 2 |
| Networking features | Fast Ethernet |
| PS/2 ports quantity | 2 |
| PCI Express x1 slots | 1 |
| S/PDIF out connector | Yes |
| eSATA ports quantity | 2 |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 2 |
| Number of memory slots | 4 |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 10 |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 234 mm |
Product Description
CPU - Supports Intel i5 / i7 based processors in LGA1156 package. Chipset - Intel P55 Chipset. - Supports QPI up to 6.4GT/s. - Hi-Speed USB (USB2.0) controller, 480Mb/sec. - 6 SATAII ports with transfer rate up to 3Gb/s. - PCI Master v2.3, I/O APIC. - ACPI 2.0 compliant. - Serial ATA RAID 0/1/5/10. - Integrated AHCI controller. Main Memory - Supports four unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600/2000/2133 SDRAM, 16GB Max. - Supports 1Gb/ 2Gb/ 4Gb DRAM size. - Supports Dual channel mode. Slots - 2 PCI Express gen2 x16 slots. - PCI_E1 supports x16 speed & PCI_E3 supports x4 speed. - supports ATI Crossfire. - 1 PCI Express gen2 x1 slots. - 1 PCI slots, support 3.3V/ 5V PCI bus Interface.
Key Features
MSI P55M-GD45. Processor manufacturer: Intel, Processor socket: LGA 1156 (Socket H). Maximum internal memory: 16 GB. RAID levels: 0, 1. LAN controller: Realtek RTL8111DL, Networking features: Fast Ethernet. Motherboard form factor: micro ATX, Audio output channels: 7.1 channels, Power source type: ATX
