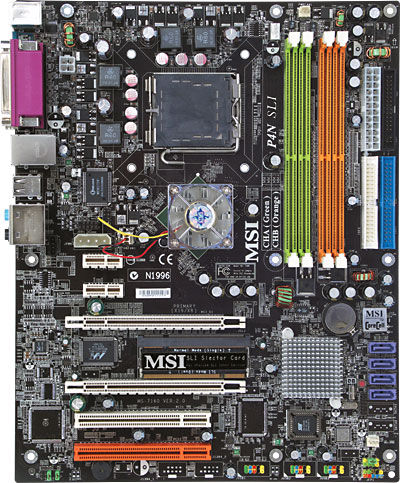

MSI P4N SLI LGA 775 (Socket T) ATX
Brand: MSI · SKU: P4N SLI-FI · MPN: P4N SLI-FI · Category: Components
MSI P4N SLI, Intel, LGA 775 (Socket T), 16 GB, 10/100/1000 Fast Ethernet, ATX, ATX. MSI P4N SLI LGA 775 (Socket T) ATX (part number P4N SLI-FI) is an enterprise components product available from Server Tech Central. Key specifications include audio output 7.1 RealTek ALC850, expansion slots PCI Express x16 2x PCI Express x1 slots 2x 32-bit v2.3 Master PCI, processor socket LGA 775 (Socket T), power source type ATX, networking features 10/100/1000 Fast Ethernet, processor manufacturer Intel, maximum internal memory 16 GB, motherboard form factor ATX. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| I/O ports | 1 x Parallel port 1 x Serial port (COM 1) 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x Coaxial SPDIF out 1 x 6 in 1 Audio jack (S/SPDIF out) 1 x IEEE1394 port 4 x USB 2.0 ports 1 x RJ45 LAN Jacks |
|---|---|
| Audio output | 7.1 RealTek ALC850 |
| Expansion slots | PCI Express x16 2x PCI Express x1 slots 2x 32-bit v2.3 Master PCI |
| Processor socket | LGA 775 (Socket T) |
| Power source type | ATX |
| Networking features | 10/100/1000 Fast Ethernet |
| Processor manufacturer | Intel |
| Maximum internal memory | 16 GB |
| Motherboard form factor | ATX |
| Warranty | 3-Year Warranty |
Product Description
Supports Socket 775 for Intel® P4 5XX, 6XX, P4EE, *Pentium D 8XX and Celeron D processors. Supports FSB 1066/800/533MHz. Supports EIST technology. Supports Intel® Hyper-Threading technology. Chipset NVIDIA® nForce4 SLI Intel Edition Chipset - HyperTransport link to nVidia MCP04 south bridge - Supports 2 PCI Express x 16 and 1 PCI Express x 1 interface - Supports dual channel, DDR2 533/667 NVIDIA® MCP04 (for nForce4 SLI Intel Edition) Chipset - Integrate SATA-II controller, four drives - Dual Fast-ATA 133 IDE controller, for four devices - IEEE 802.3 nVIDIA MAC for 1000BASE-T Supports dual channel DDR2 533/667, using four 240-pin/1.8V DDR2 DIMMs. Supports a maximum memory size up to 16GB. Two PCI Express x16 slot (supports PCI Express Bus specification v1.0a compliant) Normal mode Primary PCI-E slot is compatible with PCI Express x 16 Secondary PCI-E slot is compatible with PCI Express x 1 SLI mode Primary PCI-E slot is compatible with PCI Express x 8 Secondary PCI-E slot is compatible with PCI Express x 8 Two PCI Express x1 slots (support PCI Express Bus specification v1.0a compliant) Two 32-bit v2.3 Master PCI bus slots (support 3.3v/5v PCI bus interface) On-Board IDE An IDE controller on the NVIDIA® MCP04(for nForce4 SLI Intel Edition) chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA133/100/66 operation modes. - Can connect up to 4 IDE devices. - Supports RAID 0, 1, 0+1, RAID 5 or JBOD mode. MCP04(for nForce4 SLI Intel Edition) supports 4 SATA II ports. - Transfer rate is up to 300 MB/s. - Supports RAID 0, 1, 0+1, RAID 5 or JBOD mode. NV RAID Supports up to 4 SATA and 4 ATA133 Hard drives. - RAID 0, 1, 0+1, 5 or JBOD is supported. - Supports up to 8 drives for RAID function. 7.1 channel audio codec RealTek ALC850. - Compliance with AC97 v2.3 Spec. - Meet PC2001 audio performance requirement. Supports 10/100/1000 Fast Ethernet by nForce4 SLI Intel Edition MCP04 south bridge. 10 USB ports - Controlled by MCP04(for nForce4 SLI Intel Edition) chip. - 4 ports in the rear I/O, 6 ports via the external bracket. VIA® 6306 chipset - Supports up to three 1394 ports. (Rear panel x1, front x2) - Transfer rate is up to 400Mbps. - ATX 24-Pin power connector - 4-pin ATX 12V power connector - 4-pin GPU power connector - CPU / System / Power / NB FAN connectors - 1 x IrDA infrared module header - 1 x MSI D-Bracket 2 connector - CD-in connector - IrDA infrared module header - Chassis intrusion switch connector - Clear CMOS button - Front panel audio connector - Front panel connector - 2 x IEEE1394 connector support additional 2 ports - 3 x USB 2.0 connector support additional 6 ports - 1 x Floppy disk drive connector - 4 x serial ATA connectors - 2 x ATA133 HD connectors
Key Features
MSI P4N SLI. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T). Maximum internal memory: 16 GB. Networking features: 10/100/1000 Fast Ethernet. Motherboard form factor: ATX, Power source type: ATX. Audio output: 7.1 RealTek ALC850
