Brand: Zippy (Athena/Emacs) · SKU: P2H-5500V · MPN: P2H-5500V · Category: Components

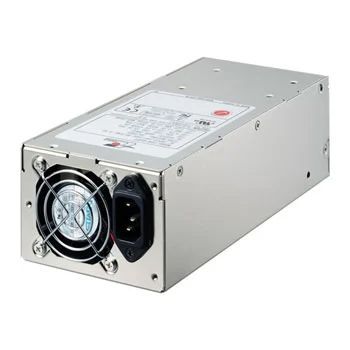

A 500W, 2U, ATX Industrial Power Supply from Zippy (also marketed as Athena/Emacs) designed for Server, Workstation, Storage Systems, and IPC applications. It features an 80 PLUS Bronze rating, support for PMBus 1.1, Fan Reverse Option, and comprehensive protections including OVP/SCP/OCP/OPP. It supports remote on/off control and 3.3V & 5V remote sensing. The unit meets safety standards like UL, CUL, and TUV.
| Efficiency | 83% Typical at 115VAC, Full Load (Also cited as 80 PLUS BRONZE) |
|---|---|
| Form Factor | 2U Single, ATX |
| Protections | OVP, SCP, OCP, OPP |
| Hold-up Time | 16mS Minimum at Full Load & Nominal Input Voltage |
| Output Power | 500 Watts |
| Input Frequency | 47~63 Hz |
| EMI Noise Filter | FCC Class A, CISPR22 Class A |
| Input Voltage AC | 90~264 VAC Full Range |
| Operating Temperature Range | 0℃～40℃ (Min.) to 50℃ (Max.) |
| Warranty | 36 months (Return to base via Scan example) |
| Weight | 1.88 kg (Net/Gross) |
| Dimensions | 215(D) x 100(W) x 70(H) mm; 8.46 x 3.94 x 2.76 inches |
The P2H-5500V is a 500W power supply intended for chassis assembly in 2U rackmount server, workstation, or storage system builds. Key electrical specifications include a universal AC input (90-264V), high dielectric withstand capability (1800 VAC), and protection features. The unit is RoHS compliant and meets various international standards.
