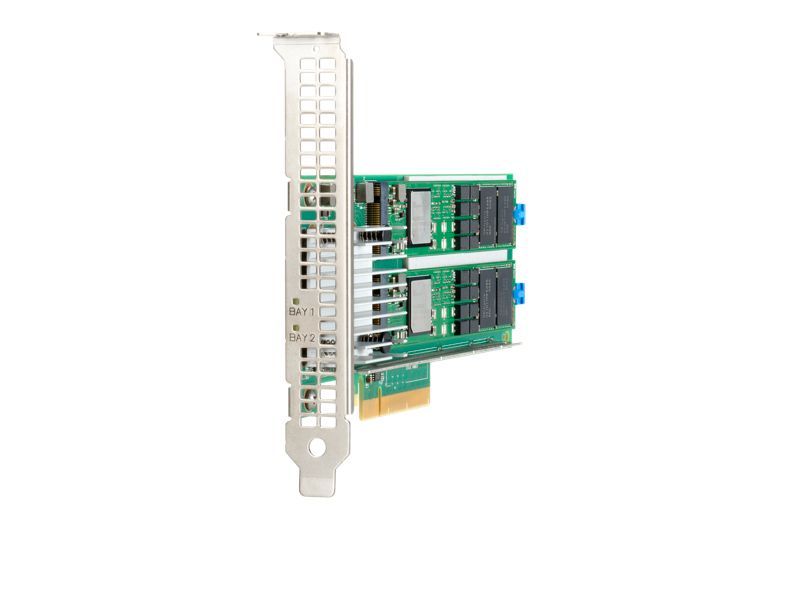

HPE NS204i-p x2 Lanes NVMe PCIe3 x8 OS Boot Device
Brand: HPE · SKU: P12965-B21 · MPN: P12965-B21 · Category: Storage
HPE NS204i-p is a dual drive NVMe OS boot device using a PCIe 3.0 x8 interface, designed for compatible HPE ProLiant servers and dedicated operating system storage.
Specifications
| Cache | N/A |
|---|---|
| Lanes | x2 |
| Battery | N/A |
| Security | Firmware Root of Trust (FW RoT) |
| Workload | OS Boot Only |
| Boot Mode | UEFI |
| RAID Type | Hardware (RAID-on-Chip) |
| Compliance | RoHS, Lot 9 |
| Controller | Marvell 88NR2241-B |
| RAID Level | Dedicated Hardware RAID 1 |
| Form Factor | PCIe Half-Height, Half-Length (HHHL) Card |
| Product Type | Storage controller |
| Disk Interface | NVMe |
| Usable Capacity | 480 GB |
| Write-back Cache | No |
| Host Bus Interface | PCIe Gen3 x8 (x4 Electrical) |
| HPE OneView Support | Monitored, Not Managed |
| Max Storage Devices | 2 |
| OS/Hypervisor Support | Windows, Linux, VMware |
| Warranty | 3 Year Limited Warranty |
| Weight | 15.52 oz |
| Dimensions | 24.1 x 31.75 x 5.59 cm (9.49 x 12.5 x 2.2 in) |
Key Features
The HPE NS204i-p NVMe OS Boot Device is a dedicated server boot solution designed to provide high speed operating system storage in compatible HPE ProLiant servers. It uses NVMe solid state storage and a PCIe 3.0 x8 host interface, providing a fast boot platform while leaving the server's primary drive bays available for application data and other storage requirements. The NS204i-p is designed as an OS boot device rather than a general purpose storage expansion card. Its dedicated boot architecture can help separate operating system storage from application and data drives in supported server configurations.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this HPE NS204i-p x2 Lanes NVMe PCIe3 x8 OS Boot Device (P12965-B21) is 100% genuine HPE hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This HPE NS204i-p x2 Lanes NVMe PCIe3 x8 OS Boot Device includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the HPE NS204i-p x2 Lanes NVMe PCIe3 x8 OS Boot Device compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the P12965-B21.
