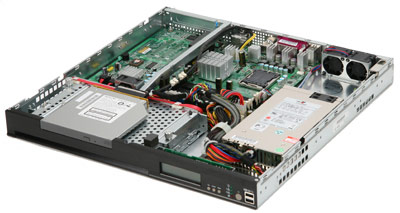

MSI P1-105-A2 server Intel® Pentium® 4 DDR2-SDRAM
Brand: MSI · SKU: P1-105A2 · MPN: P1-105A2 · Category: Servers
Specifications
| ECC | Yes |
|---|---|
| Expansion slots | 1 x PCI Express x8 |
| Processor family | Intel® Pentium® 4 |
| Motherboard chipset | Intel® 3000 |
| Internal memory type | DDR2-SDRAM |
| Maximum internal memory | 8 GB |
| Number of processors installed | 2 |
| Warranty | 3-Year Warranty |
Product Description
CPU • Supports Intel® Core™ 2 Duo / Pentium® 4 / Pentium® D processors in LGA775 package • Supports Intel® Hyper-Threading Technology Chipset • North Bridge: Intel® 3000 • South Bridge: Intel® ICH7R Main Memory • Supports four unbuffered ECC DIMMs of 1.8 Volt DDR2 SDRAM • Supports up to 8GB memory size • Supports Dual-Channel DDR2 533/667 memory interface Slots • One PCI Express x8 slot (this PCIE_1 slot will accept x8 cards and run at x8 speeds / with an extra PCIE_3 slot for MSI proprietary riser cards / PCI Express Bus specification v1.0a compliant) HDD Interface • IDE - Ultra DMA 66/100 IDE controller integrated in ICH7R - Supports PIO, Bus Master operation modes - Can connect up to two Ultra ATA drives • SATA - SATA II controller integrated in ICH7R - Up to 300MB/sec data transfer rate - Can connect up to two SATA devices - Supports AHCI controller with SATA RAID 0, SATA RAID 1 Onboard Peripherals • Front I/O - LCD Front Panel - Slim CD-ROM Drive - LED Indicators - Power Button - USB Ports - LCD Control Buttons Rear I/O - Parallel Port - PS/2 Mouse/Keyboard Port - Serial Port - VGA Port - USB Ports - Gigabit LAN Jacks Onboard Graphics - XGI Z7 Graphics Controller - Onboard 16MB Video SDRAM Onboard LAN • Supports Gigabit Ethernet by Intel 82573V/L Certification • Safety: UL, cUL, BSMI • EMI: CE/FCC Class A, BSMI Power Management Features • Wake up on LAN (WOL), wake up on serial ring, wake up on PCI • RTC alarm and wake up • Wake up on keyboard/mouse/USB from S1 • Supports ACPI S1, S4, S5 function System Management • SMBus (I2C) - Temperature, voltage, and fan monitors - Chassis intrusion
Key Features
MSI P1-105-A2. Processor family: Intel® Pentium® 4. Internal memory type: DDR2-SDRAM
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MSI P1-105-A2 server Intel® Pentium® 4 DDR2-SDRAM (P1-105A2) is 100% genuine MSI hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MSI P1-105-A2 server Intel® Pentium® 4 DDR2-SDRAM includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MSI P1-105-A2 server Intel® Pentium® 4 DDR2-SDRAM compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the P1-105A2.
