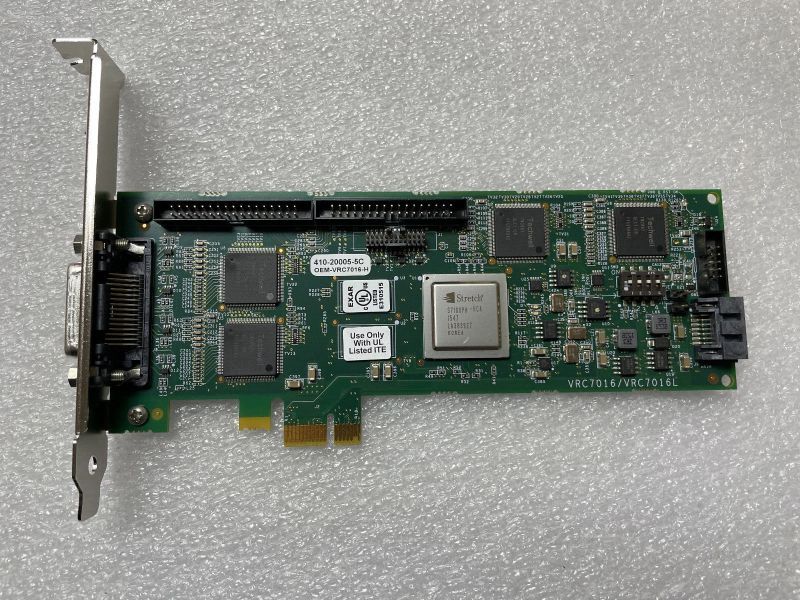

16-Channel D1 CCTV Low-Profile PCIe DVR Card with Standard-Height Bracket
Brand: MaxLinear (formerly Exar) · SKU: OEM-VRC7016-H · MPN: OEM-VRC7016-H · Category: Components
The OEM-VRC7016-H is a 16-channel PCIe DVR add-in card designed for professional video surveillance equipment OEMs. It features the Exar S7100 software configurable processor and performs H.264 High Profile encoding on 16 channels of standard definition D1 NTSC/PAL video at full resolution and frame rate. It supports various resolutions including D1, CIF, 4CIF, DCIF, and QCIF, and multiple CODECs (H.264 AVC High/Main/Baseline Profile, H.264 SVC, MPEG4, MJPEG). The card has a high bandwidth PCIe interface for host connectivity and supports sixteen channels of alarm I/O and an RS485 interface for remote camera control via an I/O header (with an optional I/O card). The VRC7016-H variant specifically comes with a standard-height bracket, although the core board design is low-profile (short-form-factor) for embedding in compact PCs/servers. It is controlled via an Intelligent Encoder Software Development Kit (SDK) for Linux or Windows and is compatible with all Stretch S7000-based PCIe card
Specifications
| I/O | Sixteen channels of alarm I/O |
|---|---|
| CODEC | H.264 AVC High/Main/Baseline Profile, H.264 SVC, MPEG4, MJPEG |
| HD Support | No |
| Resolution | D1, CIF, 4CIF, DCIF, QCIF |
| Form Factor | Low Profile Core, Full Height Bracket Provided |
| Bracket Type | Standard-Height Bracket |
| # of Channels | 16 |
| Interface Type | PCIe, RS-485, Audio |
| Processor Type | Exar S7100 (Stretch S7100) |
| Video Standard | NTSC, PAL |
| Multi-Stream Encode (MPIxels/sec) | 200 |
| Warranty | N/A |
| Weight | N/A |
| Dimensions | Low-profile short-form-factor card (with standard-height bracket) |
Key Features
The OEM-VRC7016-H is a 16-channel DVR PCI Express add-in card utilizing the S7100 processor for H.264 encoding of 16 channels of D1 video. It is designed for OEM integration into video surveillance systems, offering high compression and low cost per channel, and uses an SDK for control on Linux or Windows platforms. The '-H' designation signifies it includes the standard-height bracket.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this 16-Channel D1 CCTV Low-Profile PCIe DVR Card with Standard-Height Bracket (OEM-VRC7016-H) is 100% genuine MaxLinear (formerly Exar) hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This 16-Channel D1 CCTV Low-Profile PCIe DVR Card with Standard-Height Bracket includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the 16-Channel D1 CCTV Low-Profile PCIe DVR Card with Standard-Height Bracket compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the OEM-VRC7016-H.
