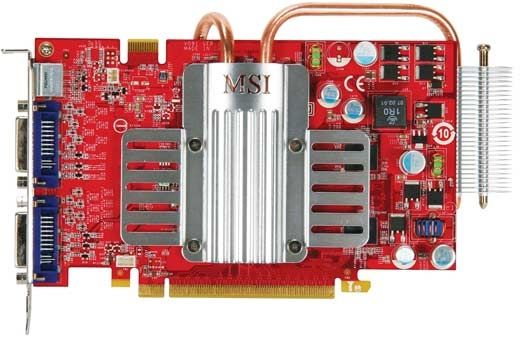

MSI Geforce 8600GT - 256MB, DDR3 GeForce 8600 GT GDDR3
Brand: MSI · SKU: NX8600GT-T2D256EZ/D3 · MPN: NX8600GT-T2D256EZ/D3 · Category: Components
MSI Geforce 8600GT - 256MB, DDR3, GeForce 8600 GT, GDDR3, 128 bit, 1400 MHz, 2048 x 1536 pixels
Specifications
| TV-out | Yes |
|---|---|
| Full HD | Yes |
| Memory bus | 128 bit |
| Dual Link DVI | Yes |
| OpenGL version | 2.0 |
| DirectX version | 10.0 |
| Mac compatibility | No |
| Data transfer rate | 22.4 Gbit/s |
| Graphics processor | GeForce 8600 GT |
| Maximum resolution | 2048 x 1536 pixels |
| Memory clock speed | 1400 MHz |
| Processor frequency | 540 MHz |
| Graphics card RAMDAC | 400 MHz |
| Shader model version | 4.0 |
| Texture Fill Rate (TFR) | 8.64 GTexel/s |
| Graphics card memory type | GDDR3 |
| Warranty | 3-Year Warranty |
Product Description
HDMI with Audio Integration Solution (Optional) The NVIDIA® GeForce® 8 Series graphics card supports HDMI with audio integration solution. With a DVI-to-HDMI adapter and an extra signal cord through the bracket, audio source from sound card(S/PDIF) can be integrated into HDMI interface by simply plugging the cord into the pinhead located on graphics card. Only 1 single HDMI cable is required while streaming audio/video data to flat-panel display devices, such as Plasma/LCD TVs, or projector. NVIDIA CineFX 5.0 Shading Architecture - Microsoft Vista Features - Vertex shaders - Support for Microsoft DirectX 10.0 Vertex Shader 4.0 - Encompass' Transform and Lighting - Displacement mapping - Geometry instancing Pixel shades - Support for DirectX 10.0 Pixel Shader 4.0 - Support for full pixel branching - Support for Multiple Render Targets (MRTs) - Infinite-length pixel programs - Next-generation texture engine - Full 128-bit studio-quality floating point precision through the entire rendering pipeline,with native hardware support for 32 bpp,64 bpp,and 128 bpp rendering modes. NVIDIA SLI Technology - Patented hardware and software technology allows two GPUs to run in parallel to scale performance - Scales performance on over 60 top PC games and applications - Support for NVIDIA nView multi-display for scalable performance across two displays. API Support - Complete DirectX support,including the latest version of Microsoft DirectX 10.0 Shader Model 4.0 - Full OpenGL support,including OpenGL 2.0 NVIDIA Digital Vibrance Control (DVC) 3.0 Technology - DVC color controls - DVC image sharpening controls NVIDIA UltraShadow II Technology - Designed to enhance the performance of shadow-intensive games,like id Software's Doom 3 NVIDIA Intellisample 4.0 Technology - Advanced 16X anisotropic filtering (up to 128 taps) - Rotated-grid antialiasing for removing jagged edges for incredible edge quality - Support for advanced lossless compression algorithms for color, texture,and z-data at higher resolutions and frame retes - Fast z-clear - Support for normal map compression - New transparent supersampling and transparent multisampling antialiasing modes. NVIDIA PureVideo Technology - Patented hardware and software technology allows two GPUs to run in parallel to scale performance - Three dedicated video engines - MPEG-2 HD and WMV HD video playback up to 1920 X1080p resolution - H 264 hardware decode acceleration - Decryption supported for all standard HD Video formats-AES-128 CTR mode, AES-128 CBC mode, and AES-128 ECB mode. - Industry's most advanced video algorithms - Overlay color temperature correction - Microsoft Video Mixing Renderer (VMR) support for multiple video windows with full video quality and features in each window - Integrated HDTV output. 64-Bit Texture Filtering and Blending - Full floating point is supported throughout entire pipeline - Floating point filtering improves the quality of images in motion - Floating point texturing drivers new levels of clarity and image detail - Floating point frame buffer blending gives detail to special effects like motion blur and explosions Performances - Graphics Bus Technology: PCI Express - Core Clock (MHz): 540 - Shader Clock (MHz): 1188 - Memory Clock (MHz): 1400 - Memory Amount: 256MB DDR3 - Memory Interface: 128-bit - Memory Bandwidth (GB/sec): 22.4 - Fill Rate (Billion pixels/sec): 8.64 - RAMDACs (MHz): 400
Key Features
MSI Geforce 8600GT - 256MB, DDR3. Graphics processor: GeForce 8600 GT, Processor frequency: 540 MHz. Graphics card memory type: GDDR3, Memory bus: 128 bit, Memory clock speed: 1400 MHz. Maximum resolution: 2048 x 1536 pixels. DirectX version: 10.0, OpenGL version: 2.0, Dual Link DVI
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MSI Geforce 8600GT - 256MB, DDR3 GeForce 8600 GT GDDR3 (NX8600GT-T2D256EZ/D3) is 100% genuine MSI hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MSI Geforce 8600GT - 256MB, DDR3 GeForce 8600 GT GDDR3 includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MSI Geforce 8600GT - 256MB, DDR3 GeForce 8600 GT GDDR3 compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the NX8600GT-T2D256EZ/D3.
