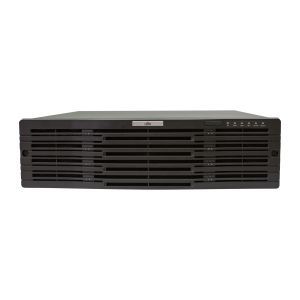

Brand: Uniview · SKU: NVR516-128 · MPN: NVR516-128 · Category: Security
The NVR516-128 is a 128-channel Network Video Recorder (NVR) supporting Ultra 265/H.265/H.264 video formats. It allows for up to 12 Megapixels resolution recording and features 16 SATA HDD bays, supporting up to 10TB per HDD, with configurable RAID schemes (0, 1, 5, 6, 10, 50, 60) and hot-swap capability. It supports 2 miniSAS Interfaces and optional redundant power supply. Video output includes 2-ch HDMI (up to 4K resolution) and 1-ch VGA, with independent outputs provided. It includes ANR technology for enhanced storage reliability during network disconnection and supports cloud upgrade and N+1 Hot spare. It also supports third-party IP cameras with ONVIF conformance (Profile S, G, C, Q, A, T). The unit has 4 RJ-45 10M/100M/1000M adaptive Ethernet Interfaces and 2 1000M SFP Ethernet Interfaces. It supports two-way audio via a 1-ch BNC input and features 4 x USB3.0 ports on the rear panel. Note: HDMI audio output is not supported for the maximum 4K resolution output. The maximum total
| VGA Output | 1-ch, up to 1920x1080p/60Hz |
|---|---|
| Audio Input | 1-ch, BNC |
| HDD Support | 16 SATA interfaces, up to 10TB each |
| HDMI Output | 2-ch, up to 4K (3840×2160)/30Hz |
| RAID Support | RAID 0, 1, 5, 6, 10, 50, 60 |
| USB Interface | 4 x USB3.0 (Rear Panel) |
| IP Video Input | 128-ch |
| Network Interface | 4 RJ-45 10M/100M/1000M + 2 1000M SFP |
| Video Compression | Ultra 265/H.265/H.264 |
| Incoming Bandwidth | 512Mbps |
| Outgoing Bandwidth | 384Mbps |
| Max Recording Resolution | 12MP |
| Warranty | Not explicitly found, typically varies by retailer/region. |
| Weight | 22 lbs |
| Dimensions | 482mm × 477mm × 131mm (18.8"× 19.0" ×5.1") |
The Uniview NVR516-128 is a high-capacity, 128-channel NVR designed for professional surveillance systems, supporting high-resolution recording up to 12MP and 4K output. Key features include extensive RAID storage support with 16 hot-swappable SATA bays, advanced video compression (Ultra 265/H.265), ANR technology, and ONVIF compatibility for third-party cameras.
Enterprise Hardware Buyers
Production Workload Support
"Engineered for stability, the NVR516-128 fits seamlessly into Production Workload Support, providing reliable service for Enterprise Hardware Buyers managing complex hardware stacks."
Yes, this Uniview NVR516-128 128 Channel RAID NVR (NVR516-128) is 100% genuine Uniview hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Uniview NVR516-128 128 Channel RAID NVR includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the NVR516-128.
