Brand: Ubiquiti · SKU: NSM5 · MPN: NSM5 · Category: Components

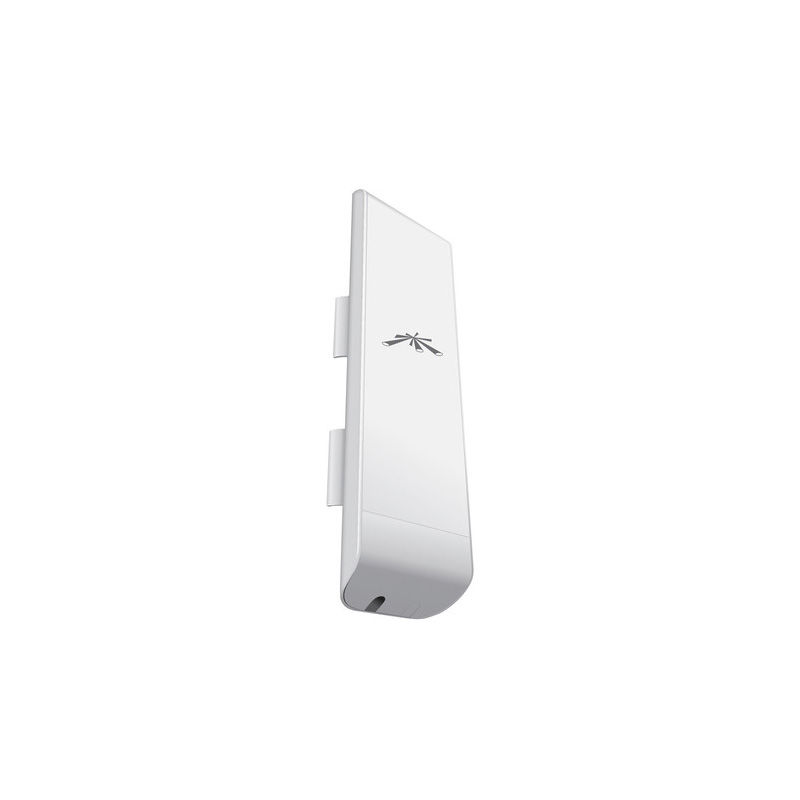

The Ubiquiti airMAX NanoStation M5 (NSM5) is a versatile and economical outdoor wireless CPE device operating on the 5 GHz band, utilizing airMAX (MIMO TDMA) technology for enhanced performance and scalability. It is suitable for point-to-point (PtP) or point-to-multipoint (PtMP) networks, capable of links up to 15+ km. It features a redesigned, compact form-factor, integrated antenna with 14.6-16.1 dBi gain, dual Ethernet ports (one with software-enabled PoE output for secondary device power), and intelligent PoE powering via an included 24V adapter. It supports airOS, airView, and airControl software technologies. The enclosure is outdoor UV-stabilized plastic and includes a pole-mount kit.
| Memory | 32MB SDRAM, 8MB Flash (or 64 MB DDR2, 8 MB Flash on some listings) |
|---|---|
| Mounting | Pole-mount (Kit included) |
| Beamwidth | 43° (H-pol) / 41° (V-pol) / 15° (Elevation) |
| Enclosure | Outdoor UV Stabilized Plastic |
| Frequency | 5 GHz |
| Max. VSWR | 1.6:1 |
| Processor | Atheros MIPS 24KC, 400MHz (or Atheros MIPS 74Kc, 560 MHz on some listings) |
| Antenna Gain | 14.6-16.1 dBi |
| Polarization | Dual Linear |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Operating Humidity | 5 to 95% Noncondensing |
| Cross-pol Isolation | 22 dB Minimum |
| Networking Interface | (2) 10/100 MbE RJ45 ports |
| Operating Temperature | -30 to 75° C (-22 to 167° F) |
| Power Supply Included | 24V, 0.5A PoE adapter |
| Max. Power Consumption | 8W |
| Operating Frequency Range | 5170-5875 MHz (Worldwide), 5725-5850 MHz (USA), 5250-5850 Mhz (USA DFS) |
| Warranty | Varies by retailer/region; Datasheet references compliance certifications but not explicit warranty period. |
| Weight | 400 g (14.1 oz) / 0.9 lb |
| Dimensions | 294 x 80 x 31 mm (11.6 x 3.1 x 1.2") |
The Ubiquiti airMAX NanoStation M5 (NSM5) is an award-winning and versatile outdoor wireless CPE designed for PtP or PtMP links up to 15+ km. It features airMAX TDMA technology to improve performance and scalability by managing airtime efficiency. It includes dual Ethernet ports, one offering software-enabled PoE output for powering secondary devices like IP cameras.
Yes, this Ubiquiti airMAX NanoStation M5 (NSM5) (NSM5) is 100% genuine Ubiquiti hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Ubiquiti airMAX NanoStation M5 (NSM5) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the NSM5.
