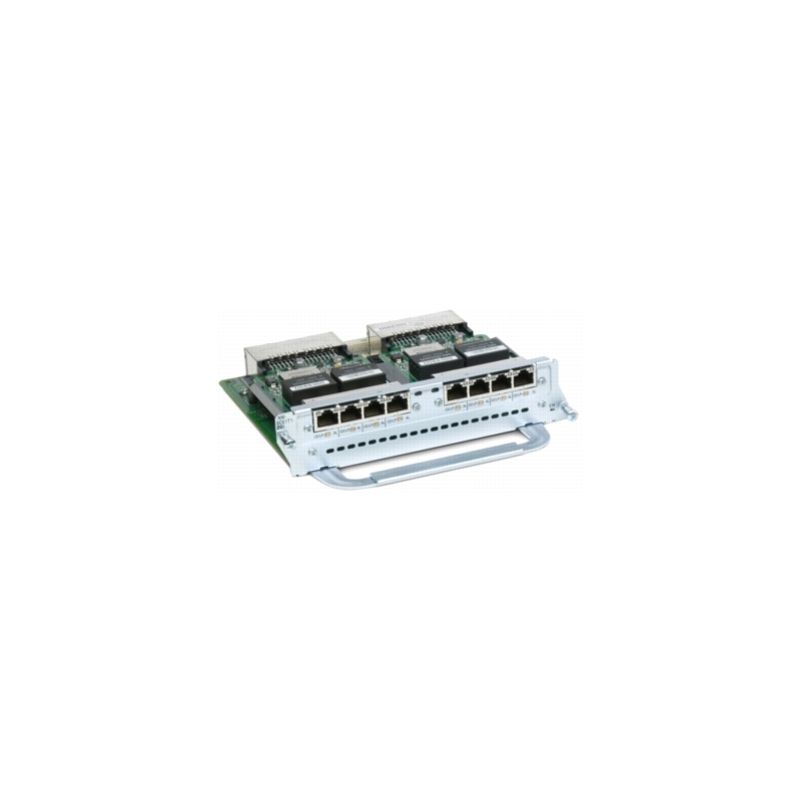

NM-8CE1T1-PRI, Cisco NM-8CE1T1-PRI Network Module, 8xT1/E1 ports/Channelized PRI/Router Expansion

Brand: Cisco · SKU: NM-8CE1T1-PRI · MPN: NM-8CE1T1-PRI · Category: Networking

NM-8CE1T1-PRI, Cisco NM-8CE1T1-PRI Network Module, 8xT1/E1 ports/Channelized PRI/Router Expansion
Request for Quote
In Stock • 10 units

8 port channelized T1/E1 and PRI network module Cisco Router Network Module

View Routers Products

Specifications

ModelNM-8CE1T1-PRI
Ports1, 2, or 8 T1/E1 ports on RJ-48C connectors.
Weightkg
Description8 Port Channelized T1/E1 and ISDN PRI Network Module
Line CodingE1: HDB3; T1: AMI and B8ZS.
Output LevelsE1: Short-haul/long-haul; T1 LBO: 0, -7.5, or -15 dB.
Product NumberNM-8CE1T1-PRI
Alarm DetectionYellow Alarm - Receive/Send from/to network; Blue Alarm - Receive AIS from network; Red Alarm - Loss of network signal.
Framing FormatsE1: CRC4; T1: SF and ESF.
LEDs (Per Port)CD/LP: Off = No carrier detect; Green On = Carrier detect; Yellow On = Port in loopback mode. AL: Off = No alarms; Yellow On = Port in alarm mode.
LEDs (Per Module)EN: Off = Card not available; On = Card enabled (NM-8CE1T1-PRI only).
Relative Humidity5–95% noncondensing
Remote ManagementCisco CNS 2100 Series Intelligence Engine (IE2100); CiscoWorks.
Signaling DebuggingISDN Q.921 and Q.931 decode; all other applicable Cisco IOS Software debugs.
Relevant MIB SupportT1 MIB (RFC1406-MIB); Cisco Integrated DSU/CSU MIB (CISCO-ICSUDSU-MIB).
Operating Temperature32 to 104 °F (0 to 40 °C)
Dimensions (H x W x D)1.59 x 7.10 x 7.29 in. (4.0 x 18.0 x 18.5 cm)
Module and HWIC WeightsHWIC-1CE1T1-PRI: 0.18 lb (0.08 kg); HWIC-2CE1T1-PRI: 0.19 lb (0.09 kg); NM-8CE1T1-PRI: 1.4 lb (0.63 kg).
Line Bit Rate (per Port)E1: 2.048 Mbps; T1: 1.544 Mbps.
Nonoperating Temperature-40 to 158 °F (-40 to 70 °C)
Diagnostic Loopback SupportE1 loopback modes: Controller local loopback; Interface local loopback. T1 loopback modes: Interface local loopback; Interface remote loopback; Controller local loopback; Controller remote loopback. CSU loopback modes for T1 CSU: DTE loopback; Network loopback; Payload loopback.
Warranty3-Year Warranty
