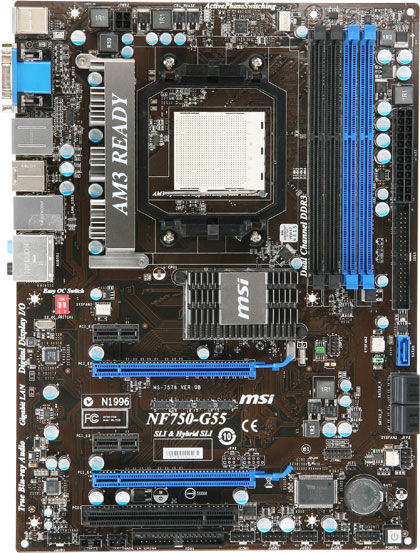

MSI NF750-G55 motherboard Socket AM3 ATX
Brand: MSI · SKU: NF750-G55 · MPN: NF750-G55 · Category: Components
MSI NF750-G55, AMD, Socket AM3, 16 GB, 0, 1, 1+0, 5, JBOD, 512 MB, Realtek RTL8211CL
Specifications
| Depth | 224 mm |
|---|---|
| Width | 305 mm |
| PCI slots | 1 |
| RAID levels | 0, 1, 1+0, 5, JBOD |
| Audio output | Realtek ALC889 |
| Microphone in | Yes |
| TPM connector | Yes |
| LAN controller | Realtek RTL8211CL |
| CD/AUX audio in | Yes |
| Processor socket | Socket AM3 |
| CPU fan connector | Yes |
| Headphone outputs | 6 |
| Power source type | ATX |
| USB 2.0 connectors | 3 |
| HDMI ports quantity | 1 |
| Networking features | Fast Ethernet |
| PS/2 ports quantity | 2 |
| DVI-D ports quantity | 1 |
| PCI Express x1 slots | 2 |
| S/PDIF out connector | Yes |
| eSATA ports quantity | 1 |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 2 |
| Number of memory slots | 4 |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 224 mm |
Product Description
CPU - Support AMD Phenom II/AthlonII/Phenom with AM3 package. Hyper Transport Bus - HyperTransport 3.0 supporting speed up to 5200MT/s. Chipset - NVIDIA nForce 750a SLI single chipset. Main Memory - Supports Dual DDR3 800/1066/1333/1600. - 4 DDR3 DIMMs (240pin / 1.5V). - Supports a maximum memory size up to 16GB. Slots - 2 PCI Express x16 slots with x16 operation (PCI Express Bus SPEC V2.0 compliant). - When 2 PCI Express x16 slots are all installed, the PCIE x 16 lanes will auto arrange form x16/ x0 to x8/ x8. - 2 PCI Express x1 slots. - 1 PCI slots, support 3.3V/ 5V PCI bus interface. On-Board IDE - One IDE port by NVIDIA nForce 750a SLI. - Supports Ultra DMA 66/100/133 mode. - Supports PIO, Bus Master operation mode. - Can connect up to two IDE devices. On-Board SATA - 5 SATA II ports by NVIDIA nForce 750a SLI. - 1 eSATA II port by NVIDIA nForce 750a SLI. - Supports storage and data transfers at up to 3Gb/s. RAID Function - SATA II 1~5 support RAID 0/ 1/ 0+1 /5 or JBOD mode by NVIDIA nForce 750a SLI. Audio - Chipset integrated by Realtek ALC889. - Flexible 8-channel audio with jack sensing. - Compliant with Azalia 1.0 Spec. LAN - Supports 10/100/1000 Fast Ethernet by Realtek 8211CL.
Key Features
MSI NF750-G55. Processor manufacturer: AMD, Processor socket: Socket AM3. Maximum internal memory: 16 GB. RAID levels: 0, 1, 1+0, 5, JBOD. Maximum graphics card memory: 512 MB. LAN controller: Realtek RTL8211CL, Networking features: Fast Ethernet
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MSI NF750-G55 motherboard Socket AM3 ATX (NF750-G55) is 100% genuine MSI hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MSI NF750-G55 motherboard Socket AM3 ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MSI NF750-G55 motherboard Socket AM3 ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the NF750-G55.
