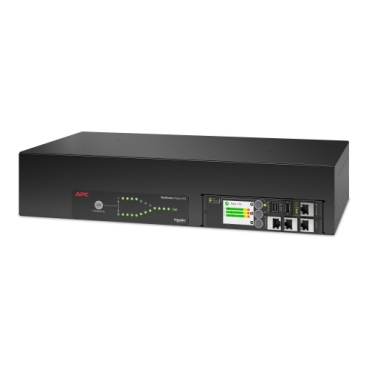

APC Netshelter Rack Automatic Transfer Switch, 2U, 30A, 208V, 2 L6-30P IN, 1 L6-30R OUT, 50/60Hz
Brand: Apc · SKU: Netshelter Rack Automatic Transfer Switch, 2U, 30A, 208V, 2 L6-30P IN, 1 L6-30R OUT, 50/60Hz · MPN: Netshelter Rack Automatic Transfer Switch, 2U, 30A, 208V, 2 L6-30P IN, 1 L6-30R OUT, 50/60Hz · Category: Networking
APC Netshelter Rack Automatic Transfer Switch, 2U, 30A, 208V, 2 L6-30P IN, 1 L6-30R OUT, 50/60Hz, Switched, 2U, Horizontal, Black, 1 AC outlet(s), NEMA L6-30R
Specifications
| Depth | 236 mm |
|---|---|
| Width | 432 mm |
| Height | 88 mm |
| Weight | 6.5 kg |
| Mounting | Horizontal |
| PDU types | Switched |
| Cable length | 2.44 m |
| Load capacity | 4992 VA |
| Package depth | 356 mm |
| Package width | 584 mm |
| Rack capacity | 2U |
| Package height | 210 mm |
| Package weight | 9 kg |
| Product colour | Black |
| AC outlet types | NEMA L6-30R |
| Maximum current | 30 A |
| AC input frequency | 50 - 60 Hz |
| AC outlets quantity | 1 AC outlet(s) |
| Nominal input voltage | 228 V |
| Nominal output voltage | 228 V |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Warranty | 3-Year Warranty |
| Weight | 6.5 kg |
| Dimensions | 432 mm x 236 mm x 88 mm |
Product Description
APC NetShelter Rack Automatic Transfer Switch (ATS) AP4431A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4431A is single phase 2U Rack ATS with 30A rated current, 208V rated voltage and 4992VA load capacity. For North America region, the Regulatory Derated Input Current is 24A. It comes with 2 NEMA L6-30P inlet and 1 NEMA L6-30R outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
Key Features
APC Netshelter Rack Automatic Transfer Switch, 2U, 30A, 208V, 2 L6-30P IN, 1 L6-30R OUT, 50/60Hz. PDU types: Switched, Rack capacity: 2U, Mounting: Horizontal. AC outlets quantity: 1 AC outlet(s), AC outlet types: NEMA L6-30R. Cable length: 2.44 m. Nominal input voltage: 228 V, Maximum current: 30 A, AC input frequency: 50 - 60 Hz. Width: 432 mm, Depth: 236 mm, Height: 88 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this APC Netshelter Rack Automatic Transfer Switch, 2U, 30A, 208V, 2 L6-30P IN, 1 L6-30R OUT, 50/60Hz (Netshelter Rack Automatic Transfer Switch, 2U, 30A, 208V, 2 L6-30P IN, 1 L6-30R OUT, 50/60Hz) is 100% genuine Apc hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This APC Netshelter Rack Automatic Transfer Switch, 2U, 30A, 208V, 2 L6-30P IN, 1 L6-30R OUT, 50/60Hz includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the APC Netshelter Rack Automatic Transfer Switch, 2U, 30A, 208V, 2 L6-30P IN, 1 L6-30R OUT, 50/60Hz compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the Netshelter Rack Automatic Transfer Switch, 2U, 30A, 208V, 2 L6-30P IN, 1 L6-30R OUT, 50/60Hz.
