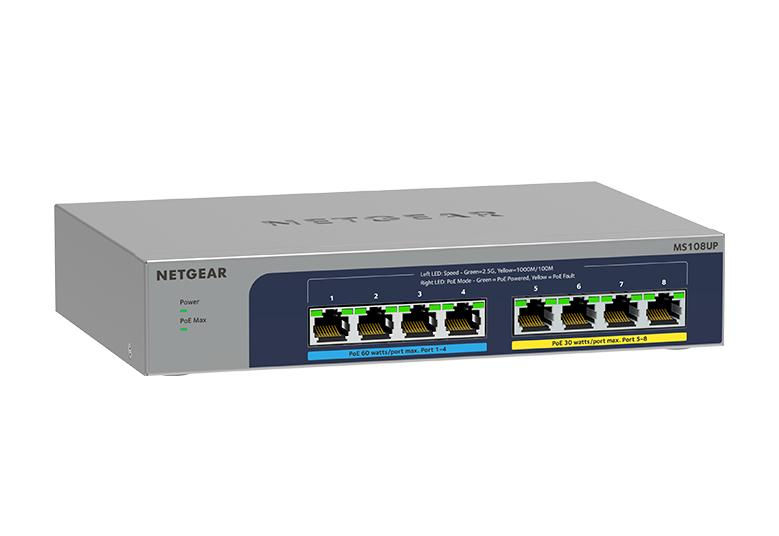

NETGEAR MS108UP Unmanaged 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE)
Brand: Netgear · SKU: NET-MS108UP-100NAS · MPN: MS108UP · Category: Components
NETGEAR MS108UP, Unmanaged, 2.5G Ethernet (100/1000/2500), Full duplex, Power over Ethernet (PoE), Wall mountable
Specifications
| Depth | 140 mm |
|---|---|
| Width | 210 mm |
| Height | 40 mm |
| Weight | 900 g |
| Fanless | Yes |
| 10G support | No |
| Full duplex | Yes |
| Half duplex | Yes |
| Switch type | Unmanaged |
| Auto-sensing | Yes |
| Jumbo frames | 12000 |
| Power source | DC |
| VLAN support | Yes |
| Certification | CB, CSA, CCC, BSMI, RCM |
| Input current | 4.7 A |
| Rack mounting | No |
| Auto MDI/MDI-X | Yes |
| Number of fans | 0 fan(s) |
| Wall mountable | Yes |
| Number of VLANs | 64 |
| DC input voltage | 54 V |
| Heat dissipation | 923.49 BTU/h |
| Housing material | Metal |
| Latency (1 Gbps) | 3.593 µs |
| Warranty | 3-Year Warranty |
| Weight | 900 g |
| Dimensions | 210 mm x 140 mm x 40 mm |
Product Description
NETGEAR brings the first Unmanaged Multi-Gigabit PoE++ switch MS108UP with 60Watts per port Ultra60 PoE++ technology, ideal for powerful PoE++ installations with PoE budgets up to 230W, a compact size, plug-and-play installation, and reliable performance at affordable prices. The new model MS108UP supports 2.5 Gigabit speed connectivity and Power-Over-Ethernet (PoE) that can provide up to 60W/port. The new switch model can power devices such as VoIP phones, surveillance IP cameras, wireless access points and many other applications. This new Unmanaged switch provides PoE Auto-Balance to help automatically balance the PoE power based on the device needs independent of PoE class detected. With the growing deployment of applications and an allin-one solution, providing multi-speed and high power to these applications would be ideal.
Key Features
NETGEAR MS108UP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 16000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt,.... DC input voltage: 54 V. Power over Ethernet (PoE). Wall mountable
Frequently Asked Questions
Is this product genuine OEM?
Yes, this NETGEAR MS108UP Unmanaged 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) (NET-MS108UP-100NAS) is 100% genuine Netgear hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This NETGEAR MS108UP Unmanaged 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the NETGEAR MS108UP Unmanaged 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the NET-MS108UP-100NAS.
