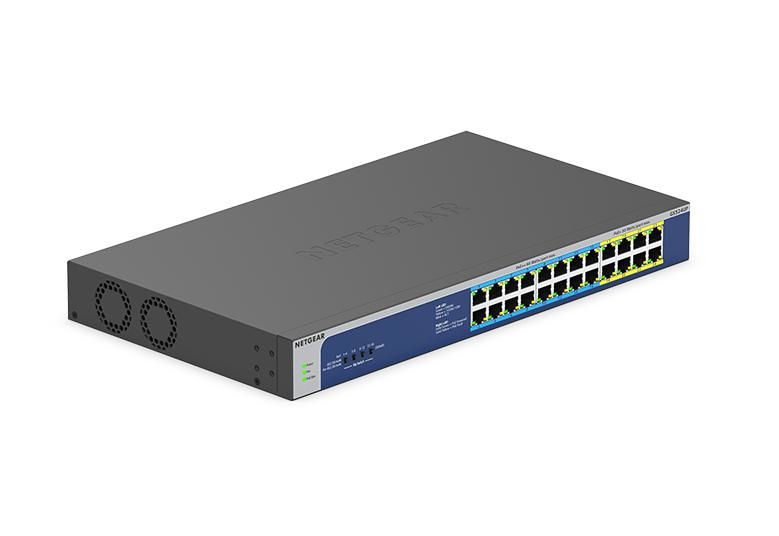

NETGEAR GS524UP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Brand: Netgear · SKU: NET-GS524UP-100NAS · MPN: GS524UP · Category: Components
NETGEAR GS524UP, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting, 1U
Specifications
| Depth | 220 mm |
|---|---|
| Width | 390 mm |
| Height | 43 mm |
| Weight | 3.1 kg |
| 10G support | No |
| Form factor | 1U |
| Full duplex | Yes |
| Half duplex | Yes |
| Switch type | Unmanaged |
| Power source | PoE |
| Input current | 8 - 4 A |
| Rack mounting | Yes |
| Auto MDI/MDI-X | Yes |
| LED indicators | Activity, Link, PoE |
| Number of fans | 2 fan(s) |
| Product colour | Grey |
| AC input voltage | 100 - 240 V |
| Heat dissipation | 1976.0232 BTU/h |
| Housing material | Metal |
| Latency (1 Gbps) | 12 µs |
| MAC address table | 8000 entries |
| AC input frequency | 50/60 Hz |
| Operating altitude | 0 - 3000 m |
| Switching capacity | 48 Gbit/s |
| Warranty | 3-Year Warranty |
| Weight | 3.1 kg |
| Dimensions | 390 mm x 220 mm x 43 mm |
Product Description
Instant Connectivity and Reliable Performance The NETGEAR Gigabit Unmanaged Switch series helps your business cost-effectively expand your network to Gigabit speeds and higher port counts. The GS524UP joins the series and offers 16 Ultra60 PoE++ ports and 8 PoE+ ports to power high-power PoE devices. With a total PoE power budget of 480W, deploy denser PoE+ and PoE++ devices to a single switch rather than multiple. The GS524UP is energy efficient, built to last, and rigorously tested to provide the reliability your business needs. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks. Powerful Ultra60 PoE++ Ideal for powering and connecting 802.11AX wireless access points, 4K/8K IP surveillance cameras, PoE lighting, and high power audio speakers, the GS524UP gives you a highly cost-effective and powerful switch with the best cost/PoE budget ratio. NETGEAR Ultra60 PoE++ Unmanaged Switches support the latest Energy Efficient Ethernet (IEEE 802.3bt) standard, powerful enough to support devices that require greater power. The GS524UP includes 16 PoE++ ports that can deliver up to 60W of power per port. PoE Mode Your business is always changing and growing, but not all your devices may be 802.3bt standard compatible. PoE mode on the GS524UP solves this problem by providing power to both pre-bt and bt standard devices. - GS524UP by default uses 802.3bt standard, only compatible for bt standard devices - 802.3bt Standard Devices: to power bt standard devices, select 802.3bt mode to receive 60W of power - Pre-802.3bt Standard Devices: to power up pre-802.3bt standard products, select the pre-802.3bt mode to receive more than 30W of power - If the GS524UP is set to pre-802.3bt mode but the device is standard 802.3bt, then PoE++ power will not be delivered to the device. The switch will only deliver 802.3af (<15W)
Key Features
NETGEAR GS524UP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3p, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
