Brand: Ubiquiti · SKU: NBE-5AC-GEN2 · MPN: NBE-5AC-GEN2 · Category: Components

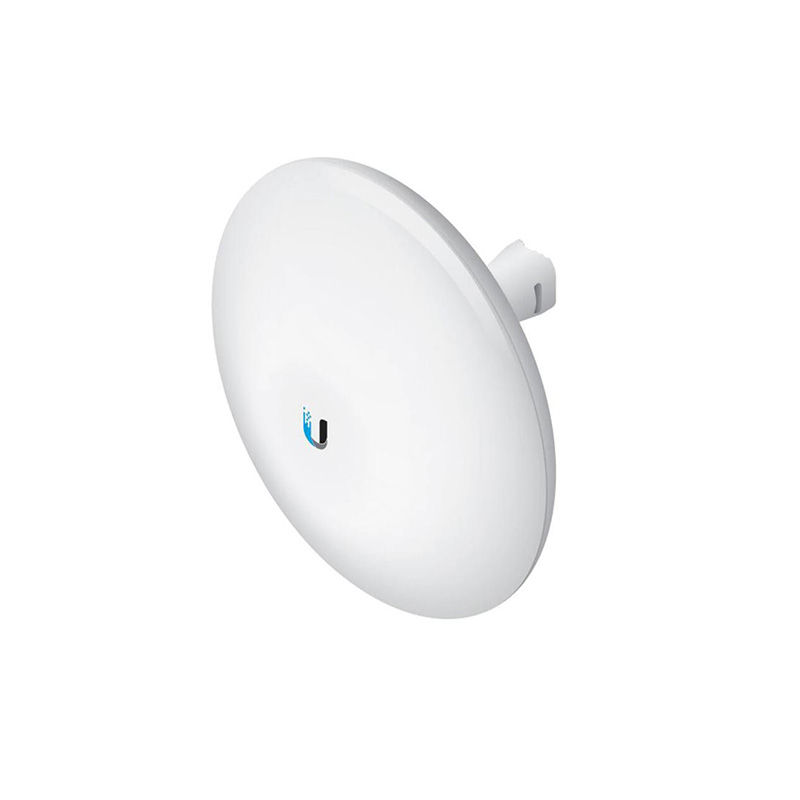

The Ubiquiti NanoBeam 5AC Gen 2 is an airMAX ac CPE (Customer Premises Equipment) device featuring a dedicated management radio. It directs RF energy in a tighter beamwidth, which blocks or spatially filters out noise, significantly improving noise immunity, especially in crowded RF environments. The radio and antenna are integrated into a compact, efficient design, providing high performance with maximum gain in a small footprint. It supports airMAX ac technology, has a dedicated Wi-Fi radio for setup via the UMobile App, and offers superior throughput performance.
| Gain | 19 dBi (17 dBi mentioned in Spanish datasheet) |
|---|---|
| Range | 15+ km (Up to 6.2 miles mentioned in one source for 450 Mb/s) |
| Memory | 128 MB DDR2, 8 MB Flash |
| Enclosure | Outdoor UV Stabilised Plastic |
| Frequency | 5 GHz |
| Throughput | 450+ Mbps |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Channel Sizes | PtP Mode: 10/20/30/40/50/60/80 MHz; PtMP Mode: 10/20/30/40 MHz |
| Processor Specs | Atheros MIPS 74Kc, 720 MHz |
| Networking Interface | (2) 10/100/1000 Ethernet Ports, Wi-Fi for Management |
| Operating Temperature | -40 to 80° C (-40 to 176° F) |
| Max. Power Consumption | 8.5W |
| Warranty | Limited warranty (details available at ui.com/support/warranty) |
| Weight | 0.530 kg (1.17 lb) (Mount Included) |
| Dimensions | 189 x 189 x 125 mm (7.44 x 7.44 x 4.92") (Mount Included) |
The NanoBeam 5AC Gen 2 is an outdoor wireless bridge/CPE featuring airMAX ac technology for high throughput (450+ Mbps) and a dedicated Wi-Fi radio for quick setup via the UMobile app. Its integrated design and uniform beamwidth maximize noise immunity, making it ideal for long-distance Point-to-Point (PtP) or Point-to-MultiPoint (PtMP) links up to 15+ km.
