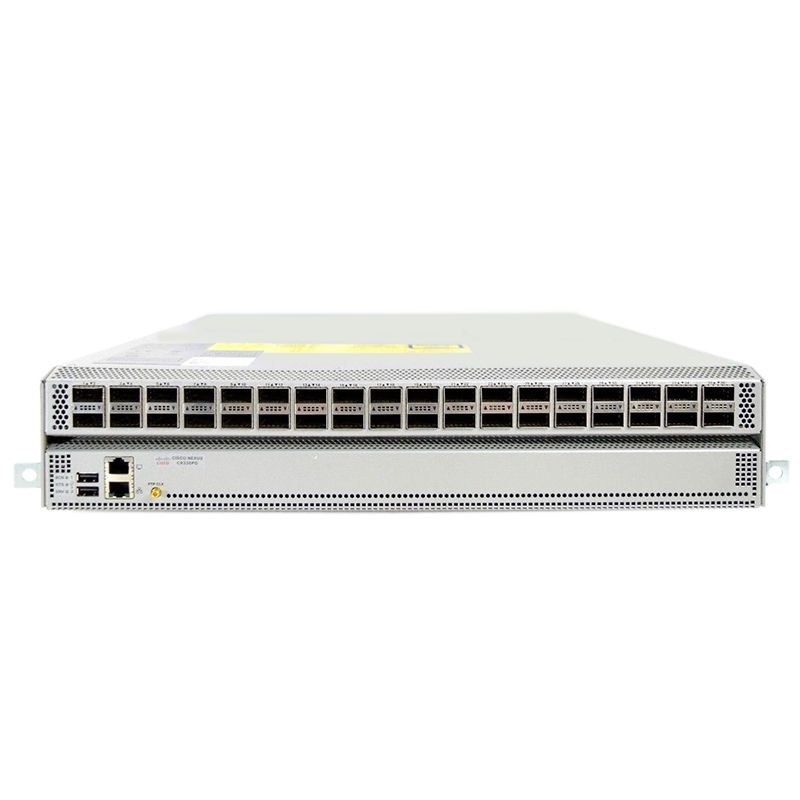

N9K-C9336PQ, Cisco Nexus 9000 Switch, 36x40G QSFP/ACI Spine/High density

SKU: N9K-C9336PQ · MPN: N9K-C9336PQ · Category: Networking

N9K-C9336PQ, Cisco Nexus 9000 Switch, 36x40G QSFP/ACI Spine/High density
Request for Quote
In Stock • 10 units

Nexus 9336 ACI Spine switch with 36p 40G QSFP

View Networking Products

Specifications

EMCImmunity: ● EN55024 ● CISPR24 ● EN300386 ● KN 61000-4 series
MTBF● 242,000 hours
RoHSThe product is RoHS-6 compliant with exceptions for leaded-Ball Grid-Array (BGA) balls and lead press-fit connectors
Safety● UL 60950-1 Second Edition ● CAN/CSA-C22.2 No. 60950-1 Second Edition ● EN 60950-1 Second Edition ● IEC 60950-1 Second Edition ● AS/NZS 60950-1 ● GB4943
Physical● 36-port 40G QSFP ports ● 1200 watt (W) AC power supplies or 930W DC power supplies (up to 2) ● 80 Plus Platinum-rated power supplies that provide at least 90% efficiency with 20% utilization ● Hot-swappable, dual fan trays with redundant fans ● Port-side intake or Port side exhaust airflow direction ● System memory: 16GB ● SSD: 64GB ● USB: 2 ports ● RS-232 serial console ports: 1 ● Management ports: 1 x 10/100/1000BASE-T
Acoustics● Fan speed at 40%: 64.4 dBA ● Fan speed at 70%: 79.6 dBA ● Fan speed at 100%: 89.8 dBA
Environmental● Physical (H x W x D): 3.5 x 17.5 x 22.5 in. (8.9 x 44.5 x 57.1 cm) ● Weight: 34.4 lb ● Operating temperature: 32 to 104°F (0 to 40°C) ● Nonoperating (storage) temperature: -40 to 158°F (-40 to 70°C) ● Humidity: 5 to 95% (noncondensing) ● Altitude: 0 to 13,123 ft (0 to 4000m)
Power and Cooling● Power: 1200W AC, 930W DC or 1200W HVAC/HVDC ● Input voltage: 100 to 240V* AC or -40V to -72V DC (min‑max), -48V to -60V DC (nominal) *Supports input voltage of 100-120V for a max output of 800W; 200-240V for a max output of 1200W ● Frequency: 50 to 60 Hz (AC) ● Efficiency: 90% or greater (20 to 100% load) ● RoHS compliance: Yes ● Hot swappable: Yes ● Port-side intake or port-side exhale options ● Typical power: 400W (AC) ● Maximum power: 660W (AC)
Regulatory complianceProducts should comply with CE Markings according to directives 2004/108/EC and 2006/95/EC
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this N9K-C9336PQ, Cisco Nexus 9000 Switch, 36x40G QSFP/ACI Spine/High density (N9K-C9336PQ) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This N9K-C9336PQ, Cisco Nexus 9000 Switch, 36x40G QSFP/ACI Spine/High density includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the N9K-C9336PQ, Cisco Nexus 9000 Switch, 36x40G QSFP/ACI Spine/High density compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the N9K-C9336PQ.
