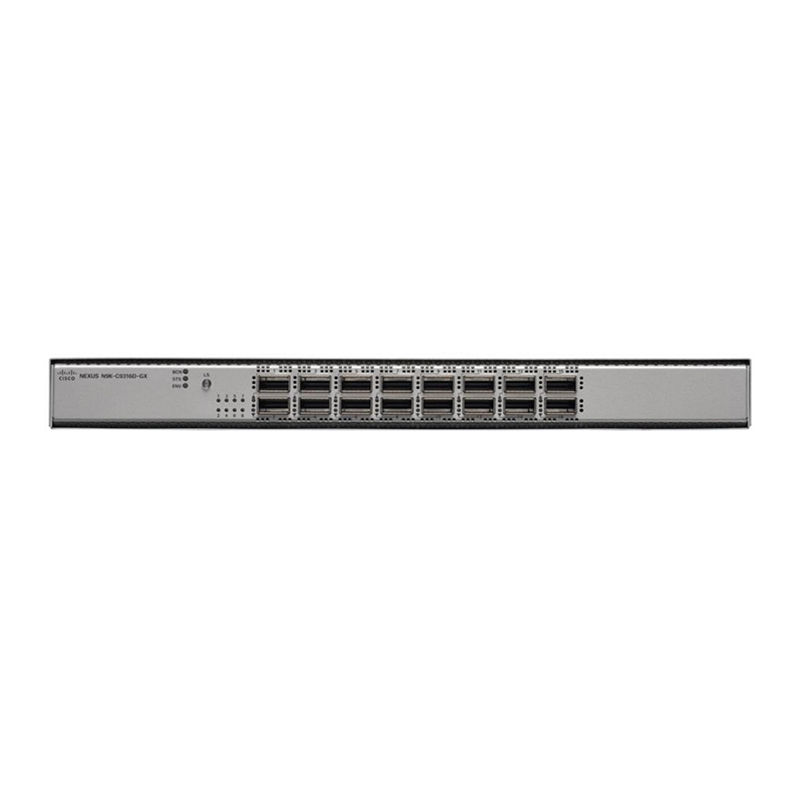

N9K-C9316D-GX, Cisco Nexus 9316D Spine Switch, 16x400G QSFP-DD, Spine Architecture, 100G Compatible

SKU: N9K-C9316D-GX · MPN: N9K-C9316D-GX · Category: Networking

N9K-C9316D-GX, Cisco Nexus 9316D Spine Switch, 16x400G QSFP-DD, Spine Architecture, 100G Compatible
Request for Quote
In Stock • 10 units

Nexus 9316D Spine switch with 16p 400/100G QSFP-DD

View Transceivers & Optics Products

Specifications

EMCImmunity: ● EN55024 ● CISPR24 ● EN300386 ● KN 61000-4 series
RoHSThe product is RoHS-6 compliant with exceptions for leaded Ball Grid-Array (BGA) balls and lead press-fit connectors.
Ports● 16 x 400/100/40-Gbps QSFP-DD ports
Power● AC: ◦ 1100 Watt (W) AC power supplies (up to 2) ◦ 1+1 redundancy ◦ 80 Plus Platinum-rated power supplies with efficiency of 90% or greater (20 to 100% load) ◦ Frequency: 50 to 60 Hz (AC) ◦ RoHS compliance: Yes ◦ Hot swappable: Yes ◦ Port-side intake or port-side exhaust options ◦ Typical power: 650W (AC) ● DC: ◦ 1100 Watt (W) DC power supplies (up to 2) ◦ 1+1 redundancy ◦ 80 Plus Platinum-rated power supplies with efficiency of 90% or greater (20 to 100% load) ● High-voltage AC/DC ◦ Power: 1200W AC, 930W DC, or 1200W HVAC/HVDC ◦ Input voltage: 100 to 240V * AC or –40 to –72V DC (minimum and maximum), –48 to –60V DC (nominal)
Safety● UL 60950-1 Second Edition ● CAN/CSA-C22.2 No. 60950-1 Second Edition ● EN 60950-1 Second Edition ● IEC 60950-1 Second Edition ● AS/NZS 60950-1 ● GB4943
Cooling● Fans: NXA-FAN-35CFM-PI and NXA-FAN-35CFM-PE ● 5+1 redundancy ● Port-side intake or port-side exhaust airflow direction ● Hot swappable: Yes
Physical● System memory: 16 GB NX-OS, 24 GB ACI ● Solid-State Disk (SSD): 128 GB ● USB: 1 port ● RS-232 serial console ports: 1 ● Management ports: 2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP+) ● Broadwell-DE CPU: 4 cores ● Dimensions (H x W x D): 3.38 x 17.37 x 22.27 in. (8.59 x 44.13 x 56.58 cm)
Environmental● Operating temperature: 32 to 104°F (0 to 40°C) ● Nonoperating (storage) temperature: -40 to 158°F ● (-40 to 70°C) ● Humidity: 5 to 85% (noncondensing) ● Altitude: 0 to 13,123 ft (0 to 4000m)
Packet buffer● 80 MB centralized buffer
Regulatory complianceProducts should comply with CE Markings according to directives 2004/108/EC and 2006/95/EC.
Maximum number of VLANs3967
Maximum number of ECMP paths64
Number of active SPAN sessions4
Maximum number of port channels512
Maximum number of multicast routes32,000
Maximum number of IPv4 host entries896,000
Maximum number of MAC address entries256,000
Maximum number of links in a port channel32
Maximum number of Access-Control-List (ACL) entriesPer slice of the forwarding engine: ● 5000 ingress ● 2000 egress ● Max: 20,000 ingress, 8000 egress
Number of Network Address Translation (NAT) entries1023
Maximum number of IPv4 Longest Prefix Match (LPM) routes896,000
Maximum number of Multiple Spanning Tree (MST) instances64
Number of Virtual Routing and Forwarding (VRF) instancesShipping: 1000 Maximum: 16,000
Flow-table size used for Cisco Tetration Analytics platform64,000
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.
