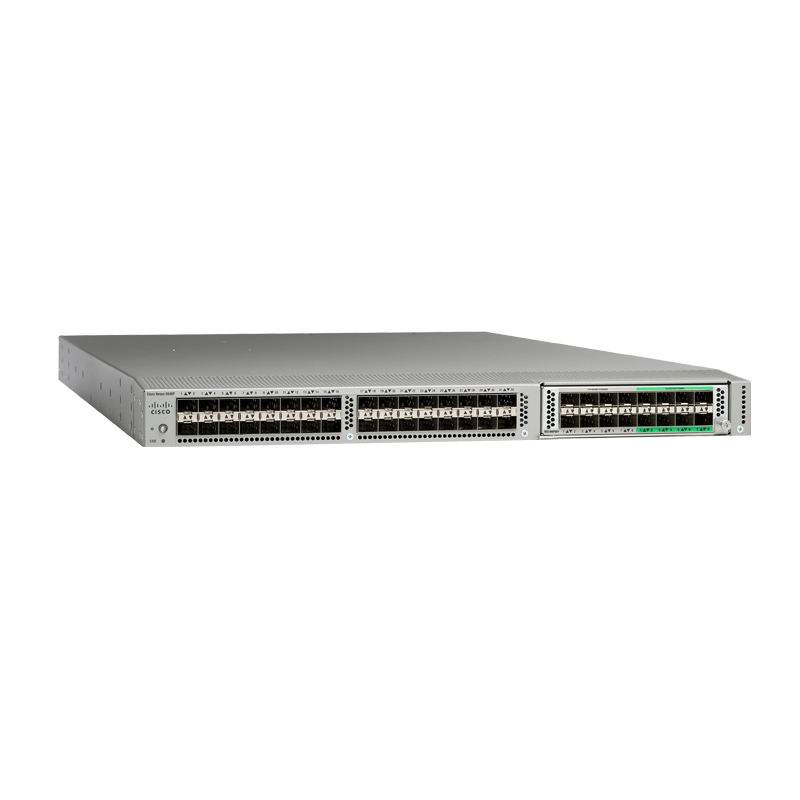

N5K-C5548UP-FA, Cisco Nexus 5500 Switch, 32x10GbE/2xPSU/2xFan

Brand: Cisco · SKU: N5K-C5548UP-FA · MPN: N5K-C5548UP-FA · Category: Networking

N5K-C5548UP-FA, Cisco Nexus 5500 Switch, 32x10GbE/2xPSU/2xFan
Request for Quote
In Stock • 10 units

Nexus 5548UP Chassis, 32 10GbE Ports, Bundle 2 PS, 2 Fans

View Networking Products

Specifications

QoS鈼?nbsp; Layer 2 IEEE 802.1p (CoS) 鈼?nbsp; 8 hardware queues per port 鈼?nbsp; Per-port QoS configuration 鈼?nbsp; CoS trust 鈼?nbsp; Port-based CoS assignment 鈼?nbsp; Modular QoS CLI (MQC) compliance - IPv4 and IPv6 鈼?nbsp; ACL-based QoS classification (Layers 2, 3, and 4) 鈼?nbsp; MQC CoS marking 鈼?nbsp; Per-port virtual output queuing 鈼?nbsp; CoS-based egress queuing 鈼?nbsp; Egress strict-priority queuing 鈼?nbsp; Egress port-based scheduling: Weighted Round-Robin (WRR) 鈼?nbsp; Control Plan Policing (CoPP) - IPv4 and IPv6
ModelN5K-C5548UP-FA
Weight35 kg
Altitude0 to 10,000 ft (0 to 3000m)
Humidity5 to 95% (noncondensing)
Security鈼?nbsp; Ingress ACLs (standard and extended) on Ethernet and virtual Ethernet ports 鈼?nbsp; Standard and extended Layer 2 ACLs: MAC addresses, protocol type, etc. 鈼?nbsp; Standard and extended Layer 3 to 4 ACLs: IPv4 and IPv6, Internet Control Message Protocol (ICMP and ICMPv6), TCP, User Datagram Protocol (UDP), etc. 鈼?nbsp; VLAN-based ACLs (VACLs) 鈼?nbsp; Port-based ACLs (PACLs) 鈼?nbsp; Named ACLs 鈼?nbsp; Optimized ACL distribution 鈼?nbsp; ACLs on virtual terminals (VTYs) 鈼?nbsp; ACL logging on management interface 鈼?nbsp; Dynamic Host Configuration Protocol (DHCP) snooping with Option 82 鈼?nbsp; Dynamic Address Resolution Protocol (ARP) Inspection 鈼?nbsp; IP source guard 鈼?nbsp; DHCP relay 鈼?nbsp; Cisco CTS (Authentication and Policy download from ACS) 鈼?nbsp; Ethernet Port Security 鈼?nbsp; IPv6 RACL 鈼?nbsp; IPv6 PACL 鈼?nbsp; IPv6 VACL
Interfaces鈼?nbsp; 32 fixed ports configurable as 1 and 10 Gigabit Ethernet and FCoE or 8/4/2/1-Gbps native Fibre Channel; additional interfaces through one expansion module 鈼?nbsp; Expansion modules 鈼?nbsp; 16-port 1 and 10 Gigabit Ethernet and FCoE module 鈼?nbsp; 8-port 8/4/2/1-Gbps Fibre Channel plus 8-port 1 and 10 Gigabit Ethernet and FCoE module 鈼?nbsp; Unified port module consisting of 16 ports configurable as 8/4/2/1-Gbps Fibre Channel or 1 and 10 Gigabit Ethernet and FCoE 鈼?nbsp; 4-port QSFP expansion module 鈼?nbsp; 12-port 10G BASE-T module (Cisco Nexus 5596T only) 鈼?nbsp; Layer 3 module (Cisco Nexus 5596UP and 5596T only; one per system) 鈼?nbsp; Layer 3 daughter card (Cisco Nexus 5548P and 5548UP only; one per system) 鈼?nbsp; Extension through the Cisco Nexus 2000 Series
Management鈼?nbsp; Switch management using 10/100/1000-Mbps management or console ports 鈼?nbsp; CLI-based console to provide detailed out-of-band management 鈼?nbsp; In-band switch management 鈼?nbsp; Locator and beacon LEDs on Cisco Nexus 2000 Series 鈼?nbsp; Port-based locator and beacon LEDs 鈼?nbsp; Configuration synchronization 鈼?nbsp; Module preprovisioning 鈼?nbsp; Configuration rollback 鈼?nbsp; Secure Shell Version 2 (SSHv2) 鈼?nbsp; Telnet 鈼?nbsp; AAA 鈼?nbsp; AAA with RBAC 鈼?nbsp; RADIUS 鈼?nbsp; TACACS+ 鈼?nbsp; Syslog (8 servers) 鈼?nbsp; Embedded packet analyzer 鈼?nbsp; SNMPv1, v2, and v3 (IPv4 & IPv6) 鈼?nbsp; Enhanced SNMP MIB support 鈼?nbsp; XML (NETCONF) support 鈼?nbsp; Remote monitoring (RMON) 鈼?nbsp; Advanced Encryption Standard (AES) for management traffic 鈼?nbsp; Unified username and passwords across CLI and SNMP 鈼?nbsp; Microsoft Challenge Handshake Authentication Protocol (MS-CHAP) 鈼?nbsp; Digital certificates for management between switch and RADIUS server 鈼?nbsp; Cisco Discovery Protocol Versions 1 and 2 鈼?nbsp; RBAC 鈼?nbsp; Switched Port Analyzer (SPAN) on physical, port channel, VLAN, and Fibre Channel interfaces 鈼?nbsp; Encapsulated Remote SPAN (ERSPAN) 鈼?nbsp; Ingress and egress packet counters per interface 鈼?nbsp; Network Time Protocol (NTP) 鈼?nbsp; Cisco GOLD 鈼?nbsp; Comprehensive bootup diagnostic tests 鈼?nbsp; Call Home 鈼?nbsp; Smart Call Home 鈼?nbsp; Cisco Fabric Manager 鈼?nbsp; Cisco DCNM 鈼?nbsp; CiscoWorks LAN Management Solution (LMS)
Performance鈼?nbsp; Layer 2 hardware forwarding at 960Gbps or 714.24mpps; Layer 3 performance of up to 160Gbps or 240mpps 鈼?nbsp; MAC address table entries: 32,000 鈼?nbsp; Low-latency cut-through design that provides predictable, consistent traffic latency regardless of packet size, traffic pattern, or enabled features on 10 Gigabit Ethernet interfaces 鈼?nbsp; Line-rate traffic throughput on all ports
SFP+ OpticsCisco Nexus 5500 platform supports 10 Gigabit Ethernet SFP+ copper Twinax cables for short distances and SFP+ optics (10GBASE-SR, 10GBASE-LR, 10GBASE-ER, GLC-ZX-SM and Cisco Nexus 2000 Series Fabric Extender Transceiver [FET-10G]) for longer distances. SFP+ has several advantages compared to other 10 Gigabit Ethernet connectivity options: 鈼?nbsp; Small 10 Gigabit Ethernet form factor 鈼?nbsp; Optical interoperability with XENPAK, X2, and XFP interface types 鈼?nbsp; Low power consumption 鈼?nbsp; Hot-swappable device 鈼?nbsp; Cisco Nexus 5500 platform products support 8-Gbps Fibre Channel-compatible SFP+ for native Fibre Channel connectivity options; 8-Gbps Fibre Channel-compatible short-reach and 10-km long-reach SFP transceiver modules operate at 8/4/2Gbps and are supported in the 8鈥慓bps-capable native Fibre Channel ports on expansion modules and unified ports
Generic MIBs鈼?nbsp; SNMPv2-SMI 鈼?nbsp; CISCO-SMI 鈼?nbsp; SNMPv2-TM 鈼?nbsp; SNMPv2-TC 鈼?nbsp; IANA-ADDRESS-FAMILY-NUMBERS-MIB 鈼?nbsp; IANAifType-MIB 鈼?nbsp; IANAiprouteprotocol-MIB 鈼?nbsp; HCNUM-TC 鈼?nbsp; CISCO-TC 鈼?nbsp; SNMPv2-MIB 鈼?nbsp; SNMP-COMMUNITY-MIB 鈼?nbsp; SNMP-FRAMEWORK-MIB 鈼?nbsp; SNMP-NOTIFICATION-MIB 鈼?nbsp; SNMP-TARGET-MIB 鈼?nbsp; SNMP-USER-BASED-SM-MIB 鈼?nbsp; SNMP-VIEW-BASED-ACM-MIB 鈼?nbsp; CISCO-SNMP-VACM-EXT-MIB
Layer 3 MIBs鈼?nbsp; UDP-MIB 鈼?nbsp; TCP-MIB 鈼?nbsp; OSPF-MIB 鈼?nbsp; BGP4-MIB 鈼?nbsp; CISCO-HSRP-MIB
Ethernet MIBs鈼?nbsp; CISCO-VLAN-MEMBERSHIP-MIB 鈼?nbsp; CISCO-Virtual-Interface-MIB
Security MIBs鈼?nbsp; CISCO-AAA-SERVER-MIB 鈼?nbsp; CISCO-AAA-SERVER-EXT-MIB 鈼?nbsp; CISCO-COMMON-ROLES-MIB 鈼?nbsp; CISCO-COMMON-MGMT-MIB 鈼?nbsp; CISCO-RADIUS-MIB 鈼?nbsp; CISCO-SECURE-SHELL-MIB 鈼?nbsp; TCP/IP MIBs 鈼?nbsp; INET-ADDRESS-MIB 鈼?nbsp; TCP-MIB 鈼?nbsp; CISCO-TCP-MIB 鈼?nbsp; UDP-MIB 鈼?nbsp; IP-MIB 鈼?nbsp; CISCO-IP-PROTOCOL-FILTER-MIB 鈼?nbsp; CISCO-DNS-CLIENT-MIB 鈼?nbsp; CISCO-PORTSECURITY- MIB
Monitoring MIBs鈼?nbsp; DIFFSERV-DSCP-TC 鈼?nbsp; NOTIFICATION-LOG-MIB 鈼?nbsp; DIFFSERV-MIB 鈼?nbsp; CISCO-CALLHOME-MIB 鈼?nbsp; CISCO-SYSLOG-EXT-MIB 鈼?nbsp; CISCO-PROCESS-MIB 鈼?nbsp; RMON-MIB 鈼?nbsp; CISCO-RMON-CONFIG-MIB 鈼?nbsp; CISCO-HC-ALARM-MIB
Layer 2 Features鈼?nbsp; Layer 2 switch ports and VLAN trunks 鈼?nbsp; IEEE 802.1Q VLAN encapsulation 鈼?nbsp; Support for up to 4096 VLANs 鈼?nbsp; Rapid Per-VLAN Spanning Tree Plus (PVRST+) (IEEE 802.1w compatible) 鈼?nbsp; Multiple Spanning Tree Protocol (MSTP) (IEEE 802.1s): 64 instances 鈼?nbsp; Spanning Tree PortFast 鈼?nbsp; Spanning Tree root guard 鈼?nbsp; Spanning Tree Bridge Assurance 鈼?nbsp; Cisco EtherChannel technology (up to 16 ports per EtherChannel) 鈼?nbsp; Cisco vPC technology 鈼?nbsp; Enhanced vPC enable vPC between Cisco Nexus 5000 and 2000 Series as well as between Cisco Nexus 3000 Series and end host 鈼?nbsp; vPC configuration synchronization 鈼?nbsp; Link Aggregation Control Protocol (LACP): IEEE 802.3ad 鈼?nbsp; Advanced port channel hashing based on Layer 2, 3, and 4 information 鈼?nbsp; Jumbo frames on all ports (up to 9216 bytes) 鈼?nbsp; Pause frames (IEEE 802.3x) 鈼?nbsp; Storm control (unicast, multicast, and broadcast) 鈼?nbsp; Private VLANs 鈼?nbsp; Private VLAN over trunks (isolated and promiscuous) 鈼?nbsp; Private VLANs over vPC and EtherChannels 鈼?nbsp; VLAN Remapping 鈼?nbsp; Cisco FabricPath 鈼?nbsp; EvPC and vPC+ with FabricPath 鈼?nbsp; Cisco Adapter FEX 鈼?nbsp; Cisco Data Center VM FEX 鈼?nbsp; Support for up to 24 fabric extenders on each Cisco Nexus 5500 platform
Layer 3 Features鈼?nbsp; Layer 3 interfaces: Routed ports on Cisco Nexus 5500 platform interfaces, switch virtual interface (SVI), port channels, subinterfaces, and port channel subinterfaces for a total of 4096 entries 鈼?nbsp; Support for up to 8000 prefixes and up to 16000 IPv4 and 8000 IPv6 host entries 鈼?nbsp; Support for up to 8000 multicast routes 鈼?nbsp; Support for up to 8000 IGMP groups 鈼?nbsp; Support for 1000 VRF entries 鈼?nbsp; Support for up to 4096 VLANs 鈼?nbsp; 16-way equal-cost multipathing (ECMP) 鈼?nbsp; 1664 ingress and 2048 egress access control list (ACL) entries 鈼?nbsp; Routing protocols: Static, Routing Information Protocol Version2 (RIPv2), Enhanced Interior Gateway Routing Protocol (EIGRP), Open Shortest Path First Version 2 (OSPFv2), and Border Gateway Protocol (BGP) 鈼?nbsp; IPv6 Routing Protocols: Static, Open Shortest Path First Version 3 (OPFv3), Border Gateway Protocol (BGPv6), Enhanced Interior Gateway Routing Protocol (EIGRPv6) 鈼?nbsp; IPv6 VRF Lite 鈼?nbsp; Hot-Standby Router Protocol (HSRP) and Virtual Router Redundancy Protocol (VRRP) 鈼?nbsp; ACL: Routed ACL with Layer 3 and 4 options to match ingress and egress ACL 鈼?nbsp; Multicast: Protocol Independent Multicast Version 2 (PIMv2) sparse mode, Source Specific Multicast (SSM), Multicast Source Discovery Protocol (MSDP), Internet Group Management Protocol Versions 2, and 3 (IGMP v2, and v3), and Multicast VLAN Registration (MVR) 鈼?nbsp; Virtual Route Forwarding (VRF): VRF-lite (IP VPN); VRF-aware unicast; and BGP-, OSPF-, RIP-, and VRF-aware multicast 鈼?nbsp; Unicast Reverse Path Forwarding (uRFP) with ACL; strict and loose modes 鈼?nbsp; Jumbo frame support (up to 9216 bytes) 鈼?nbsp; Support for up to 16 fabric extender on each Nexus 5500 with L3 modules 鈼?nbsp; RFC 896
Configuration MIBs鈼?nbsp; ENTITY-MIB 鈼?nbsp; IF-MIB 鈼?nbsp; CISCO-ENTITY-EXT-MIB 鈼?nbsp; CISCO-ENTITY-FRU-CONTROL-MIB 鈼?nbsp; CISCO-ENTITY-SENSOR-MIB 鈼?nbsp; CISCO-FLASH-MIB 鈼?nbsp; CISCO-SYSTEM-MIB 鈼?nbsp; CISCO-SYSTEM-EXT-MIB 鈼?nbsp; CISCO-IP-IF-MIB 鈼?nbsp; CISCO-IF-EXTENSION-MIB 鈼?nbsp; CISCO-SERVER-INTERFACE-MIB 鈼?nbsp; CISCO-NTP-MIB 鈼?nbsp; CISCO-IMAGE-MIB 鈼?nbsp; CISCO-IMAGE-CHECK-MIB 鈼?nbsp; CISCO-IMAGE-UPGRADE-MIB 鈼?nbsp; CISCO-CONFIG-COPY-MIB 鈼?nbsp; CISCO-ENTITY-VENDORTYPE-OID-MIB 鈼?nbsp; CISCO-BRIDGE-MIB
Fibre Channel MIBs鈼?nbsp; CISCO-ST-TC 鈼?nbsp; CISCO-FC-FE-MIB 鈼?nbsp; CISCO-FCSP-MIB 鈼?nbsp; CISCO-PORT-TRACK-MIB 鈼?nbsp; CISCO-PSM-MIB 鈼?nbsp; CISCO-FC-SPAN-MIB 鈼?nbsp; CISCO-PORT-CHANNEL-MIB 鈼?nbsp; CISCO-RSCN-MIB 鈼?nbsp; CISCO-NS-MIB 鈼?nbsp; CISCO-FCS-MIB 鈼?nbsp; CISCO-DM-MIB 鈼?nbsp; FIBRE-CHANNEL-FE-MIB 鈼?nbsp; CISCO-FC-ROUTE-MIB 鈼?nbsp; CISCO-FSPF-MIB 鈼?nbsp; CISCO-ZS-MIB 鈼?nbsp; CISCO-ZS-EXT-MIB 鈼?nbsp; CISCO-VSAN-MIB 鈼?nbsp; CISCO-CFS-MIB 鈼?nbsp; CISCO-FCPING-MIB 鈼?nbsp; CISCO-FCTRACEROUTE-MIB 鈼?nbsp; CISCO-FDMI-MIB 鈼?nbsp; CISCO-FC-DEVICE-ALIAS-MIB 鈼?nbsp; CISCO-WWNMGR-MIB 鈼?nbsp; FCMGMT-MIB 鈼?nbsp; CISCO-VEDM-MIB 鈼?nbsp; CISCO-FCOE-MIB
Industry Standards鈼?nbsp; IEEE 802.1D: Spanning Tree Protocol 鈼?nbsp; IEEE 802.1p: CoS prioritization 鈼?nbsp; IEEE 802.1Q: VLAN tagging 鈼?nbsp; IEEE 802.1Qaz: Enhanced transmission selection 鈼?nbsp; IEEE 802.1Qbb: Per-priority Pause 鈼?nbsp; IEEE 802.1s: Multiple VLAN instances of Spanning Tree Protocol 鈼?nbsp; IEEE 802.1w: Rapid reconfiguration of Spanning Tree Protocol 鈼?nbsp; IEEE 802.3: Ethernet 鈼?nbsp; IEEE 802.3ad: LACP with fast timers 鈼?nbsp; IEEE 802.3ae: 10 Gigabit Ethernet 鈼?nbsp; SFF 8431 SFP+ CX1 support 鈼?nbsp; RMON 鈼?nbsp; IEEE 1588-2008: Precision Time Protocol (Boundary Clock)
Miscellaneous MIBs鈼?nbsp; START-MIB 鈼?nbsp; CISCO-LICENSE-MGR-MIB 鈼?nbsp; CISCO-FEATURE-CONTROL-MIB 鈼?nbsp; CISCO-CDP-MIB 鈼?nbsp; CISCO-RF-MIB 鈼?nbsp; CISCO-ETHERNET-FABRIC-EXTENDER-MIB 鈼?nbsp; CISCO-BRIDGE-MIB
Data Center Bridging鈼?nbsp; CEE- and IEEE-compliant PFC (per-priority Pause frame support) 鈼?nbsp; PFC link distance support: 3000m 鈼?nbsp; CEE-compliant DCBX Protocol 鈼?nbsp; CEE- and IEEE-compliant Enhanced Transmission Selection
Operating temperature32 to 104°F (0 to 40°C)
Fibre Channel Standards鈼?nbsp; FC-PH, Revision 4.3 (ANSI/INCITS 230-1994) 鈼?nbsp; FC-PH, Amendment 1 (ANSI/INCITS 230-1994/AM1 1996) 鈼?nbsp; FC-PH, Amendment 2 (ANSI/INCITS 230-1994/AM2-1999) 鈼?nbsp; FC-PH-2, Revision 7.4 (ANSI/INCITS 297-1997) 鈼?nbsp; FC-PH-3, Revision 9.4 (ANSI/INCITS 303-1998) 鈼?nbsp; FC-PI, Revision 13 (ANSI/INCITS 352-2002) 鈼?nbsp; FC-PI-2, Revision 10 (ANSI/INCITS 404-2006) 鈼?nbsp; FC-PI-4, Revision 7.0 鈼?nbsp; FC-FS, Revision 1.9 (ANSI/INCITS 373-2003) 鈼?nbsp; FC-FS-2, Revision 0.91 鈼?nbsp; FC-LS, Revision 1.2 鈼?nbsp; FC-SW-2, Revision 5.3 (ANSI/INCITS 355-2001) 鈼?nbsp; FC-SW-3, Revision 6.6 (ANSI/INCITS 384-2004) 鈼?nbsp; FC-GS-3, Revision 7.01 (ANSI/INCITS 348-2001) 鈼?nbsp; FC-GS-4, Revision 7.91 (ANSI/INCITS 387-2004) 鈼?nbsp; FC-BB-5, Revision 2.0 for FCoE 鈼?nbsp; FCP, Revision 12 (ANSI/INCITS 269-1996) 鈼?nbsp; FCP-2, Revision 8 (ANSI/INCITS 350-2003) 鈼?nbsp; FCP-3, Revision 4 (ANSI/INCITS 416-2006) 鈼?nbsp; FC-MI, Revision 1.92 (INCITS TR-30-2002, except for FL-ports and Class 2) 鈼?nbsp; FC-MI-2, Revision 2.6 (INCITS TR-39-2005, except for FL-ports and Class 2) 鈼?nbsp; FC-SP, Revision 1.6 鈼?nbsp; FC-DA, Revision 3.1 (INCITS TR-36-2004, except for FL-ports, SB-ports and Class 2) 鈼?nbsp; Class of Service: Class 3, Class F 鈼?nbsp; Fibre Channel standard port types: E and F 鈼?nbsp; Fibre Channel enhanced port types: SD and TE
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this N5K-C5548UP-FA, Cisco Nexus 5500 Switch, 32x10GbE/2xPSU/2xFan (N5K-C5548UP-FA) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This N5K-C5548UP-FA, Cisco Nexus 5500 Switch, 32x10GbE/2xPSU/2xFan includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the N5K-C5548UP-FA, Cisco Nexus 5500 Switch, 32x10GbE/2xPSU/2xFan compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the N5K-C5548UP-FA.
