Brand: Cisco · SKU: N540-24Z8Q2C · MPN: N540-24Z8Q2C-SYS · Category: Networking

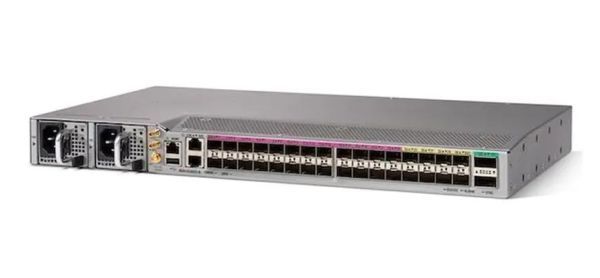

The Cisco Network Convergence System 540 (NCS 540) is a high-performance, compact 1RU router designed for next-generation metro aggregation, edge networks, and mobile backhaul. This model features 24 ports of 1G/10G SFP+, 8 ports of 25G SFP28, and 2 ports of 100G QSFP28, delivering a total system throughput of up to 300 Gbps and 300 Mpps. Powered by a 4-core 1.5GHz x86 processor and 32GB of DRAM, it supports advanced features like Segment Routing, EVPN, and Cisco IOS XR 64-bit software. It is environmentally hardened for industrial temperatures (-40°C to +70°C) and features dual hot-swappable power supplies for high availability.
| CPU | 4-core 1.5GHz x86 CPU |
|---|---|
| DRAM | 32GB |
| Airflow | Front-to-back |
| Storage | 128GB |
| Throughput | 300 Gbps / 300 Mpps |
| Power Supply | Dual hot-swappable AC or DC |
| Operating System | Cisco IOS XR 64-bit |
| Port Configuration | 24x 1/10GE SFP+, 8x 10/25GE SFP28, 2x 40/100GE QSFP28 |
| Operating Temperature | -40°C to +70°C (Industrial Temp) |
| Warranty | 1-Year Limited Hardware Warranty |
| Weight | 14 lbs (6.35 kg) |
| Dimensions | 1.72 x 17.48 x 10.0 in (4.37 x 44.4 x 25.4 cm) |
The Cisco NCS 540 N540-24Z8Q2C is a temperature-hardened, high-throughput router optimized for service providers and enterprise edge deployments. It offers flexible port speeds and advanced synchronization features for 5G and mobile transport.
Yes, this Cisco NCS 540 Series Router (N540-24Z8Q2C) (N540-24Z8Q2C) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Cisco NCS 540 Series Router (N540-24Z8Q2C) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the N540-24Z8Q2C.
