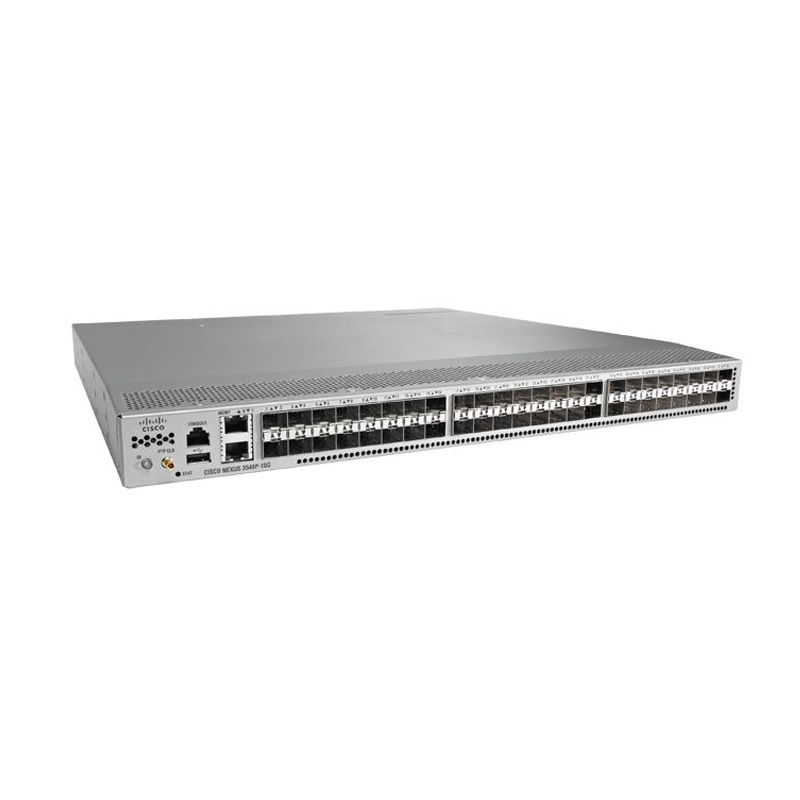

N3K-C3548P-10GX, Cisco Nexus 3548-X Switch, 48xSFP+ ports/Low latency/Enhanced features
Brand: Cisco · SKU: N3K-C3548P-10GX · MPN: N3K-C3548P-10GX · Category: Networking
$12,491.76
In Stock • 10 units
Nexus 3548-X Switch 48 SFP+ ports, Enhanced
Specifications
| RFC | BGP 鈼?nbsp; RFC 1997: BGP CommunitiesAttribute 鈼?nbsp; RFC 2385: Protection of BGP Sessions with the TCP MD5 Signature Option 鈼?nbsp; RFC 2439: BGP Route Flap Damping 鈼?nbsp; RFC 2519: A Framework for Inter-Domain Route Aggregation 鈼?nbsp; RFC 2545: Use of BGPv4 Multiprotocol Extensions 鈼?nbsp; RFC 2858: Multiprotocol Extensions for BGPv4 鈼?nbsp; RFC 3065: Autonomous System Confederations for BGP 鈼?nbsp; RFC 3392: Capabilities Advertisement with BGPv4 鈼?nbsp; RFC 4271: BGPv4 鈼?nbsp; RFC 4273: BGPv4 MIB: Definitions of Managed Objects for BGPv4 鈼?nbsp; RFC 4456: BGP Route Reflection 鈼?nbsp; RFC 4486: Subcodes for BGP Cease Notification Message 鈼?nbsp; RFC 4724: Graceful Restart Mechanism for BGP 鈼?nbsp; RFC 4893: BGP Support for Four-Octet AS Number Space OSPF 鈼?nbsp; RFC 2328: OSPFVersion 2 鈼?nbsp; 8431RFC 3101: OSPF Not-So-Stubby-Area (NSSA) Option 鈼?nbsp; RFC 3137: OSPF Stub Router Advertisement 鈼?nbsp; RFC 3509: Alternative Implementations of OSPF Area Border Routers 鈼?nbsp; RFC 3623: Graceful OSPF Restart 鈼?nbsp; RFC 4750: OSPF Version 2 MIB RIP 鈼?nbsp; RFC1724: RIPv2 MIB Extension 鈼?nbsp; RFC 2082: RIPv2 MD5 Authentication 鈼?nbsp; RFC 2453: RIP Version 2 鈼?nbsp; IP Services 鈼?nbsp; RFC 768: User Datagram Protocol (UDP) 鈼?nbsp; RFC 783: Trivial File Transfer Protocol (TFTP) 鈼?nbsp; RFC 791: IP 鈼?nbsp; RFC 792: Internet Control Message Protocol (ICMP) 鈼?nbsp; RFC 793: TCP 鈼?nbsp; RFC 826: ARP 鈼?nbsp; RFC 854: Telnet 鈼?nbsp; RFC 959: FTP 鈼?nbsp; RFC 1027: Proxy ARP 鈼?nbsp; RFC 1305: Network Time Protocol (NTP) Version 3 鈼?nbsp; RFC 1519: Classless Interdomain Routing (CIDR) 鈼?nbsp; RFC 1542: BootP Relay 鈼?nbsp; RFC 1591: Domain Name System (DNS) Client 鈼?nbsp; RFC 1812: IPv4 Routers 鈼?nbsp; RFC 2131: DHCP Helper 鈼?nbsp; RFC 2338: VRRP IP Multicast 鈼?nbsp; RFC 2236: InternetGroup Management Protocol, version 2 鈼?nbsp; RFC 3376: Internet Group Management Protocol, Version 3 鈼?nbsp; RFC 3446: Anycast Rendezvous Point Mechanism Using PIM and MSDP 鈼?nbsp; RFC 3569: An Overview of SSM 鈼?nbsp; RFC 3618: Multicast Source Discovery Protocol (MSDP) 鈼?nbsp; RFC 4601: Protocol Independent Multicast - Sparse Mode (PIM-SM): Protocol Specification (Revised) 鈼?nbsp; RFC 4607: Source-Specific Multicast for IP 鈼?nbsp; RFC 4610: Anycast-RP using PIM 鈼?nbsp; RFC 5015: PIM BiDir 鈼?nbsp; RFC 5132: IP Multicast MIB |
|---|---|
| Model | N3K-C3548P-10GX |
| 64,000 | 8000 |
| Weight | 17.4 kg |
| Cooling | Forward and reversed airflow schemes 鈼?nbsp; Forward airflow:Port-side exhaust (air enters through fan tray and power supplies and exits through ports) 鈼?nbsp; Reversed airflow: Port-side intake (air enters through ports and exits through fan tray and power supplies) Four individual, hot-swappable fans (3+1 redundant) |
| Layer 2 | 鈼?nbsp; Layer 2 switch ports and VLAN trunks 鈼?nbsp; IEEE 802.1Q VLAN encapsulation 鈼?nbsp; Support for up to 4096 VLANs 鈼?nbsp; Rapid Per-VLAN Spanning Tree Plus (PVRST+) (IEEE 802.1w compatible) 鈼?nbsp; MSTP (IEEE 802.1s): 64 instances 鈼?nbsp; Spanning Tree PortFast 鈼?nbsp; Spanning Tree Root Guard 鈼?nbsp; Spanning Tree Bridge Assurance 鈼?nbsp; Cisco EtherChannel technology (up to 24 ports per EtherChannel) 鈼?nbsp; LACP: IEEE 802.3ad, IEEE 802.1ax 鈼?nbsp; Advanced PortChannel hashing based on Layer 2, 3, and 4 information 鈼?nbsp; Jumbo frames on all ports (up to 9216 bytes) 鈼?nbsp; Storm control (multicast and broadcast) 鈼?nbsp; Link-level flow control (IEEE 802.3x) 鈼?nbsp; vPC |
| Layer 3 | 鈼?nbsp; Layer 3 interfaces: Routed ports on interfaces, switch virtual interfaces (SVIs), PortChannels, and subinterfaces (total: 1024) 鈼?nbsp; 24-way Equal-Cost Multipath (ECMP) 鈼?nbsp; 4096 ACL entries 鈼?nbsp; Routing protocols: Static, RIPv2, EIGRP, OSPF, and BGP 鈼?nbsp; HSRP and VRRP 鈼?nbsp; ACL: Routed ACL with Layer 3 and 4 options to match ingress and egress ACLs 鈼?nbsp; VRF: VRF-Lite (IP VPN), VRF-aware unicast (BGP, OSPF, and RIP), and VRF鈥慳ware multicast 鈼?nbsp; VRF route leaking 鈼?nbsp; Jumbo frame support (up to 9216 bytes) |
| Altitude | 0 to 10,000 ft (0 to 3000m) |
| Physical | 鈼?nbsp; 48 fixed SFP+ ports (1 or 10Gbps) 鈼?nbsp; Dual redundant hot-swappable power supplies 鈼?nbsp; Four individual redundant hot-swappable fans 鈼?nbsp; One 1-PPS timing port, with the RF1.0/2.3 QuickConnect connector type* 鈼?nbsp; One 10/100/1000-Mbps management port 鈼?nbsp; One RS-232 serial console port 鈼?nbsp; Two USB ports 鈼?nbsp; Locator LED 鈼?nbsp; Locator LED button |
| Security | 鈼?nbsp; Ingress ACLs (standard and extended) on Ethernet 鈼?nbsp; Standard and extended Layer 3 to 4 ACLs include IPv4, Internet Control Message Protocol (ICMP), TCP, and User Datagram Protocol (UDP) 鈼?nbsp; VLAN-based ACLs (VACLs) 鈼?nbsp; Port-based ACLs (PACLs) 鈼?nbsp; Named ACLs 鈼?nbsp; ACLs on virtual terminals (VTYs) 鈼?nbsp; Dynamic Host Configuration Protocol (DHCP) relay 鈼?nbsp; Control Plane Policing (CoPP) |
| Frequency | 50 to 60 Hz |
| Multicast | 鈼?nbsp; Multicast: PIMv2, PIM Sparse Mode (PIM-SM), SSM, and BiDir 鈼?nbsp; Bootstrap router (BSR), Auto-RP, and Static RP 鈼?nbsp; MSDP and Anycast RP 鈼?nbsp; Internet Group Management Protocol (IGMP) Versions 2 and 3 |
| Standards | 鈼?nbsp; IEEE 802.1D: Spanning Tree Protocol 鈼?nbsp; IEEE 802.1p: CoS Prioritization 鈼?nbsp; IEEE 802.1Q: VLAN Tagging 鈼?nbsp; IEEE 802.1s: Multiple VLAN Instances of Spanning Tree Protocol 鈼?nbsp; IEEE 802.1w: Rapid Reconfiguration of Spanning Tree Protocol 鈼?nbsp; IEEE 802.3z: Gigabit Ethernet 鈼?nbsp; IEEE 802.3ad: Link Aggregation Control Protocol (LACP) 鈼?nbsp; IEEE 802.1ax: Link Aggregation Control Protocol (LACP) 鈼?nbsp; IEEE 802.3ae: 10 Gigabit Ethernet 鈼?nbsp; IEEE 802.3ba: 40 Gigabit Ethernet 鈼?nbsp; IEEE 802.1ab: LLDP |
| Management | 鈼?nbsp; Power On Auto Provisioning (POAP) 鈼?nbsp; Python scripting 鈼?nbsp; Switch management using 10/100/1000-Mbps management or console ports 鈼?nbsp; CLI-based console to provide detailed out-of-band management 鈼?nbsp; In-band switch management 鈼?nbsp; Locator and beacon LEDs 鈼?nbsp; Configuration rollback 鈼?nbsp; SSHv2 鈼?nbsp; Telnet 鈼?nbsp; AAA 鈼?nbsp; AAA with RBAC 鈼?nbsp; RADIUS 鈼?nbsp; TACACS+ 鈼?nbsp; Syslog 鈼?nbsp; Embedded packet analyzer 鈼?nbsp; SNMP v1, v2, and v3 鈼?nbsp; Enhanced SNMP MIB support 鈼?nbsp; XML (NETCONF) support 鈼?nbsp; Remote monitoring (RMON) 鈼?nbsp; Advanced Encryption Standard (AES) for management traffic 鈼?nbsp; Unified username and passwords across CLI and SNMP 鈼?nbsp; Microsoft Challenge Handshake Authentication Protocol (MS-CHAP) 鈼?nbsp; Digital certificates for management between switch and RADIUS server 鈼?nbsp; Cisco Discovery Protocol Versions 1 and 2 鈼?nbsp; RBAC 鈼?nbsp; SPAN on physical, PortChannel, and VLAN 鈼?nbsp; ERSPAN Versions 2 and 3 鈼?nbsp; Ingress and egress packet counters per interface 鈼?nbsp; Network Time Protocol (NTP) 鈼?nbsp; Cisco OHMS 鈼?nbsp; Comprehensive bootup diagnostic tests 鈼?nbsp; Cisco Call Home 鈼?nbsp; Cisco DCNM 鈼?nbsp; Active buffer monitoring 鈼?nbsp; PTP (IEEE 1588) boundary clock |
| Buffer size | 6MB shared among 16 ports; 18MB total |
| Performance | 鈼?nbsp; 960-Gbps switching capacity 鈼?nbsp; Forwarding rate of 720mpps 鈼?nbsp; Line-rate traffic throughput (both Layer 2 and 3) on all ports 鈼?nbsp; Configurable MTUs of up to 9216 bytes (jumbo frames) |
| Input voltage | 100 to 240 VAC |
| Maximum power | 鈼?nbsp; 213W |
| Number of VLANS | 4096 |
| Boot flash memory | 2GB (3524P and 3548P models) 4GB (3524X and 3548X models) |
| Power supply types | 鈼?nbsp; AC (forward and reversed airflow) 鈼?nbsp; DC (forward and reversed airflow) |
| Storage temperature | 40 to 158° F (-40 to 70°C) |
| Number of ACL entries | 4096 |
| Operating temperature | 32 to 104° F (0 to 40°C) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this N3K-C3548P-10GX, Cisco Nexus 3548-X Switch, 48xSFP+ ports/Low latency/Enhanced features (N3K-C3548P-10GX) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This N3K-C3548P-10GX, Cisco Nexus 3548-X Switch, 48xSFP+ ports/Low latency/Enhanced features includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the N3K-C3548P-10GX, Cisco Nexus 3548-X Switch, 48xSFP+ ports/Low latency/Enhanced features compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the N3K-C3548P-10GX.
