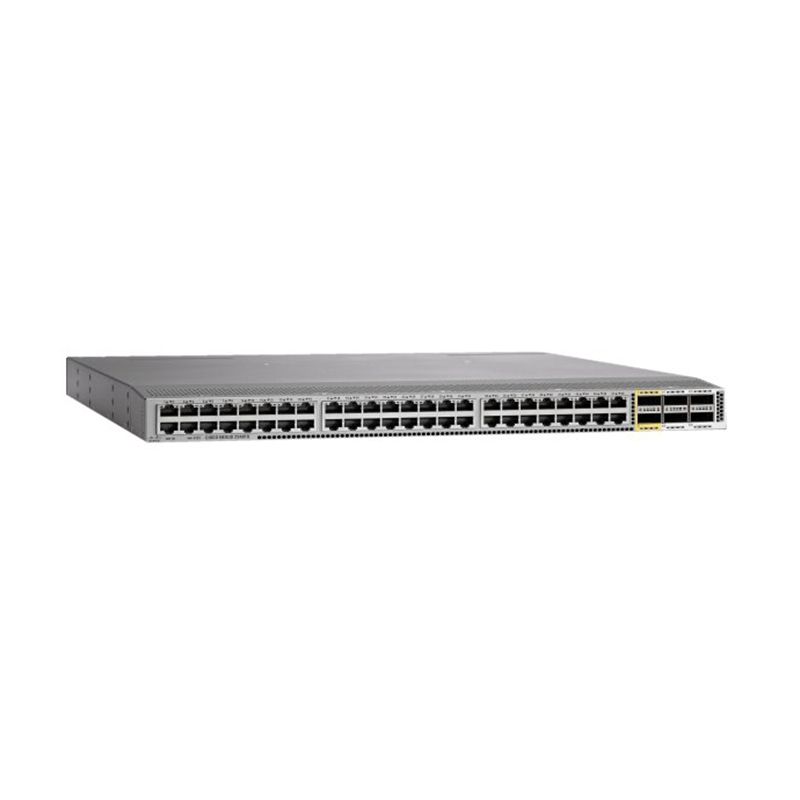

N2K-C2348TQ-E, Cisco Nexus 2000 Switch, 48x10GT/6x40G QSFP
SKU: N2K-C2348TQ-E · MPN: N2K-C2348TQ-E · Category: Networking
Request for Quote
In Stock • 10 units
Nexus 2000, 10GT FEX; 48x1/10T; 6x40G QSFP
Specifications
| EMC | Immunity: EN50082-1 EN61000-6-1 EN55024 CISPR24 EN300386 KN 61000-4 series |
|---|---|
| FCoE | FCoE support up to 30m with Category 6a and 7 cables (Cisco Nexus 5500 and 5600 platforms and 6000 Series) |
| RoHS | The Cisco Nexus 2348UPQ, 2348TQ, and 2332TQ are RoHS-6 compliant |
| Type | Cisco Nexus 2348TQ-E |
| Safety | UL 60950-1 CAN/CSA-C22.2 No. 60950-1EN 60950-1 IEC 60950-1AS/NZS 60950-1GB4943 |
| Weight | 17.7 lbs. (8.0 kg) |
| Security | Local classification (256 access control list [ACL] entries) |
| Management | Fabric extender management using in-band management Locator and beacon LEDs on front and back of chassis (locator beacons on the front and rear of the chassis help reduce errors when the equipment is serviced) Per-port locator and beacon LEDs Syslog Simple Network Management Protocol Versions 1, 2, and 3 (SNMP v1, v2, and v3) Enhanced SNMP MIB support XML (NETCONF) support Remote Monitoring (RMON) Cisco Discovery Protocol Versions 1 and 2 Cisco Switched Port Analyzer (SPAN) source on server ports Power-on self-test (POST) Cisco Generic Online Diagnostics (GOLD): Ethernet Comprehensive bootup diagnostic tests CiscoWorks Cisco Data Center Network Manager (DCNM); the Cisco Nexus 2300 platform is managed through the parent Cisco Nexus switch using DCNM and standard SNMP, XML interface, and command-line interface (CLI) |
| Description | Specification |
| Environment | Operating temperature: 32 to 131°F (0 to 55°C) Non-operating temperature: -40 to 158°F (-40 to 70°C) Humidity: 5 to 95 percent (noncondensing) Altitude: 0 to 10,000 ft. (0 to 3000m) |
| Fan modules | NXA-FAN-30CFM-F and NXA-FAN-30CFM-B (N+1 redundancy = 3 fans) |
| Performance | Hardware forwarding at 1440 Gbps or 2160 mpps |
| Fabric speed | Up to 240 Gbps in each direction (480-Gbps full duplex) |
| Power supply | N2200-PAC-400W, N2200-PAC-400W-B, N2200-PDC-400W, and N2200-PDC-350W-B |
| Product Type | Cisco Nexus 2348TQ-E |
| Monitoring MIBs | RMON-MIB |
| Heat dissipation | 952 BTU/hour (typical); 1190 BTU/hour (maximum) |
| Layer 2 features | Layer 2 VLAN trunks IEEE 802.1Q VLAN encapsulation Cisco EtherChannel technology on uplinks PortChannel on server ports on Cisco Nexus 2300 platforms Advanced PortChannel hashing Jumbo frames on all ports (up to 9216 bytes) Pause frames (Priority Flow Control [PFC] and IEEE 802.3x) Private VLANs (promiscuous only on uplinks) Local multicast replication on Cisco Nexus 2300 platform (8000 entries) Autonegotiation to 1000BASE-T; full duplex on host interfaces |
| Minimum software | Cisco NX-OS Release 7.3(0)N1(1) (Cisco Nexus 5500 and 5600 platforms and 6000 Series) |
| Oversubscription | Up to 2:1 |
| Enhanced Ethernet | DCB |
| High availability | Hot-swappable field-replaceable power supplies and fan modules 1:1 power redundancy Uplink traffic management through Cisco EtherChannel hashing or static port pinning vPCs for dual-homed active-active connectivity across two Cisco Nexus parent switches vPCs for dual-homed straight-through NIC connectivity across two Cisco Nexus 2300 platform fabric extenders In-Service Software Upgrade (ISSU) |
| Configuration MIBs | ENTITY-MIB IF-MIB FABRIC-EXTENDER MIB CISCO-ENTITY-EXT-MIB CISCO-ENTITY-FRU-CONTROL-MIB CISCO-ENTITY-SENSOR-MIB CISCO-ETHERNET-FABRIC-EXTENDER-MIB |
| Industry standards | IEEE 802.1p: CoS prioritization IEEE 802.1Q: VLAN tagging IEEE 802.3: Ethernet IEEE 802.3ae: 10 Gigabit Ethernet SFF 8431 SFP+ support IEEE 802.3u 100BASE-TX specification IEEE 802.3ab 1000BASE-T specification IEEE 802.3an 10GBASE-T 10GBASE-SR 10GBASE-LR RMON SFF-8461 |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this N2K-C2348TQ-E, Cisco Nexus 2000 Switch, 48x10GT/6x40G QSFP (N2K-C2348TQ-E) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This N2K-C2348TQ-E, Cisco Nexus 2000 Switch, 48x10GT/6x40G QSFP includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the N2K-C2348TQ-E, Cisco Nexus 2000 Switch, 48x10GT/6x40G QSFP compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the N2K-C2348TQ-E.
