Brand: Samsung · SKU: MZVL2512HCJQ-00BL7 · MPN: MZVL2512HCJQ-00BL7 · Category: Storage

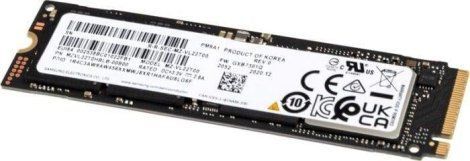

The Samsung PM9A1 512GB M.2 2280 NVMe PCIe 4.0x4 SSD (MZVL2512HCJQ-00BL7) is an internal solid-state drive designed for high-performance computing. It features a 512GB storage capacity, utilizes 3D TLC NAND, and operates with a PCIe Gen4 16Gb/s interface, supporting up to 4 lanes. The drive is compliant with PCI Express Base Specification Rev. 4.0 and PCI Express M.2 Specification Rev. 1.1, as well as the NVMe Express specification Rev. 1.3. It supports various power-saving modes, including APST and L1.2 Mode. For reliability, it has an UBER rating of less than 1 sector per 10^15 bits read and an MTBF of 1.5 million hours. It also includes hardware-based AES-XTS 256-bit encryption and is TCG OPAL (v2.1) compliant for SEDs. The drive's physical dimensions are 22.00 ± 0.15 mm in width and 80.00 ± 0.15 mm in length, with a maximum height of 2.38 mm for single-sided configurations and a maximum weight of 9.0g. Sequential read speeds can reach up to 6900 MB/s, and sequential write speeds up
| MTBF | 1.5 Million Hours |
|---|---|
| Interface | PCIe Gen4 x4 NVMe |
| NAND Type | 3D TLC NAND |
| Compliance | PCI Express 4.0, NVMe 1.3, TCG OPAL 2.1 |
| Encryption | AES-XTS 256-bit |
| Form Factor | M.2 2280 |
| Random Read IOPS | Up to 800K |
| Storage Capacity | 512 GB |
| Random Write IOPS | Up to 800K |
| Operating Temperature | 0°C to 70°C |
| Sequential Read Speed | Up to 6900 MB/s |
| Sequential Write Speed | Up to 5000 MB/s (512GB) |
| Non-operating Temperature | -40°C to 85°C |
| Warranty | Please contact the seller directly for warranty information. |
| Weight | Max. 9.0g |
| Dimensions | Width 22.00 ± 0.15 mm, Length 80.00 ± 0.15 mm, Height Max. 2.38 mm (Single Side) |
The Samsung PM9A1 MZVL2512HCJQ is a high-performance 512GB M.2 2280 NVMe SSD. It leverages PCIe 4.0 x4 interface for significantly faster data transfer speeds compared to previous generations. With its 3D TLC NAND technology and advanced controller, it delivers excellent read and write performance, making it suitable for demanding applications, gaming, and professional workloads. The drive also incorporates robust security features like AES-XTS 256-bit encryption and TCG OPAL compliance.
Yes, this Samsung PM9A1 512GB NVMe PCIe 4.0 M.2 2280 SSD (MZVL2512HCJQ-00BL7) is 100% genuine Samsung hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Samsung PM9A1 512GB NVMe PCIe 4.0 M.2 2280 SSD includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the MZVL2512HCJQ-00BL7.
