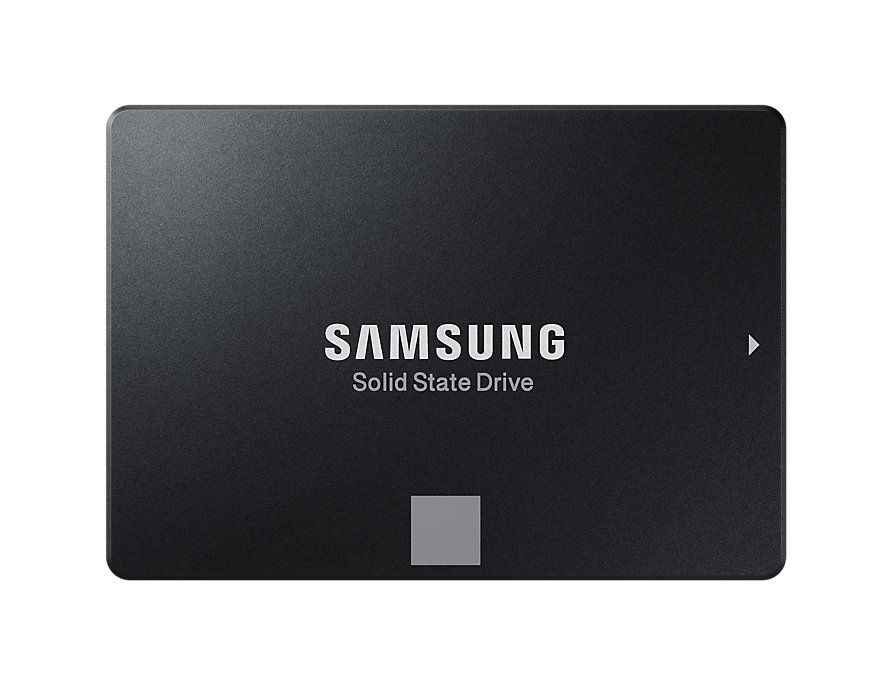

Samsung 860 EVO 500 GB 2.5" Serial ATA III MLC
Brand: Samsung · SKU: MZ-76E500B/AM · MPN: 860 EVO · Category: Components
Specifications
| NVMe | No |
|---|---|
| Depth | 69.8 mm |
| Width | 100 mm |
| Height | 6.8 mm |
| Weight | 50 g |
| IEEE 1667 | Yes |
| Interface | Serial ATA III |
| Memory type | MLC |
| SSD capacity | 500 GB |
| TRIM support | Yes |
| Component for | PC/Laptop |
| Product colour | Black |
| Controller type | Samsung MJX |
| NAND flash type | MLC (Multi Level Cell) |
| Operating shock | 1500 G |
| SSD form factor | 2.5" |
| Bundled software | Magician Software for SSD management |
| Random read (4KB) | 10000 IOPS |
| Data transfer rate | 6 Gbit/s |
| Maximum read (4KB) | 98000 IOPS |
| Random write (4KB) | 42000 IOPS |
| S.M.A.R.T. support | Yes |
| Maximum write (4KB) | 90000 IOPS |
| Non-operating shock | 1500 G |
| Warranty | 3-Year Warranty |
| Weight | 50 g |
| Dimensions | 100 mm x 69.8 mm x 6.8 mm |
Product Description
The SSD to trust The newest edition to the world’s best-selling SATA SSD series, the Samsung 860 EVO. Specially designed for mainstream PCs and laptops, with the latest V-NAND and a robust algorithm-based controller, this fast SSD comes in a wide range of compatible form factors and capacities. Optimal performance Speeds are more consistent, even with heavy workloads and multi-tasks. The 860 EVO performs at sequential writes up to 520 MB/s with Intelligent TurboWrite technology, and sequential reads up to 550 MB/s. The TurboWrite buffer size varies from 12 GB to 78 GB for faster file transfer. Sequential reads up to 550 MB/s Sequential writes up to 520 MB/s. Boost in endurance Safely store and render large sized 4K videos and 3D data used by the latest applications, up to 8x higher TBW (Terabytes Written) than the previous 850 EVO. The latest V-NAND technology gives you up to 2400 TBW, or is backed by a 5-year limited warranty, whichever comes first. 2400 Terabytes Written 5 Year Warranty. Smart compatibility Benefit from faster, more fluid communication with your host system. The refined ECC algorithm and a new MJX controller generate higher speeds, and the improved queued trim enhances Linux compatibility. Our advanced engineering makes the 860 EVO more compatible with your computing system. Multi form factors Whatever size your computer needs, there is an 860 EVO for you. Choose among the 2.5-inch size for desktop PCs and laptops, and the SATA-based M.2 (2280) or the mSATA for ultra-slim computing devices. Samsung Magician Management software Samsung Magician software is designed to help you manage your SSD with a simple and intuitive user interface. Firmware update Get notifications when new firmware is released, and easily install updates for enhanced performance, stability, and compatibility. Perf. benchmark Check your SSD's sequential and random read/write speeds, so you can maintain superb performance. Data security Protect data by selecting security options. The 860 EVO supports AES 256-bit hardware-based encryption and is compliant with TCG Opal and IEEE 1667.
Key Features
Samsung 860 EVO. SSD capacity: 500 GB, SSD form factor: 2.5", Data transfer rate: 6 Gbit/s, Component for: PC/Laptop
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Samsung 860 EVO 500 GB 2.5" Serial ATA III MLC (MZ-76E500B/AM) is 100% genuine Samsung hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Samsung 860 EVO 500 GB 2.5" Serial ATA III MLC includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Samsung 860 EVO 500 GB 2.5" Serial ATA III MLC compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the MZ-76E500B/AM.
