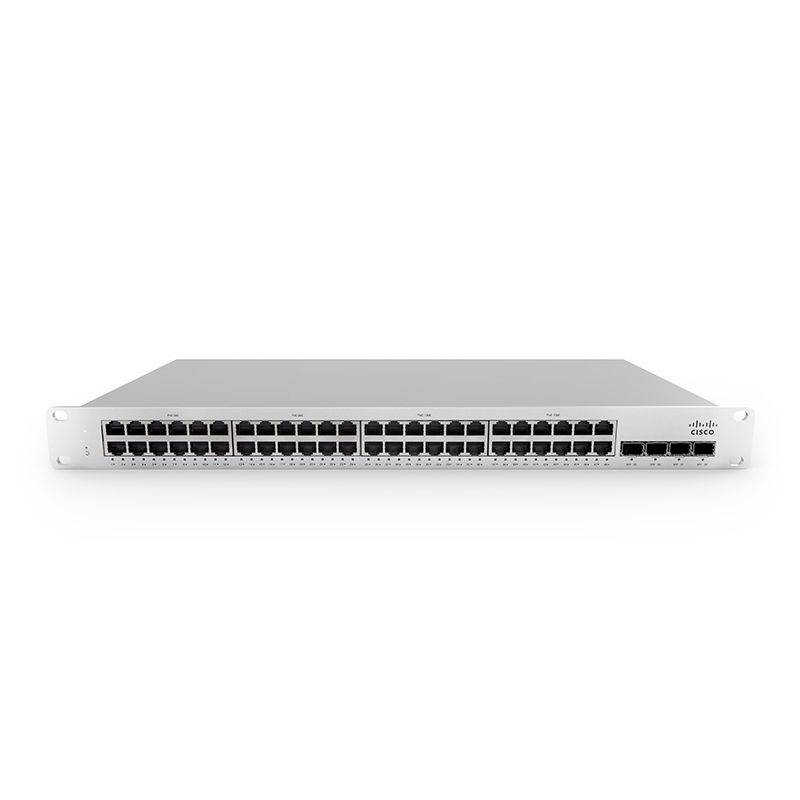

MS210-48-HW, Cisco Meraki MS210 Switch, 48x1G RJ45/L2 Cloud Managed/No Fan & PSU

SKU: MS210-48-HW · MPN: MS210-48-HW · Category: Components

MS210-48-HW, Cisco Meraki MS210 Switch, 48x1G RJ45/L2 Cloud Managed/No Fan & PSU
Request for Quote
In Stock • 10 units

Meraki MS210-48 1G L2 Cld-Mngd 48x GigE Switch

View Power Supplies Products

Specifications

Power• Power input: 100 - 240 VAC, 47-63 Hz • Power consumption: 15 - 882W • RPS interface: Requires RPS-2300 chassis
Weight8.78 lb (3.98 kg)
Layer 3• Static routing • DHCP Relay
Mounting• Rack-mountable with included rack mount hardware • Front-to-back airflow • Feature fanless operation
Security• Integrated two-factor authentication for Dashboard management • Role-based access control (RBAC) with granular device and configuration control • Corporate wide password policy enforcement • IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing • Multi-Domain/Multi-Host/Multi Authentication • Port security: Sticky MAC, MAC whitelisting • DHCP snooping, detection and blocking, Dynamic ARP Inspection • STP Enhancements: BPDU guard, Root guard, Loop guard • IPv4 and IPv6 ACLs
Stacking• Physical stacking of up to 8 switches with 80 Gbps stack bandwidth on all models • Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration • Stacking-compatible with the MS225
Dimensions1.72 x 19.08 x 13.38” (4.38 x 48.46 x 34cm)
Interfaces• 48 x 10/100/1000BASE-T Ethernet RJ45 with auto negotiation and crossover detection (auto-MDIX crossover) • 4 x 1GbE SFP uplink • 2 x stacking ports • RJ45 Management port
Management• Managed via the Web with the Meraki cloud management platform • Integrated with Meraki Wireless and complete portfolio of IT products and solutions • Zero-touch remote provisioning (no staging needed) • Detailed historical per-port and per-client usage statistics • DHCP, client, and hostname fingerprinting • SNMPd and SYSLOG support for integration with other network management solutions • Automatic firmware upgrades with scheduling control
Regulatory• CSA-US (US, Canada) • FCC (USA) • IC (Canada) • CE (Europe) • RoHS • RCM (Australia/New Zealand)
Environment• Operating temperature: -5°C to 50°C • Humidity: 5 to 95% non-condensing
MTBF Ratings439,585
Forwarding rate77.38mpps
Remote Diagnostics• Email, SMS and Mobile push notification alerts • Cable testing and link failure detection with alerting • Live remote packet capture • Dynamic and interactive network discovery and topology • Combined event and configuration change logs with instant search
Stacking Bandwidth80G (dual interface)
Switching capacity176 Gbps
Available PoE+ PowerNo
What’s includedMounting screw kit
Idle / Full Load Power25 / 42 W
Supported Power SupplyExternal RPS
Power Supply ConfigurationFixed internal
Ethernet Switching Capabilities• 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping) • 802.1Q VLAN and trunking support for up to 4,094 VLANs • 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP) • Broadcast storm control • 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP) • 802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches • Port mirroring • IGMP snooping for multicast filtering • MAC forwarding entries: 32K
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this MS210-48-HW, Cisco Meraki MS210 Switch, 48x1G RJ45/L2 Cloud Managed/No Fan & PSU (MS210-48-HW) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This MS210-48-HW, Cisco Meraki MS210 Switch, 48x1G RJ45/L2 Cloud Managed/No Fan & PSU includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the MS210-48-HW, Cisco Meraki MS210 Switch, 48x1G RJ45/L2 Cloud Managed/No Fan & PSU compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the MS210-48-HW.
