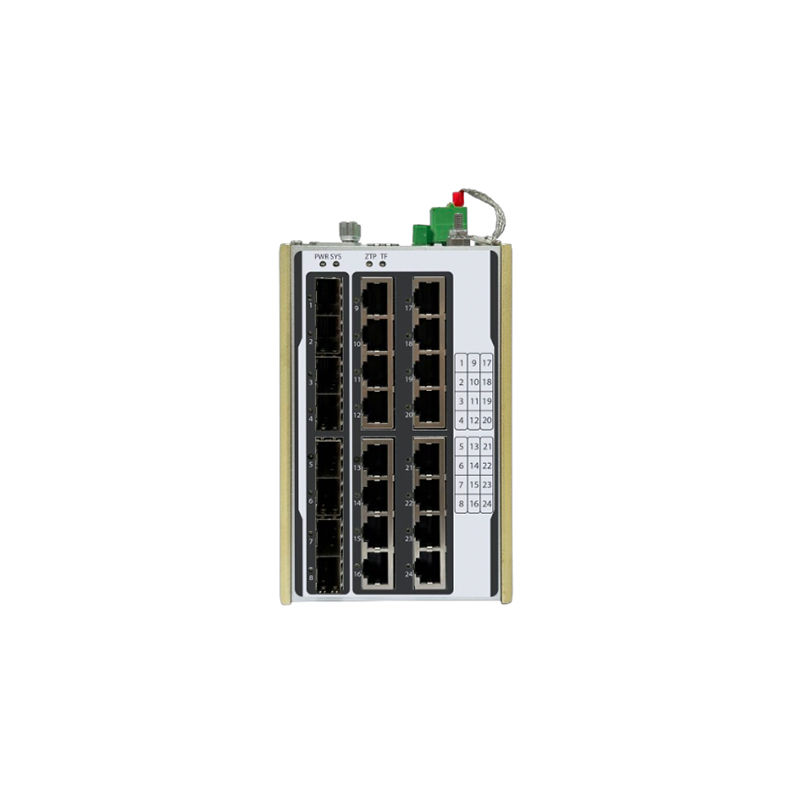

TCC4100-CU80G0, MRD TCC4100 Series Switch, 8xSFP 100/1000/2500BaseX/16xRJ45 10/100/1000BaseT
SKU: MRD:TCC4100-CU80G0 · MPN: MRD:TCC4100-CU80G0 · Category: Networking
TCC4100 Series 8 100/1000/2500BaseX SFP Ports and 16 10/100/1000BaseT Ports,
Specifications
| CPU | 333MHz RISC |
|---|---|
| EMI | FCC 47 CFR Part 15 Class A EN 55032 Class A EN 55035 Class A |
| EMS | IEC (EN)61000-4-2, Class 4 IEC (EN)61000-4-4, Class 3 IEC (EN)61000-4-5, Class 4 IEC (EN)61000-4-8, Class 5 IEC (EN)61000-4-11, Class 4 IEC (EN)61000-4-12, Class 3 |
| MTBF | ≥600,000H |
| Shock | IEC 60068-2-27 |
| Others | 4K VLANS, IPv4/IPv6 multi-cast, storm control, MC/BC protection, support Jumbo Frame |
| Weight | 1.4 kg |
| Housing | Aluminum Alloy Housing |
| Freefall | IEC 60068-2-31 |
| IP Rating | IP40; |
| Vibration | IEC 60068-2-6 |
| Connection | 5-pin terminal block |
| Redundancy | MRD-Ring®, MRP, RSTP, port trunking |
| Installasion | DIN-Rail |
| Circuit Board | Approved by IPC |
| Exchange Rate | 148,800 pps/100M; 1,488,000 pps/1000 M; |
| Input Voltage | 18~300VDC or 90~264VAC |
| Rail Industry | EN50155; IEC/EN61373; EN50121 |
| Diagnosis Mode | Indicator light, journal file, relay, RMON, port mirroring, TRAP |
| Hazardous Area | UL/cUL1604 Class 1 Div 2 (pending) |
| MAC Table Size | 16K |
| Power Industry | IEC61850-3 IEEE1613 (C37.90.x) |
| Product Safety | CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A |
| Management Mode | Web, serial port, STD-17 MIB-II, STD-58 SMIv2, STD-59 RMON, STD-62 SNMPv3, SNMPv2c, SNMPv1, RFC2668 MAU, RFC2925 Ping MIB, MRD Pri- vate MIBs, SSH, HTTPS, Telnet |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this TCC4100-CU80G0, MRD TCC4100 Series Switch, 8xSFP 100/1000/2500BaseX/16xRJ45 10/100/1000BaseT (MRD:TCC4100-CU80G0) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This TCC4100-CU80G0, MRD TCC4100 Series Switch, 8xSFP 100/1000/2500BaseX/16xRJ45 10/100/1000BaseT includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the TCC4100-CU80G0, MRD TCC4100 Series Switch, 8xSFP 100/1000/2500BaseX/16xRJ45 10/100/1000BaseT compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the MRD:TCC4100-CU80G0.
