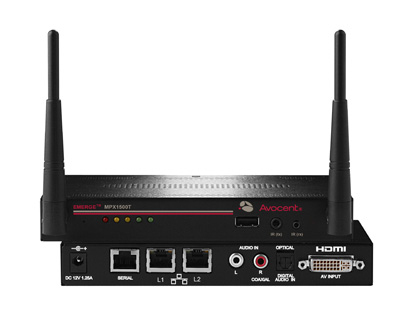

Vertiv Avocent MPX1500 KVM switch Black
Brand: Vertiv · SKU: MPX1500T-201 · MPN: MPX1500T-201 · Category: Data Center
Specifications
| Weight | 640 g |
|---|---|
| DC-in jack | Yes |
| Certification | FCC Class B, UL, cUL, RoHS, CE, ICES-003, WEEE |
| Input voltage | 12 V |
| LED indicators | Yes |
| Product colour | Black |
| Video port type | HDMI/DVI-I |
| Headphone outputs | 2 |
| Dimensions (WxDxH) | 176 x 116 x 25.4 mm |
| Power requirements | 100 - 240 VAC |
| Networking standards | IEEE 802.3 |
| External power adapter | Yes |
| Connectivity technology | Wired & Wireless |
| Storage temperature (T-T) | -20 - 60 °C |
| Ethernet LAN (RJ-45) ports | 2 |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Warranty | 3-Year Warranty |
| Weight | 640 g |
Product Description
Extend high-definition (HD) video and audio in a wired or wireless configuration from a source to one or more destinations. The Emerge® MPX1500 multipoint extender provides true digital picture and sound content delivery to displays for presentation and digital signage applications. The Avocent Emerge MPX1500 multipoint extender provides wireless or wired connectivity for distribution of high-definition content from a source to one or more destinations. Emerge MPX transmitters and receivers work in unison to form a managed audio video extension network able to deliver a synchronized stream of high-definition computer graphics or video and associated audio from a source to as many as eight display devices. Display device control information, content protection and interactive device control signals, including IR and serial are passed from source to sink through the extension network, providing a fully integrated solution. Ideal for professional high-definition media applications, the MPX1500 transmitter and receiver feature a universal media port based upon a locking digital video interface (DVI-I) connector. This media port allows for extension of digital and analog media formats, including: DVI-D, HDMI, DVI-A, RGBHV or YPbPr signals. Embedded digital audio and unbalanced analog audio are both supported. The MPX system serves as a video splitter and a extender by wirelessly delivering audio and video to multiple displays up to 1000 feet away. All MPX extenders feature an on-board web server for ease of central management. For system control and configuration, the Emerge MPX extender solution is accessible through an on-board web server that allows browser-based configuration, status monitoring, and administration. The extenders allow for centralized control of attached audio-visual equipment through RS-232 serial and infrared interfaces. The Emerge MPX product is field upgradeable to support future functionality.
Key Features
Vertiv Avocent MPX1500. Video port type: HDMI/DVI-I. Networking standards: IEEE 802.3. Product colour: Black, Certification: FCC Class B, UL, cUL, RoHS, CE, ICES-003, WEEE. Input voltage: 12 V. Weight: 640 g
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Vertiv Avocent MPX1500 KVM switch Black (MPX1500T-201) is 100% genuine Vertiv hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Vertiv Avocent MPX1500 KVM switch Black includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Vertiv Avocent MPX1500 KVM switch Black compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the MPX1500T-201.
