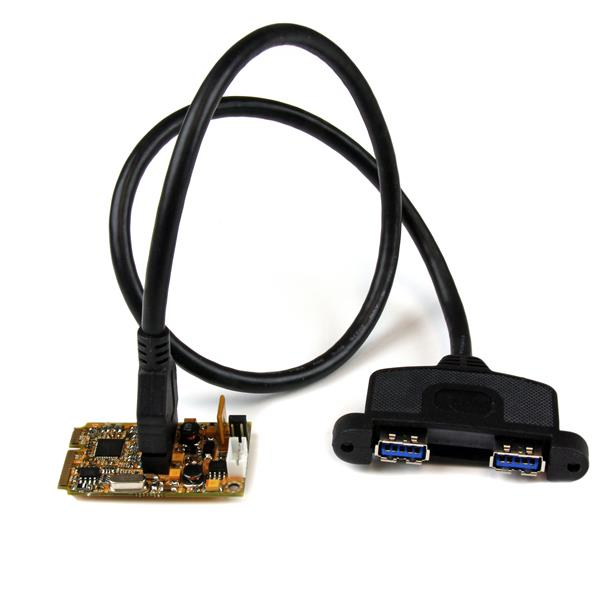

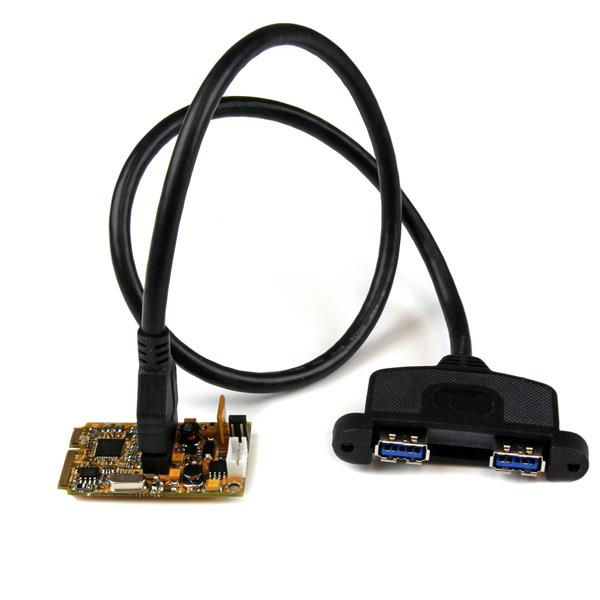

StarTech.com 2 Port SuperSpeed Mini PCI Express USB 3.0 Adapter Card w/ Bracket Kit and UASP Support
Brand: StarTech.com · SKU: MPEXUSB3S22B · MPN: MPEXUSB3S22B · Category: Components
StarTech.com 2 Port SuperSpeed Mini PCI Express USB 3.0 Adapter Card w/ Bracket Kit and UASP Support, PCIe, USB 3.2 Gen 1 (3.1 Gen 1), 1 x IDC, 1 x SP4, 1 x Mini PCI Express x1, 2 x USB 3.0 A, Black, FCC, CE, Renesas - uPD720202
Specifications
| Depth | 51 mm |
|---|---|
| Width | 30 mm |
| Weight | 61 g |
| Chipset | Renesas - uPD720202 |
| Internal | No |
| Cable length | 0.6 m |
| Connector(s) | 1 x IDC, 1 x SP4, 1 x Mini PCI Express x1, 2 x USB 3.0 A |
| Certification | FCC, CE |
| Package depth | 176 mm |
| Package width | 144 mm |
| Host interface | PCIe |
| Package height | 32 mm |
| Package weight | 207 g |
| Product colour | Black |
| Output interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Compliance certificates | RoHS |
| Data transfer rate (max) | 5 Gbit/s |
| Storage temperature (T-T) | -20 - 85 °C |
| Harmonized System (HS) code | 84733020 |
| Operating temperature (T-T) | 0 - 55 °C |
| Compliance industry standards | Intel xHCI |
| Server operating systems supported | Windows Server 2003, Windows Server 2003 x64, Windows Server 2008 R2 |
| Windows operating systems supported | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Warranty | 3-Year Warranty |
| Weight | 61 g |
| Dimensions | 30 mm x 51 mm |
Product Description
Add two USB 3.0 ports through a Mini PCI Express slot The MPEXUSB3S22B 2-Port Mini PCI Express USB 3.0 Card with Bracket Kit adds two external USB 3.0 ports to small form-factor systems, for connecting a variety of different peripherals. The card also includes optional standard and low profile brackets to fit a rear expansion bay if needed. The Mini PCIe USB 3.0 card supports the full SuperSpeed USB specification, with fast data transfer speeds (up to 5Gbps), as well as 900mA of power per port, making it a convenient addition for connecting your USB 3.0 peripheral devices. Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details. Using the Mini PCI Express (Mini Card) form factor and offering compliance with PCI Express Gen 2, this adapter card is designed for use in the latest small form factor computer systems, such as Mini-ITX or custom embedded solutions where a standard PCIe card would not fit. Backed by a StarTech.com 2-year warranty and free lifetime technical support. Improved Performance with UASP UASP is supported in Windows 8, Server 2012 and Linux kernel 2.6.3 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.0 at peak performance. At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources. Test results were obtained using an Intel Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive. The StarTech.com Advantage - Flexible installation with Mini PCIe compatibility and the included bracket kit - SuperSpeed USB 3.0 connectivity at up to 5 Gbps, while still backwards compatible with USB 2.0/1.x - Time-saving file transfers, up to 70% faster than traditional USB 3.0 when used with a UASP-supported enclosure
Key Features
StarTech.com 2 Port SuperSpeed Mini PCI Express USB 3.0 Adapter Card w/ Bracket Kit and UASP Support. Host interface: PCIe, Output interface: USB 3.2 Gen 1 (3.1 Gen 1), Connector(s): 1 x IDC, 1 x SP4, 1 x Mini PCI Express x1, 2 x USB 3.0 A. Product colour: Black, Certification: FCC, CE. Chipset: Renesas - uPD720202, Data transfer rate (max): 5 Gbit/s. Server operating systems supported: Windows Server 2003, Windows Server 2003 x64, Windows Server 2008 R2. Width: 30 mm, Depth: 51 mm, Weight: 61 g
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 2 Port SuperSpeed Mini PCI Express USB 3.0 Adapter Card w/ Bracket Kit and UASP Support (MPEXUSB3S22B) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 2 Port SuperSpeed Mini PCI Express USB 3.0 Adapter Card w/ Bracket Kit and UASP Support includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 2 Port SuperSpeed Mini PCI Express USB 3.0 Adapter Card w/ Bracket Kit and UASP Support compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the MPEXUSB3S22B.
