Brand: NVIDIA · SKU: MMA4Z00-NS400 · MPN: MMA4Z00-NS400 · Category: Networking

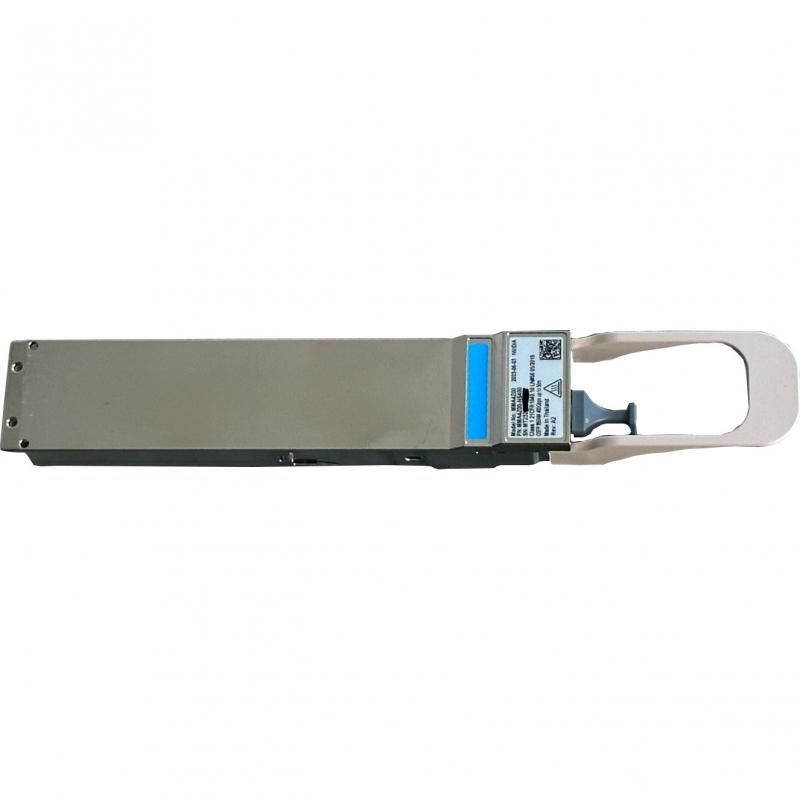

The NVIDIA MMA4Z00-NS400 is an InfiniBand (IB) and Ethernet (ETH) 400Gb/s, Single-port, OSFP, SR4 multimode parallel transceiver using a single, 4-channel MPO-12/APC optical connector. The Short Reach 4-channel (SR4) design uses 100G-PAM4 modulation and has a maximum fiber reach of 50-meters using OM4 multimode fiber and assumes two optical patch panels in the link. It has identical design and internals as the QSFP112 version, only with different connector shells (Flat Top). The transceiver firmware supports both InfiniBand and Ethernet and is automatically enabled depending on the protocol of the switch attached to. It is typically used in ConnectX-7/OSFP-based network cards and linked to Quantum-2 InfiniBand or Spectrum-4 Ethernet switches. The transceiver features Digital Diagnostic Monitoring (DDM) for monitoring supply voltage, temperature, and optical power levels.
| Reach | 50m (OM4) / 30m (OM3) |
|---|---|
| Protocol | InfiniBand NDR & 400G Ethernet |
| Data Rate | 400Gb/s |
| Media Type | Multi-Mode Fiber (MMF) |
| Modulation | 100G-PAM4 |
| Wavelength | 850nm |
| Form Factor | OSFP Flat Top |
| Connector Type | MPO-12/APC (Green) |
| Power Consumption | 8.5 Watts (Max) |
| Operating Temperature | 0°C to 70°C |
| Warranty | 1-Year Limited Warranty |
| Weight | 0.1 kg |
| Dimensions | 100.4mm x 22.58mm x 13.0mm |
NVIDIA MMA4Z00-NS400 is a high-performance 400Gb/s NDR InfiniBand and Ethernet OSFP transceiver designed for Short Reach (SR4) applications in AI/HPC clusters and modern data centers. It utilizes 4 lanes of 100G-PAM4 to achieve 400G throughput over multimode fiber. The module is hot-pluggable and compliant with OSFP MSA and CMIS 4.0 specifications.
Yes, this NVIDIA MMA4Z00-NS400 400Gb/s Single-port OSFP SR4 Multimode Transceiver (MMA4Z00-NS400) is 100% genuine NVIDIA hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This NVIDIA MMA4Z00-NS400 400Gb/s Single-port OSFP SR4 Multimode Transceiver includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the MMA4Z00-NS400.
