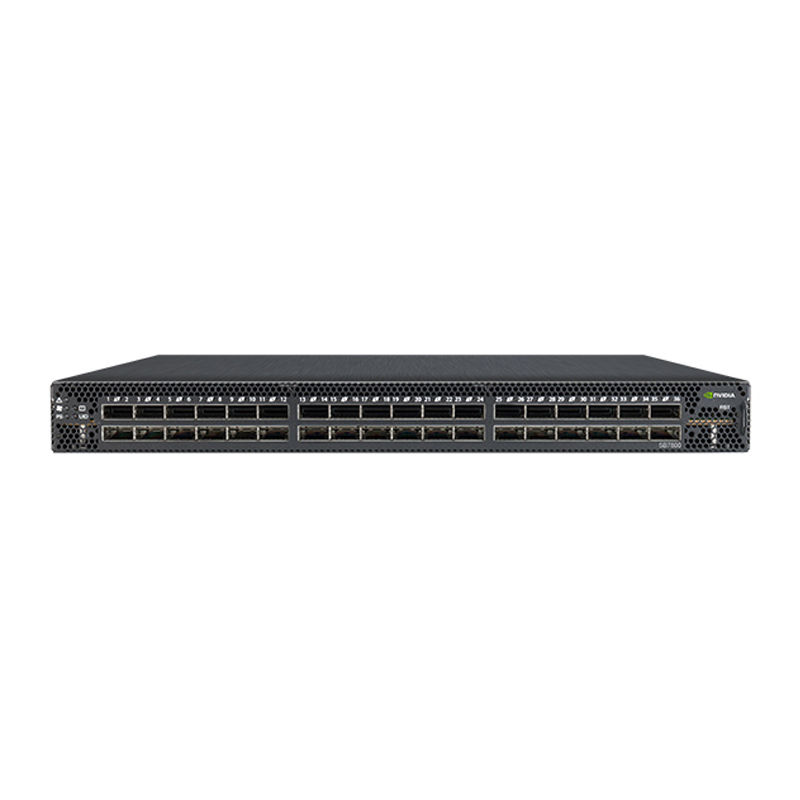

MSB7800-ES2R, NVIDIA Mellanox Switch, InfiniBand Switch, 36x100Gb/s QSFP28/2xAC PSU/1U Standard Depth
Brand: Mellanox · SKU: MLNX:MSB7800-ES2R · MPN: MLNX:MSB7800-ES2R · Category: Components
NVIDIA Mellanox Switch-IB 2-based 100Gb/s InfiniBand 1U switch, 36 QSFP28 ports, 2 power supplies (AC), x86 dual core, standard depth, C2P airflow, rail kit
Specifications
| CLI | Industry Standard |
|---|---|
| MTU | 256 to 4096 bytes |
| SNMP | v1, v2, v3 |
| Model | NVIDIA Mellanox MSB7800-ES2R |
| Cabling | Passive copper or active fiber cables; optical modules |
| Chassis | 19 in rack-mountable, 1U |
| Cooling | Front-to-rear or rear-to-front; hot-swappable fan unit |
| USB Port | 1 |
| Frequency | 50–60 Hz, single phase, 4.5 A, 2.9 A |
| Dimensions | 1.7 in (43.6 mm) H × 16.85 in (428 mm) W × 27 in (685.8 mm) D |
| Unit ID LED | Yes |
| Console Port | RS232 over DB9 |
| DHCP Support | Yes |
| Power Supply | Dual redundant slots, hot plug operation |
| Switch Ports | 36 QSFP28 non-blocking ports |
| Management IP | Supported |
| VL2VL Mapping | Supported |
| Virtual Lanes | 9 total (8 data + 1 management) |
| Port Error LED | Yes |
| IBTA Compliance | IBTA 1.21, 1.3 |
| Adaptive Routing | Supported |
| Port Status LEDs | Link, Activity |
| QSFP28 Connectors | Yes |
| Web UI Management | Yes |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MSB7800-ES2R, NVIDIA Mellanox Switch, InfiniBand Switch, 36x100Gb/s QSFP28/2xAC PSU/1U Standard Depth (MLNX:MSB7800-ES2R) is 100% genuine Mellanox hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MSB7800-ES2R, NVIDIA Mellanox Switch, InfiniBand Switch, 36x100Gb/s QSFP28/2xAC PSU/1U Standard Depth includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MSB7800-ES2R, NVIDIA Mellanox Switch, InfiniBand Switch, 36x100Gb/s QSFP28/2xAC PSU/1U Standard Depth compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the MLNX:MSB7800-ES2R.
