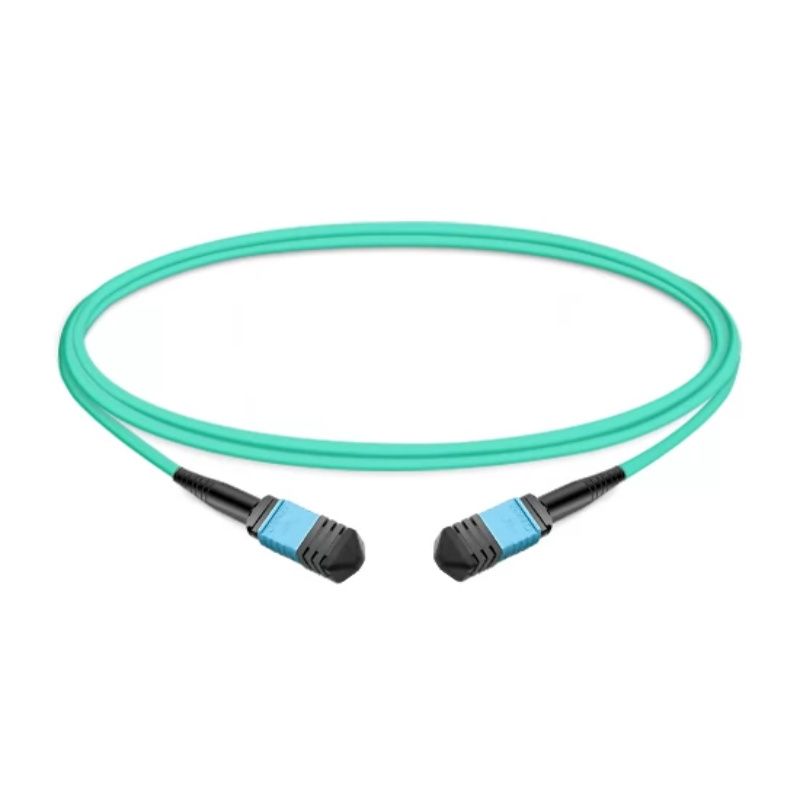

MFP7E10-N005, NVIDIA Mellanox MFP7E10 Series Cable, Passive MMF/5m/MPO12 APC
SKU: MLNX:MFP7E10-N005 · MPN: MLNX:MFP7E10-N005 · Category: Components
NVIDIA Mellanox passive fibercable, MMF, MPO12 APC to MPO12 APC, 5m
Specifications
| Cable Type | Multi-Mode Fiber (MMF) |
|---|---|
| Fiber Type | OM4 |
| Shelf Life | 25 Years |
| Fiber Count | 12 Fibers |
| Polish Type | APC (Angled Physical Contact) |
| Return Loss | ° 65 dB |
| Cable Length | 5 meters |
| Product Name | MFP7E10-N005 |
| Product Type | Passive Fiber Cable |
| Compatibility | NVIDIA Products |
| Rated Voltage | Not Applicable |
| Connector Type | MPO12 APC to MPO12 APC |
| Insertion Loss | 0.35 dB Typical |
| Outer Diameter | 3.0 mm |
| Jacket Material | LSZH (Low-Smoke Zero Halogen) |
| Compliant Standards | RoHS, REACH |
| Minimum Bend Radius | 7.5 mm (Dynamic), 15 mm (Static) |
| Storage Temperature | -40°C to 85°C |
| Insert/Remove Cycles | 500 times |
| Operating Temperature | -40°C to 70°C |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MFP7E10-N005, NVIDIA Mellanox MFP7E10 Series Cable, Passive MMF/5m/MPO12 APC (MLNX:MFP7E10-N005) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MFP7E10-N005, NVIDIA Mellanox MFP7E10 Series Cable, Passive MMF/5m/MPO12 APC includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MFP7E10-N005, NVIDIA Mellanox MFP7E10 Series Cable, Passive MMF/5m/MPO12 APC compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the MLNX:MFP7E10-N005.
