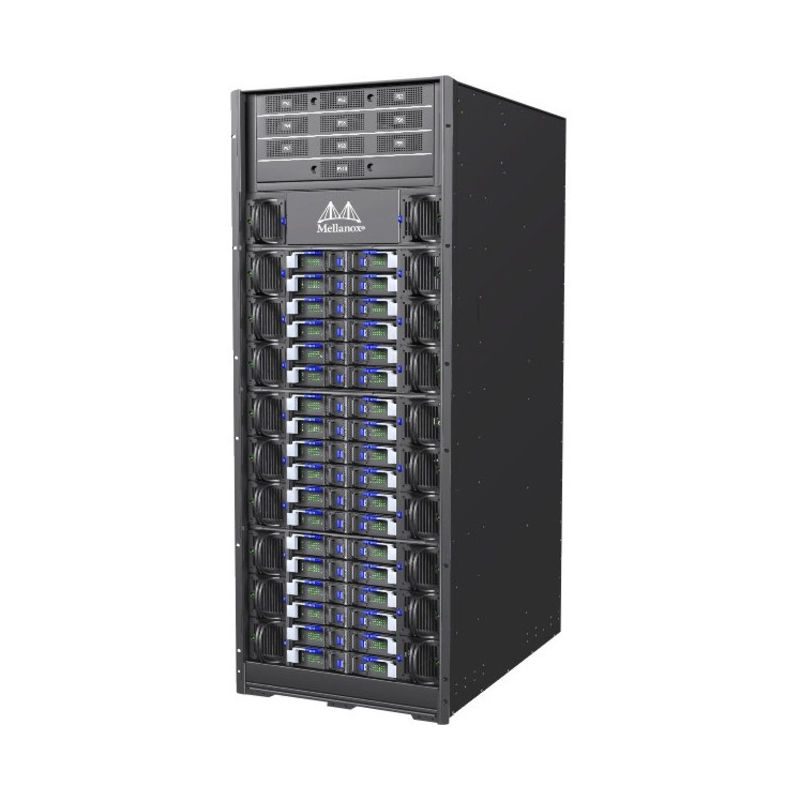

MCS7520, NVIDIA Mellanox MCS7520 Switch, 216x100Gb/s, 43Tb/s, 8 Fans 4 PSU
Brand: Mellanox · SKU: MLNX:MCS7520 · MPN: MLNX:MCS7520 · Category: Components
NVIDIA Mellanox 43Tb/s, 216-port 100Gb/s InfiniBand chassis switch, includes 8 fans and 4 power supplies (N+N)
Specifications
| Model | NVIDIA Mellanox MCS7520 |
|---|---|
| Cabling | Passive copper or active fiber cables; Optical modules supported |
| Chassis | Mellanox CS7500 – 28U modular chassis |
| Cooling | Hot-swappable fan trays, Front-to-rear airflow, Auto-heat sensing fans |
| MTU Size | 256 to 4096 bytes |
| Connectors | QSFP28 connectors |
| Power Supply | Hot-swappable; N+N redundancy; Input: 180–265 VAC; Frequency: 47–63 Hz, single phase AC |
| Virtual Lanes | 9 total (8 data + 1 management) |
| Leaf Blade Ports | 36 × QSFP28 EDR 100Gb/s InfiniBand per leaf blade |
| Management Ports | DHCP, Industry Standard CLI, Management over IPv6, Management IP, SNMP v1/v2/v3, Web UI |
| Fabric Management | On-board Subnet Manager supports up to 2,000 nodes; Unified Fabric Manager™ (UFM™) Agent |
| Status Indicators | Per port status LEDs (Link, Activity), System status LEDs (System, Fans, Power supplies), Port Error LED, Unit ID LED |
| Forwarding Database | 4 × 48K entry linear forwarding entries |
| Dimensions (H × W × D) | 48.96 in × 17.64 in × 30.3 in |
| Maximum Power Consumption | 13,531 W (including 648 QSFP ports at 3.5 W each) |
| InfiniBand Standards Compliance | IBTA 1.21 and 1.3 compliant |
| Typical Power Consumption (ATIS) | 6,367.1 W |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MCS7520, NVIDIA Mellanox MCS7520 Switch, 216x100Gb/s, 43Tb/s, 8 Fans 4 PSU (MLNX:MCS7520) is 100% genuine Mellanox hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MCS7520, NVIDIA Mellanox MCS7520 Switch, 216x100Gb/s, 43Tb/s, 8 Fans 4 PSU includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MCS7520, NVIDIA Mellanox MCS7520 Switch, 216x100Gb/s, 43Tb/s, 8 Fans 4 PSU compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the MLNX:MCS7520.
