Brand: Mellanox · SKU: MFS1S90-H030E · MPN: MFS1S90-H030E · Category: Networking

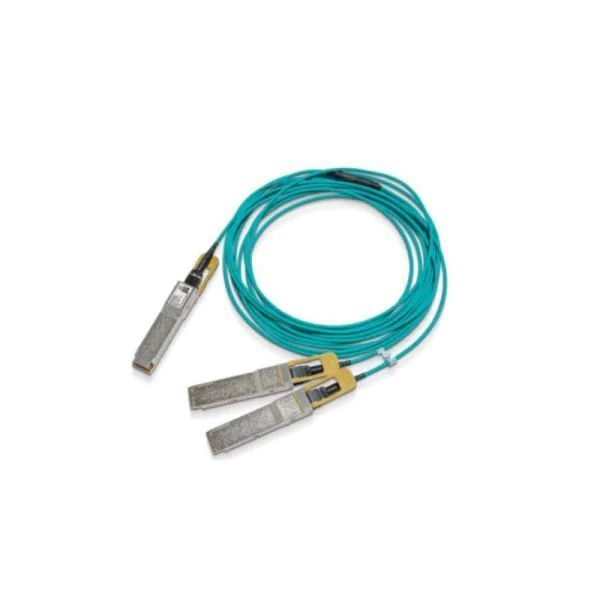

Mellanox® MFS1S90-H030E is a QSFP56 VCSEL-based active optical splitter cable (AOC) designed for use in 200Gb/s InfiniBand HDR (High Data Rate) systems. It provides cross-connectivity between a 200G Top of Rack (ToR) switch port configured as 2x100G ports and two 200G spine switch ports also configured as 2x100G ports. This offers a substantial CAPEX saving by reducing the required number of spine ports and cables. The cable supports IBTA InfiniBand HDR and HDR100, features 4x 50Gb/s PAM4 modulation, and has a Bit Error Rate (BER) better than 1E-15 with Mellanox systems. It is compliant with SFF-8665 for the QSFP56 port and SFF-8636 for the I2C management interface. The cable has a length tolerance of +500mm / -0mm for lengths between 5m and 50m, and a minimum bend radius of 30mm. It operates with a single 3.3V power supply and has a typical power dissipation of 4.35W per end. The cable is hot pluggable and RoHS compliant. Rigorous production testing ensures performance and durability.
| BER | better than 1E-15 |
|---|---|
| Diameter | 3 ± 0.2 mm |
| Compliance | SFF-8665, SFF-8636, IBTA InfiniBand HDR, RoHS |
| Modulation | 4x 50Gb/s PAM4 |
| Bend Radius | 30 mm |
| Cable Color | Aqua |
| Connector 1 | 2x QSFP56 |
| Connector 2 | 2x QSFP56 |
| Part Number | MFS1S90-H030E |
| Cable Length | 30 m |
| Power Supply | Single 3.3V |
| Power Dissipation | 4.35W (typical, each end) |
| Data Transfer Rate | 200 Gbit/s |
| Warranty | 1-year limited hardware warranty |
| Weight | 1 lbs |
| Dimensions | 30m cable length |
Mellanox MFS1S90-H030E is a 30-meter active optical splitter cable designed for 200Gb/s InfiniBand HDR systems. It facilitates cross-connectivity between switch ports, allowing for a reduction in spine ports and cables. Key features include QSFP56 connectors, 4x 50Gb/s PAM4 modulation, and a BER better than 1E-15.
Yes, this 2x200Gb/s to 2x200Gb/s (2xQSFP56 to 2xQSFP56) MMF Active Optical Cross Connect Splitter H-Cable (MFS1S90-H030E) is 100% genuine Mellanox hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This 2x200Gb/s to 2x200Gb/s (2xQSFP56 to 2xQSFP56) MMF Active Optical Cross Connect Splitter H-Cable includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the MFS1S90-H030E.
