Brand: Dell · SKU: MD1200 · MPN: MD1200 · Category: Storage

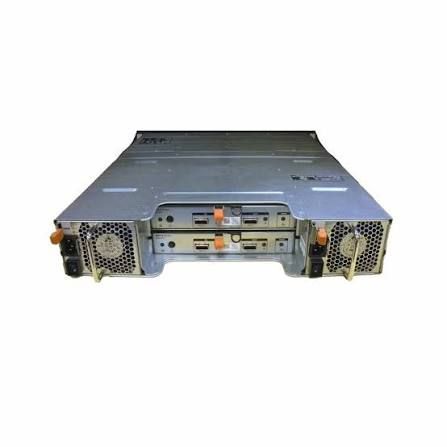

The Dell PowerVault MD1200 is a second-generation, low-cost, high-capacity direct-attached storage (DAS) expansion enclosure designed to improve density, versatility, and performance for mainstream and capacity-intensive applications. It supports up to twelve (12) hot-pluggable SAS Hard Disk Drives (HDDs) or SAS Solid State Drives (SSDs) in either 3.5-inch (LFF) or 2.5-inch (SFF) form factors (2.5-inch drives require 3.5-inch carriers) in a 2U array. It offers seamless expansion for Dell PowerEdge servers utilizing the PERC H800 HostRAID adapter. The system supports daisy-chaining up to 8 enclosures (4 per port) behind a single PERC H800, providing a maximum capacity of up to 96 drives (192TB with 4TB HDDs). It features redundant hot-plug power supplies (600W AC or 700W DC support) and redundant Enclosure Management Modules (EMMs) for high availability, supporting Unified or Split mode connectivity. It also supports Self-Encrypting Drives (SED).
| Drive Bays | Up to twelve (12) hot-pluggable 3.5" SAS HDDs/SSDs or 2.5" SAS HDDs/SSDs (in 3.5" carriers) |
|---|---|
| Management | Dual Redundant Enclosure Management Modules (EMMs), supports Unified and Split modes |
| Form Factor | 2U Rack Mountable |
| Host Interface | 6Gb/s SAS (SAS 2.0) via external x4 SAS ports (SFF 8088) |
| Power Supplies | Two redundant hot-plug PSUs (600W AC / 700W DC support) |
| Host Connectivity | Requires PERC H800 or H810 HostRAID adapter |
| Maximum Expansion | Up to 8 enclosures per PERC H800 (4 enclosures per port) |
| Maximum Capacity (3.5") | Up to 48TB (using twelve 4TB 7.2K rpm HDDs) |
| RAID Support (via PERC H800) | 0, 1, 5, 6, 10, 50, and 60 |
| Warranty | Varies by seller/condition (e.g., 1 Year on some refurbished units) |
| Weight | 8.84 kg (19.5 lb) (empty) to 28.39 kg (62.6 lb) (maximum configuration) |
| Dimensions | 8.7cm (3.41 inches) H x 44.6cm (17.57 inches) W x 60.20 cm (23.70 inches) D (approx) |
The Dell PowerVault MD1200 is a 2U direct-attached storage expansion enclosure offering high density and capacity flexibility for Dell PowerEdge servers. It supports both 3.5-inch and 2.5-inch SAS drives (HDD/SSD) simultaneously and connects via a PERC H800/H810 HostRAID adapter. Its redundant components and daisy-chaining capability allow for significant storage scalability.
Yes, this Dell PowerVault MD1200 Storage Enclosure (MD1200) is 100% genuine Dell hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Dell PowerVault MD1200 Storage Enclosure includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the MD1200.
