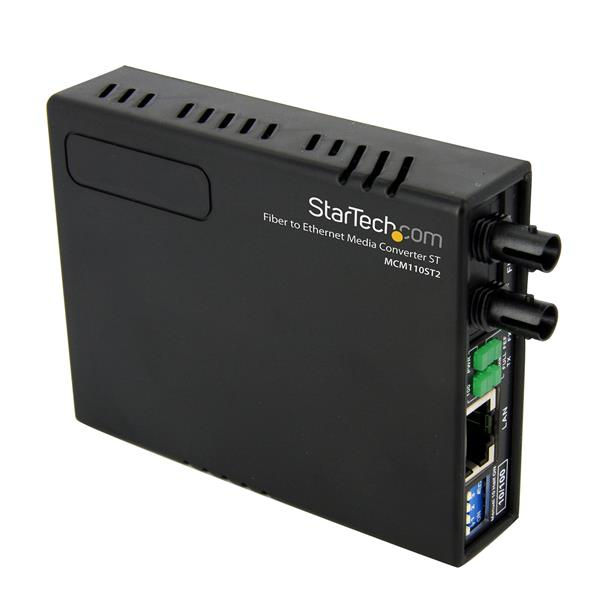

StarTech.com 10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km
Brand: StarTech.com · SKU: MCM110ST2EU · MPN: MCM110ST2EU · Category: Components
StarTech.com 10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km, 100 Mbit/s, IEEE 802.3, IEEE 802.3u, Full, Half, 2000 m, 1310 nm, ST. StarTech.com 10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km (part number MCM110ST2EU) is an enterprise components product available from Server Tech Central. Key specifications include depth 95 mm, width 75 mm, height 20 mm, weight 90.5 g, cable type Fiber optic, wavelength 1310 nm, duplex system Full, Half, input voltage 240 V. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 95 mm |
|---|---|
| Width | 75 mm |
| Height | 20 mm |
| Weight | 90.5 g |
| Cable type | Fiber optic |
| Wavelength | 1310 nm |
| Duplex system | Full, Half |
| Input voltage | 240 V |
| Package depth | 175 mm |
| Package width | 145 mm |
| Output current | 0.2 A |
| Package height | 65 mm |
| Package weight | 300 g |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Fiber optic connector | ST |
| Compliance certificates | RoHS |
| Maximum transfer distance | 2000 m |
| Storage temperature (T-T) | -10 - 70 °C |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum data transfer rate | 100 Mbit/s |
| Harmonized System (HS) code | 85176990 |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Warranty | 3-Year Warranty |
| Weight | 90.5 g |
| Dimensions | 75 mm x 95 mm x 20 mm |
Product Description
Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode ST fiber The MCM110ST2EU 10/100 Multi Mode ST Fiber Ethernet Media Converter (2 km) creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone. The ST media converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability. Easy to setup and install, this compact, value-conscious fast Ethernet media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off. Backed by a StarTech.com 2-year warranty and free lifetime technical support. The StarTech.com Advantage - Improve network scalability by increasing the distances between network points by up to 2km (Multi-mode) - Compact, lightweight enclosure is easily mounted or placed into any location with little to no configuration needed - Provides increased bandwidth and high data throughput by eliminating network bottlenecks and congestion
Key Features
StarTech.com 10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km. Maximum data transfer rate: 100 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3u, Duplex system: Full, Half. Maximum transfer distance: 2000 m, Wavelength: 1310 nm. Fiber optic connector: ST. Input voltage: 240 V, Output current: 0.2 A. Width: 75 mm, Depth: 95 mm, Height: 20 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km (MCM110ST2EU) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the MCM110ST2EU.
