Brand: Supermicro · SKU: MBD-X11DPI-N-O · MPN: MBD-X11DPI-N-O · Category: Servers

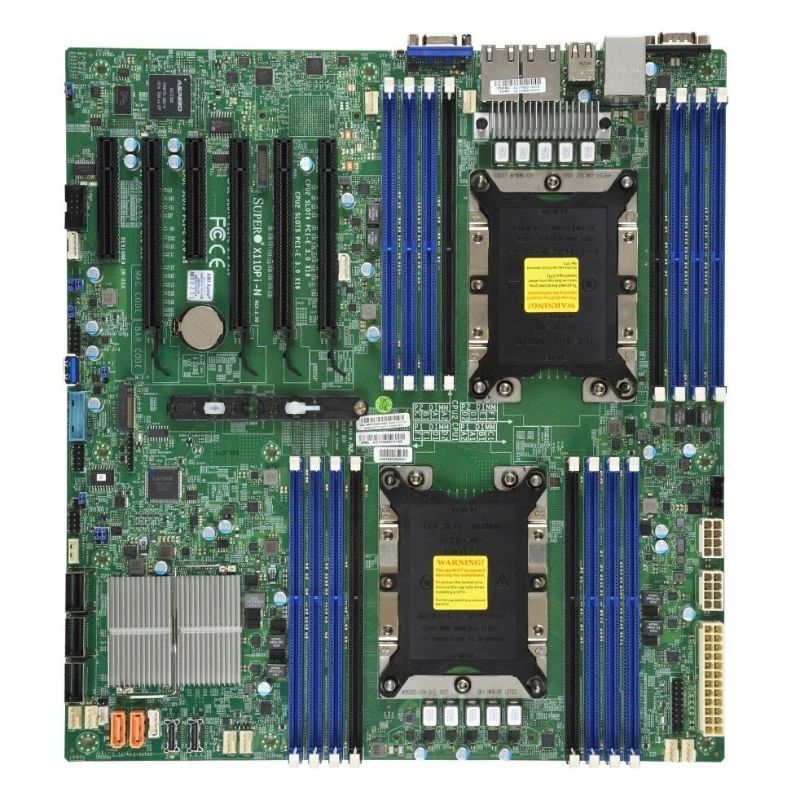

Supermicro X11DPI-N Server Motherboard featuring the Intel C621 Chipset and Dual Socket P (LGA 3647) for 2nd Gen and current Intel Xeon Scalable Processors. It supports up to 2TB (or up to 4TB with 3DS ECC RDIMM/LRDIMM, or up to 5TB with DCPMM modules) of DDR4 ECC memory across 16 DIMM slots at speeds up to 2666MHz (or 2933MHz depending on the specific configuration/processor). Expansion includes 4 PCI-E 3.0 x16 slots, 2 PCI-E 3.0 x8 slots, 2 internal PCIe 3.0 NVMe x4 ports, and 1 M.2 interface (PCI-E 3.0 x4, supporting 2260/2280/22110 form factors). Storage connectivity features 14 SATA3 (6 Gbps) ports with RAID 0, 1, 5, 10 support. Networking is handled by Dual LAN with GbE from C621. Onboard graphics are provided by the ASPEED AST2500 BMC, and it includes 7.1 channel audio support. The form factor is Extended ATX (12" x 13").
| Chipset | Intel C621 |
|---|---|
| M.2 Slots | 1 (PCI-E 3.0 x4) |
| SATA Ports | 14 x SATA3 (6 Gbps) |
| Form Factor | Extended ATX |
| Memory Type | DDR4 SDRAM ECC RDIMM/LRDIMM |
| Onboard LAN | Dual LAN with GbE |
| PCI-E Slots | 4 x PCIe 3.0 x16, 2 x PCIe 3.0 x8 |
| Memory Slots | 16 |
| RAID Support | RAID 0, 1, 5, 10 |
| Processor Socket | Socket P LGA-3647 |
| Max Memory Supported | 2 TB (or up to 4TB/5TB depending on module type) |
| Onboard Video Chipset | ASPEED AST2500 |
| Memory Speed Supported | 2666 / 2400 / 2133 MHz (up to 2933 MT/s with specific modules) |
| Total Processors Supported | 2 |
| Warranty | 1 Year (Parts) / 3 Years (Labor) |
| Weight | N/A |
| Dimensions | 12" x 13" |
The Supermicro X11DPI-N is a dual-socket server motherboard built on the Intel C621 chipset, designed for high-performance computing and general-purpose server applications using Intel Xeon Scalable Processors. It offers extensive memory support up to 2TB (or higher with specialized modules) across 16 DIMM slots and robust I/O with multiple PCIe 3.0 slots, including dedicated NVMe ports and an M.2 slot.
Yes, this Supermicro X11DPI-N Server Motherboard (MBD-X11DPI-N-O) is 100% genuine Supermicro hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Supermicro X11DPI-N Server Motherboard includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the MBD-X11DPI-N-O.
