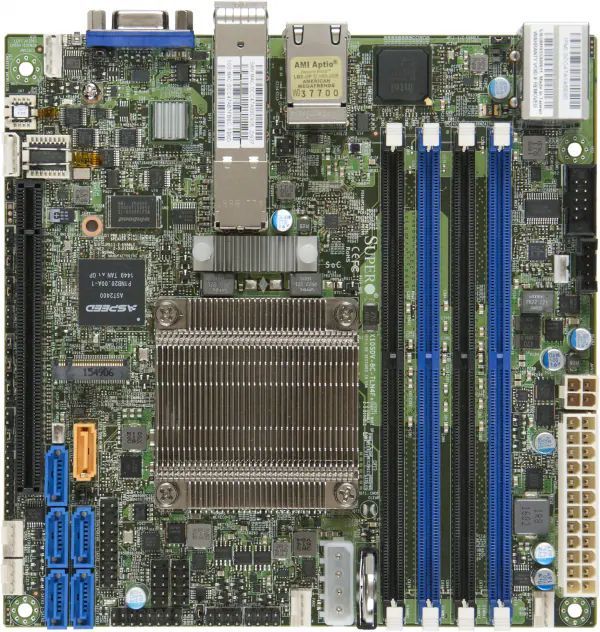

Supermicro X10SDV-12C-TLN4F+ Motherboard
Brand: Supermicro · SKU: MBD-X10SDV-12C-TLN4F+ · MPN: MBD-X10SDV-12C-TLN4F+ · Category: Components
Mini-ITX motherboard featuring an onboard Intel Xeon D-1557 processor (12 cores, 24 threads, 45W TDP). It includes 4 DIMM slots supporting up to 128GB ECC RDIMM DDR4 2133MHz or 64GB ECC/Non-ECC UDIMM. Networking includes dual 10GbE SFP+ ports, dual 1GbE LAN ports (Intel i350-AM2), and a dedicated IPMI LAN port. Storage interfaces feature 6 SATA3 (6Gbps) ports and one M.2 PCI-E 3.0 x4 slot. Expansion includes one PCI-E 3.0 x16 slot. Graphics are provided by the ASPEED AST2400 BMC. Power input supports both 12V DC input and standard ATX power sources. The form factor is Mini-ITX (6.7" x 6.7").
Specifications
| LAN | 2x 10G SFP+, 2x 1GbE (i350-AM2), 1x Dedicated IPMI LAN |
|---|---|
| Socket | FCBGA1667 (Onboard SoC) |
| Graphics | ASPEED AST2400 BMC |
| Processor | Onboard Intel Xeon D-1557 (12 Cores, 24 Threads, 45W TDP) |
| Max Memory | 128GB ECC RDIMM or 64GB ECC/Non-ECC UDIMM (4 Sockets) |
| SATA Ports | 6x SATA3 (6Gbps) |
| Form Factor | Mini-ITX |
| Memory Type | DDR4 ECC RDIMM/UDIMM (2133/1866/1600MHz) |
| RAID Support | 0, 1, 5, 10 (via SoC RSTe) |
| Expansion Slots | 1x PCI-E 3.0 x16, 1x M.2 PCI-E 3.0 x4 |
| Warranty | Standard Supermicro warranty (check retailer/Supermicro for specific duration). |
| Weight | N/A |
| Dimensions | 6.7" x 6.7" (17.02cm x 17.02cm) |
Key Features
The Supermicro X10SDV-12C-TLN4F+ is a Mini-ITX motherboard built around the Intel Xeon D-1557 System-on-Chip (SoC), offering 12 cores and 24 threads. It is designed for high-density, low-power server applications, featuring dual 10 Gigabit SFP+ ports for high-speed networking and support for up to 128GB of ECC memory. The inclusion of multiple networking options, extensive SATA connectivity, and a PCIe 3.0 x16 slot provides significant flexibility for storage and expansion within a small form factor.
