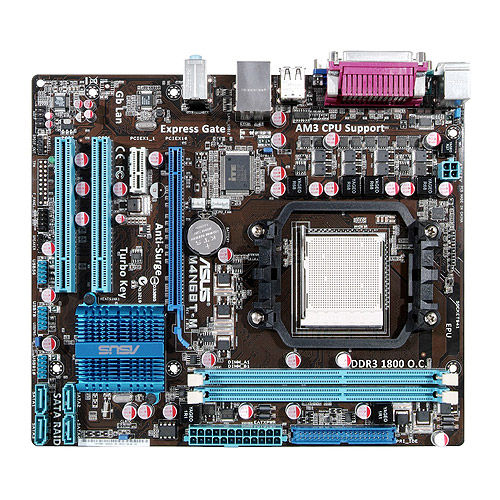

ASUS M4N68T-M motherboard Socket AM3 micro ATX
Brand: ASUS · SKU: M4N68T-M · MPN: M4N68T-M · Category: Components
ASUS M4N68T-M, AMD, Socket AM3, 8 GB, ECC & Non-ECC, 0, 1, 5, 10, JBOD, 256 MB. ASUS M4N68T-M motherboard Socket AM3 micro ATX (part number M4N68T-M) is an enterprise components product available from Server Tech Central. Key specifications include depth 208 mm, width 244 mm, bios type AMI, pci slots 2, audio chip VIA VT1708S, raid levels 0, 1, 5, 10, JBOD, bios memory size 64 Mbit, drivers included Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 208 mm |
|---|---|
| Width | 244 mm |
| BIOS type | AMI |
| PCI slots | 2 |
| Audio chip | VIA VT1708S |
| RAID levels | 0, 1, 5, 10, JBOD |
| BIOS memory size | 64 Mbit |
| Drivers included | Yes |
| Processor socket | Socket AM3 |
| CPU fan connector | Yes |
| Headphone outputs | 3 |
| Power source type | ATX |
| COM ports quantity | 1 |
| ECC сompatibility | ECC & Non-ECC |
| USB 2.0 connectors | 3 |
| Networking features | Gigabit Ethernet |
| PS/2 ports quantity | 2 |
| Power fan connector | Yes |
| PCI Express x1 slots | 1 |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 1 |
| Number of memory slots | 2 |
| On-board graphics card | Yes |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 208 mm |
Product Description
AMD Phenom II/Athlon II/ Sempron 100 Series Processors (socket AM3) This motherboard supports AMD Socket AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 1333 memory support and accelerates data transfer rate up to 2000MT/s via HyperTransport 1.0 based system bus. This motherboard also supports AMD CPUs in the new 45nm manufacturing process. Dual-Channel DDR3 1800(O.C.) This motherboard supports DDR3 1800(O.C.) that provides faster data transfer rate and more bandwith to increase memory computing efficiency, enhancing system performance in 3D graphics and other memory demanding applications. Gigabit Lan The on-board LAN controller is a highly integrated Gb LAN controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems.
Key Features
ASUS M4N68T-M. Processor manufacturer: AMD, Processor socket: Socket AM3. Maximum internal memory: 8 GB, ECC сompatibility: ECC & Non-ECC. RAID levels: 0, 1, 5, 10, JBOD. Maximum graphics card memory: 256 MB. Networking features: Gigabit Ethernet
